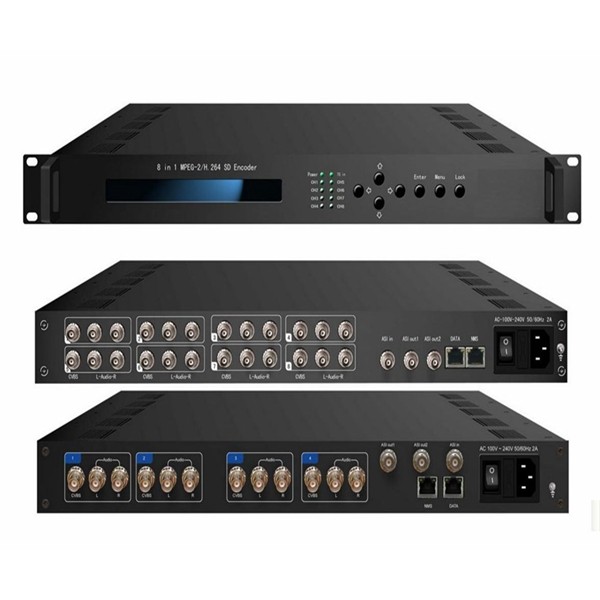

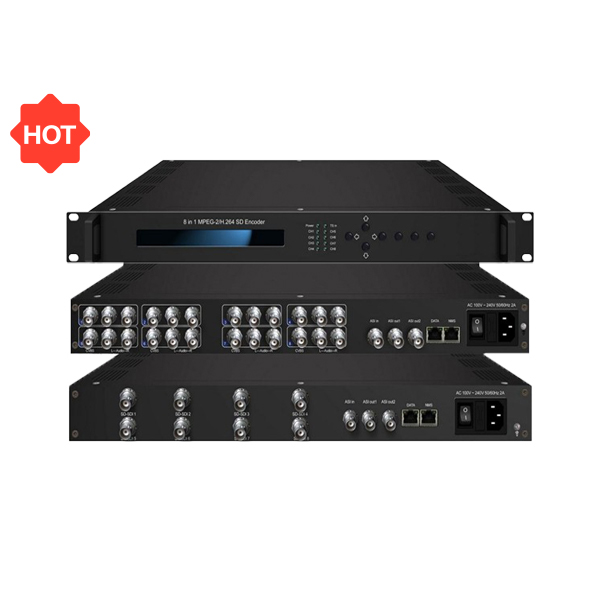

8 In 1 H.264 AV Encoder
8 In 1 H.264 AV Encoder 8 In 1 H.264 AV Encoder

8 In 1 H.264 AV Encoder

Product ID : STHD-5708
Product Tags :
Product Attributes :

Input: 8AV(CVBS) and 1 ASI

Output: 2ASI & MPTS/SPTS IP

Encoding: MPEG-2/H.264


Product Description

Outline

STHD-5708 8 in 1 (STHD-5704 4 in 1) MPEG-2/H.264 SD Encoder is our professional SD audio & video encoding and multiplexing device with powerful functionality. It has 8 (4) independent channels of video input interfaces supporting MPEG-2 and H.264 encoding, and 8 (4) pairs of unbalanced stereo audio inputs with MPEG-1 Audio layer 2, LC-AAC and HE-AAC encoding. In addition, it has an ASI input and can multiplex the input TS with the 8 (4) encoded SPTS to generate a MPTS output.


Key Features

*  Support 8 (4) CVBS input and 1 ASI Input for re-mux

*  Support H.264 & Mpeg2 video encoding

*  MPEG1 Audio Layer 2, LC-AAC and HE-AAC audio encoding

*  Support VBR/CBR video encoding

*  Support Low Latency function

*  Support PSI/SI editing and inserting

*  Supports MPTS or 8  (4) SPTS IP (UDP, RTP/RTSP) Output

*  Supports IP null packet filter

*  Real-time output bit-rate monitoring

*  LCD / keyboard and web NMS operation

*  Update device through NMS port

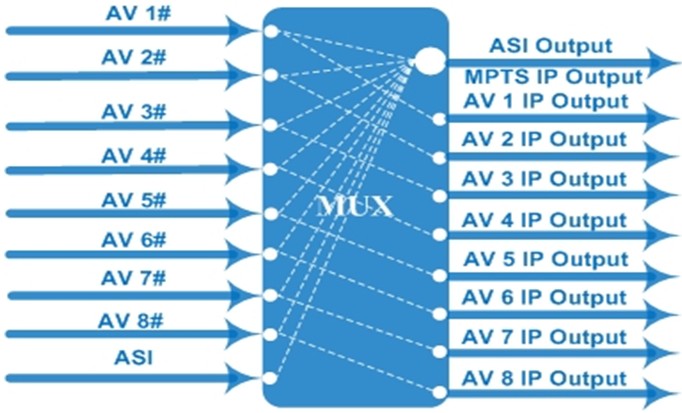

Principle Chart

Principle Chart of 8 In 1 H.264 AV Encoder

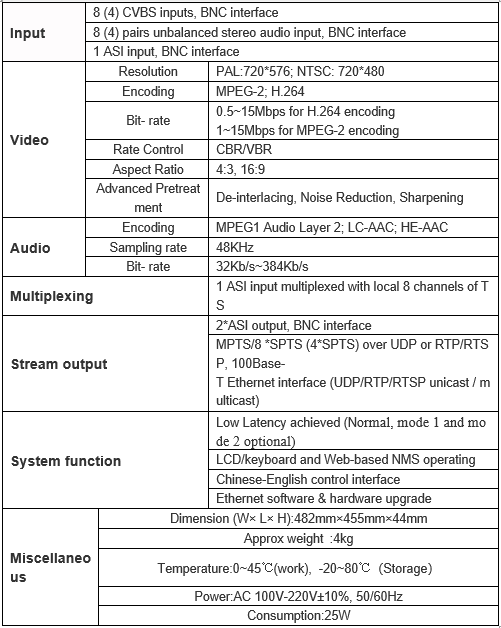

Technical Specifications

Technical Specifications of 8 In 1 H.264 AV Encoder
