DVB-T2 modulator
DVB-T2 modulator DVB-T2 modulator DVB-T2 modulator DVB-T2 modulator DVB-T2 modulator

DVB-T2 modulator

Product ID : STM-3500
Product Tags :
Product Attributes :
Input:1 channel TS input with 3 ports for backup
Input:TS over IP input (UDP); T2-MI over IP input (Option)
Output:DVB-T2 RF output
PLP Constellation: QPSK/16QAM/64QAM/256QAM (normal or rotated)
RF range:30~999Mhz, 1hz stepping
Product Description

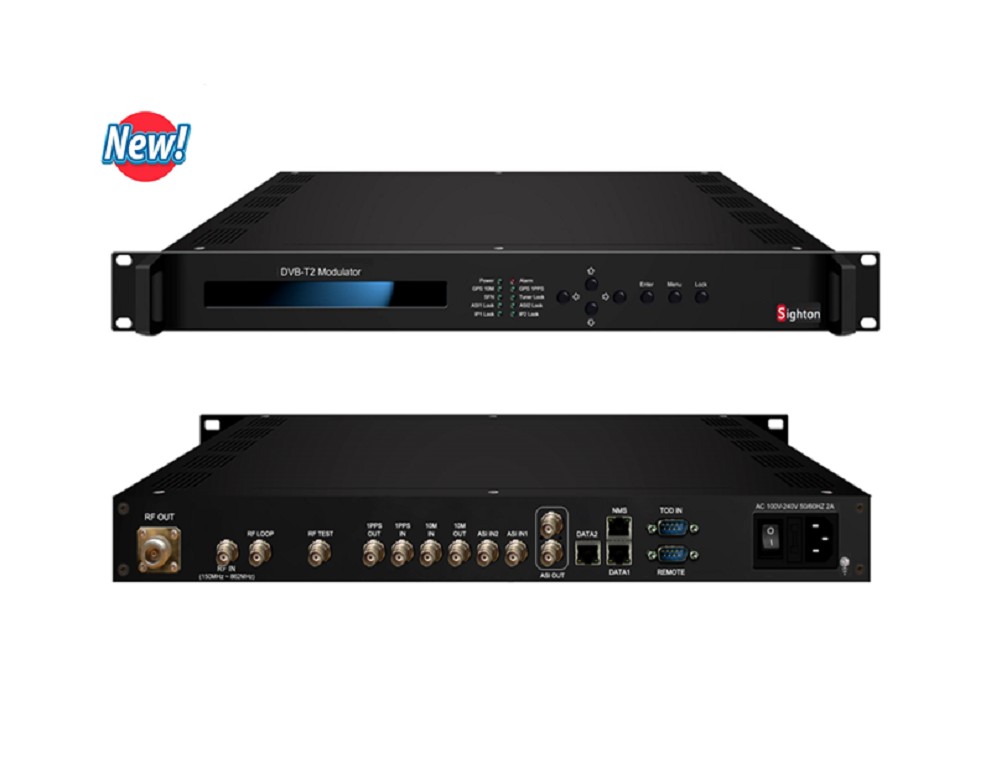

Outline

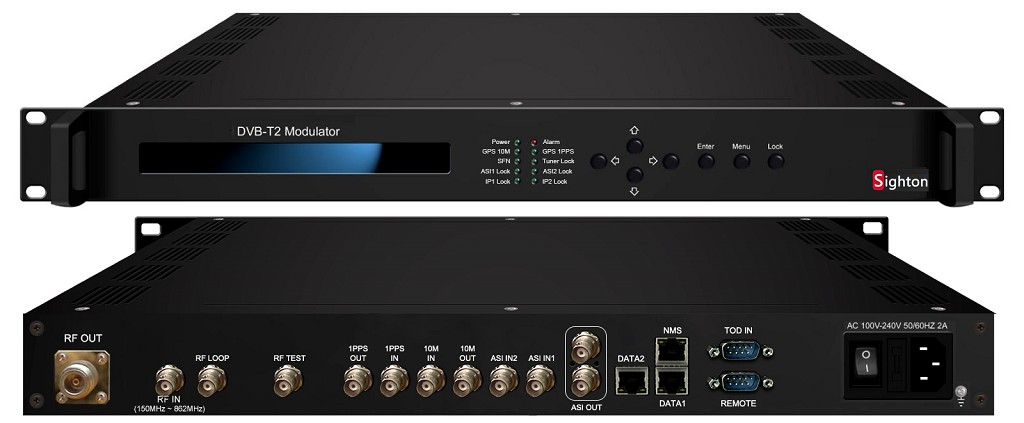

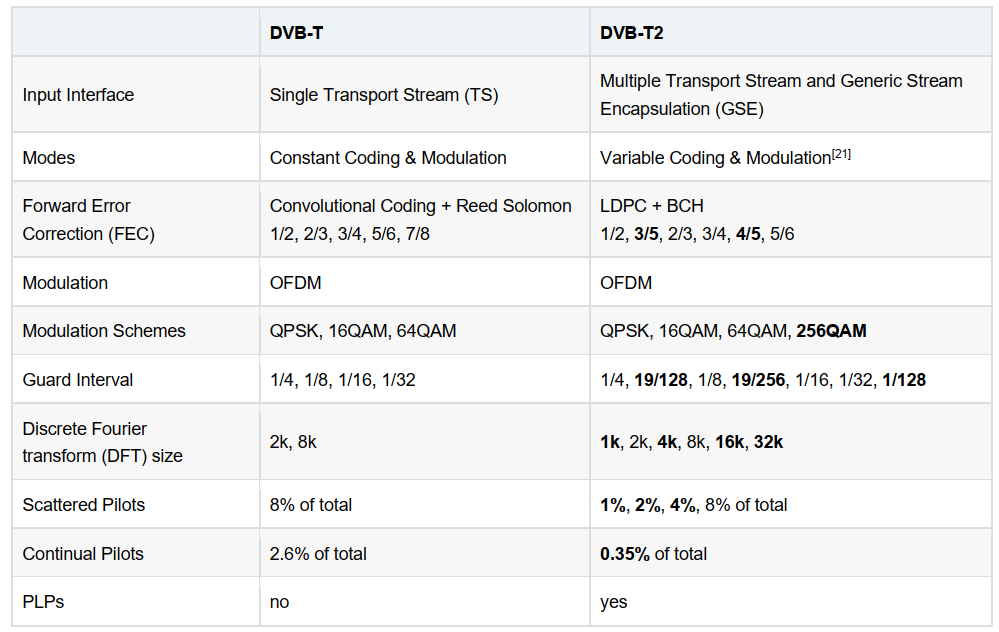

STM-1300 DVB-T2 modulator is our new product developed complying with the DVB-T2 standard. With its advanced modulating technology, this modulator can effectively make use of the ground spectrum resources and make it possible to provide reliable signals for fixed, mobile and portable devices. Compared with DVB-T, the channel capacity is increased by 30% under the similar carrier to noise ratio (CNR) threshold. DVB-T2 modulator also supports single-PLP and multi-PLP (option) to receive T2-MI from DVB-T2 gateway through its ASI and IP port. (This function is also option.)

Moreover, this device can be upgraded and controlled through network system, which allows it to be widely used in setting up digital broadcasting network and provide good signals for scientific laboratory and DVB-T2 STB.



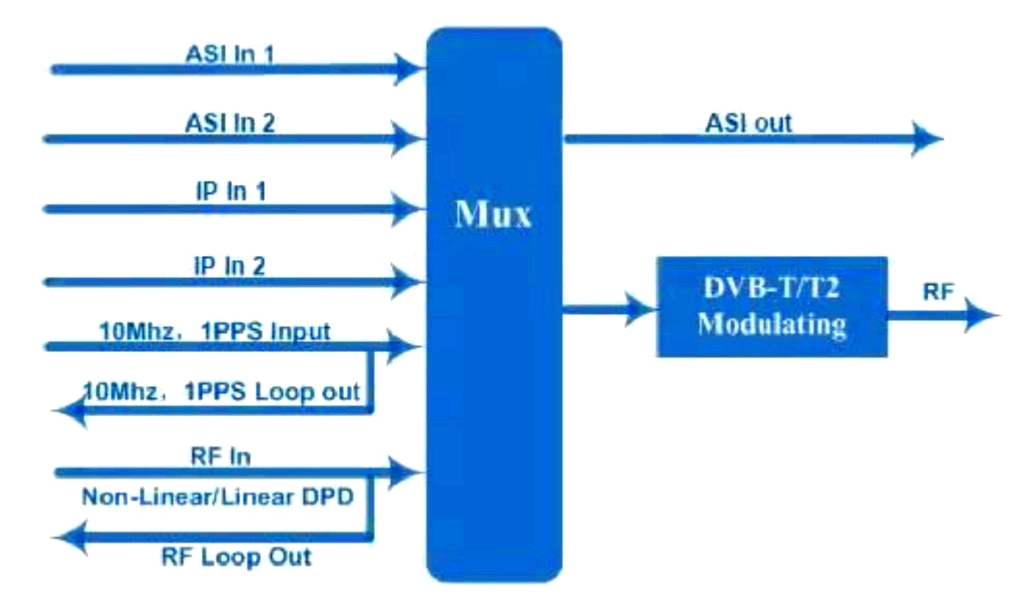

Features

1. Fully complying with EN302 755 standard

2. 4 ASI input ports (for 1 channel TS input with 3 ports for backup)

3. TS over IP input (UDP); T2-MI over IP input (Option)

4. 10MHz input/loop out, 1PPS input/loop out

5. DVB-T2 RF output

6. Supports single PLP, multi-PLP (Option)

7. Support MISO and SISO

8. Support QPSK/16QAM/64QAM/256QAM (normal or rotated)

9. Support TS format: T2-MI (Option) or TS (Mode A)

10. High performance output: MER>43dB, shoulder level>56dB

11. Output signal bandwidth: 5M, 6M, 7M, 8MHz

12. Support MFN and SFN (Option) net mode

13. Supports non-linear and linear digital pre-distortion (DPD) --->Video

14. RF output level: -25~+3 dBm, 0.1db stepping

14. Constant temperature crystal oscillator, as high as 0.1ppm stability

15. Support online upgrade

16. Keyboard operation and LCD display

17. Web Network management system (GUI)



Technical Parameter



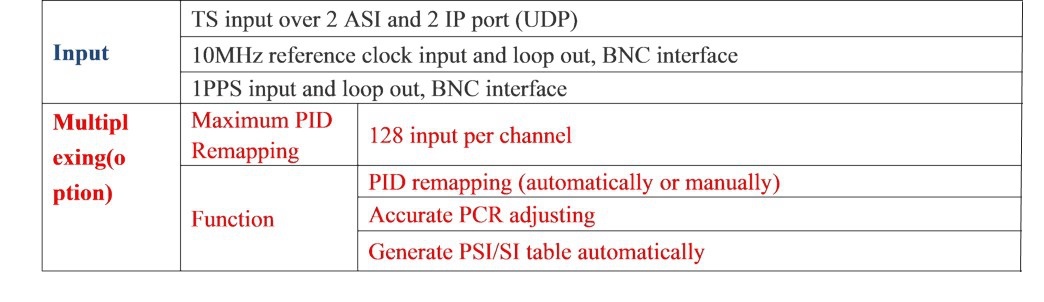

Input

T2MI input over ASI and IP (Option)

1000 Mbps Ethernet port -

100 Mbps Ethernet port

1 channel TS input over ASI, TS over IP port (UDP)

10MHz reference clock input and loop out, BNC interface

1PPS input and loop out, BNC interface

Modulation

Standard

EN302 755

Mode

Mode A: single-PLP;

Mode B: multiple-PLP (Option)

PLP Constellation

QPSK, 16QAM, 64QAM, 256QAM (Normal or Rotated)

L1 Post Constellations

BPSK, QPSK, 16QAM, 64QAM

FEC Length

Short(16K), Normal (64K)

FEC Rate

1/2, 3/5, 2/3, 3/4, 4/5, 5/6

Pilot Pattern

PP1 - PP8

Guard Interval

1/128, 1/32, 1/16, 19/256, 1/8, 19/128, 1/4

FFT Mode

1k, 2k, 4k

8k, 16k, 32k (normal or extended)

Bandwidth

5MHz, 6MHz, 7MHz, 8MHz

Net Mode

MFN, SFN (Option)

RF Out

Connector

N Type, 50ΩImpedance

RF range

30~999Mhz, 1hz stepping

Output level ATT

-25~+3 dBm, 0.1db stepping

MER

> 43db

Shoulder Level

>56dB

System

LCD display, keyboard and web Network management

Supporting software upgrading through network

General

Demission (W*L*H)

482mm×410mm×44mm

Weight

4.8kg

Temperature

0~45℃(operation),-20~80℃(storage)

Power supply

AC 220V±10%,50/60Hz

Power Consumption

34W
