ASI to IP(IP to ASI) Multiplexer
ASI to IP(IP to ASI) Multiplexer

ASI to IP(IP to ASI) Multiplexer

Product ID : ST-6708P
Product Tags :
Product Attributes :

Input: 4ASI & 2IP(x256)

Output: 4ASI &MPTS over UDP

Control: Web management

Product Description

Features

*  4 bi-direction ASI ports and 2 100/1000M Ethernet Port

*  Support maximum 4 ASI input and 256×2 IP input

*  Support accurate PCR adjusting

*  Support PID filtering, re-mapping

*  Support PSI/SI rebuilding and editing

*  Support maximum 4 ASI output and 4 IP(MPTS) output over UDP

*  Huge buffer memory for saving the overflowing code stream

*  Supporting to multiplex one program to all outputs

*  Alarming function

*  Web-based NMS management

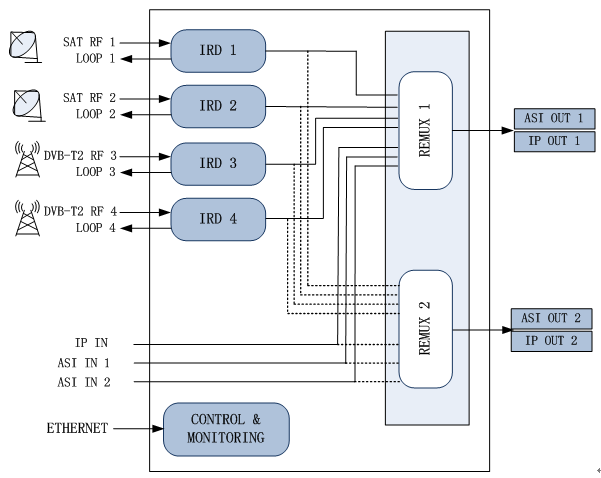

Principle Chart

Principle chart IP Multiplexer.jpg



Technical Parameter



Input interface

4 ASI bi-direction, BNC 75Ω

512 IP input through Ethernet Port

Re-multiplex

PID re-mapping

PCR accurate adjusting

Automatic generating PSI/SI table

Input

Packet format

204/188 self-adaption

Output

ASI

≤4 ASIMaximum   output bit-rate200MbpsEach   channel

IP

4 MPTS over UDP output (RJ45),   100/1000Mbps self-adaption.

PID

PID transparent

Any PID transparent and mapping   achievable

Amount of output PID (Per channel)

512

System

Web management:10/100M NMS port

Language: English and Chinese

Ethernet software upgrade

General

Dimensions

482mm×300mm×44mm (WxLxH)

Weight

3.5kg

Temperature

0~45(operation),   -20~80(storage)

Power supply

AC 110V±10%, 50/60Hz Or AC 220V±10%,   50/60Hz

Consumption

≤40W
