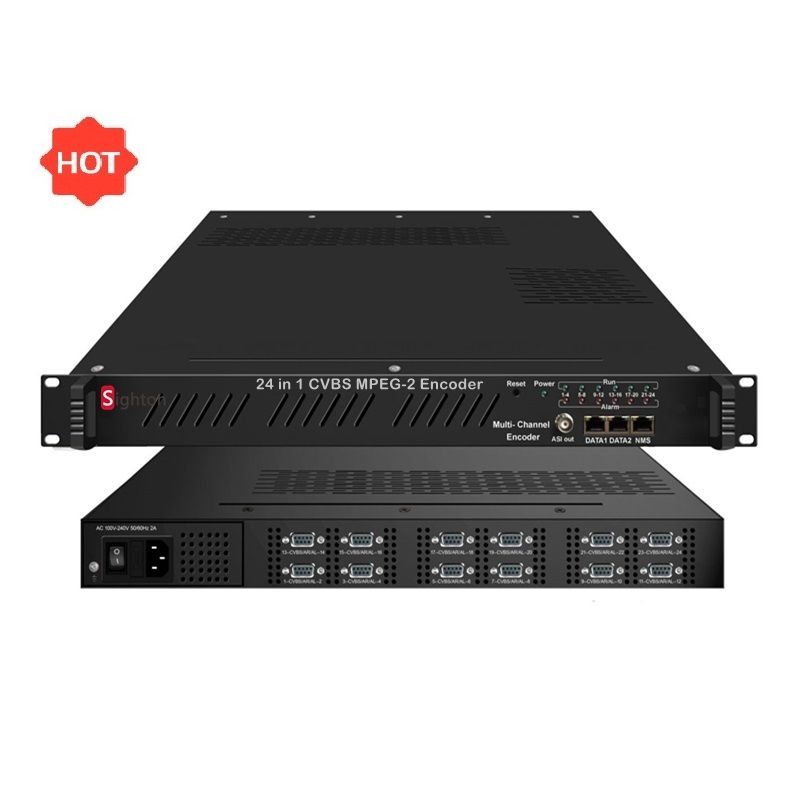

AV MPEG-2 Encoder(4~24 channels for options)

Outline

STSD-4500 Multi-Channel SD Encoder is a professional audio& video encoding and multiplexing device. It supports to convert 8/12/24CVBS video inputs to MPTS or SPTS IP output. To meet customers’various requirements, it is also equipped with 1ASI output for option as required. In conclusion, its high integrated and cost effective design makes the device widelyused in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.

Features

8/12 CVBS video inputs with 8/12 SPTS and 1 MPTS output through Data 1 or Data 2

24×CVBS video inputs with 24 SPTS or 1 MPTS output through Data 1 or Data 2

Supports PAL and NTSC SD video formats, MPEG-2 Video encoding

Support MPEG1 Layer II, AC3 (2.0) Audio encoding and support audio gain adjustment

Support CC (closed caption)

Support “Null PKT Filter” function

Support QR Code, Caption, Logo insertion

Support 1 ASI output (optional)

Support PID Remapping/PCR accurate adjusting/PSI/SI editing and inserting

Control via web management, and easy updates via web

Real-time effective encoding output bit-rate monitoring

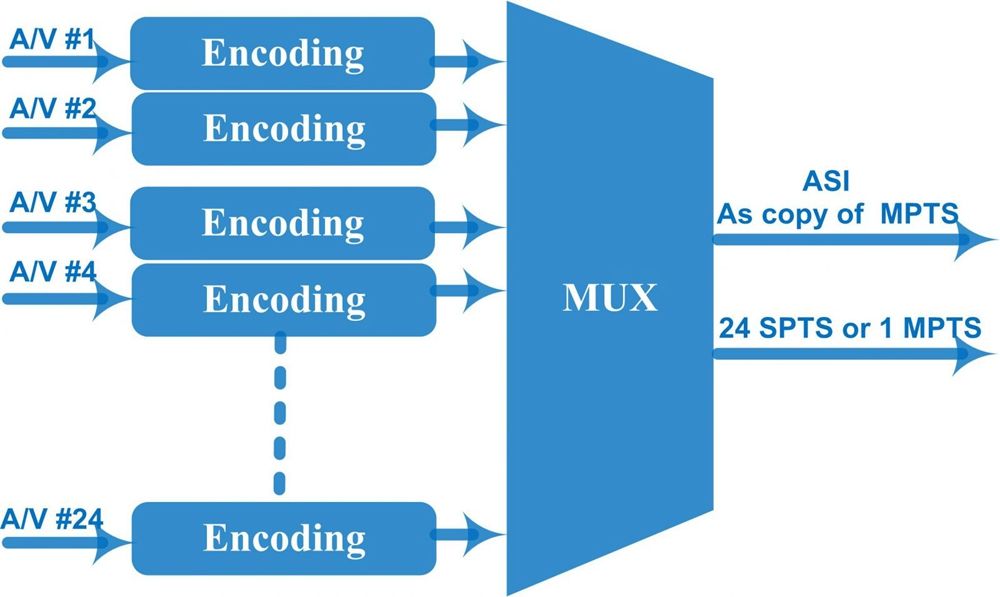

Principle Chart

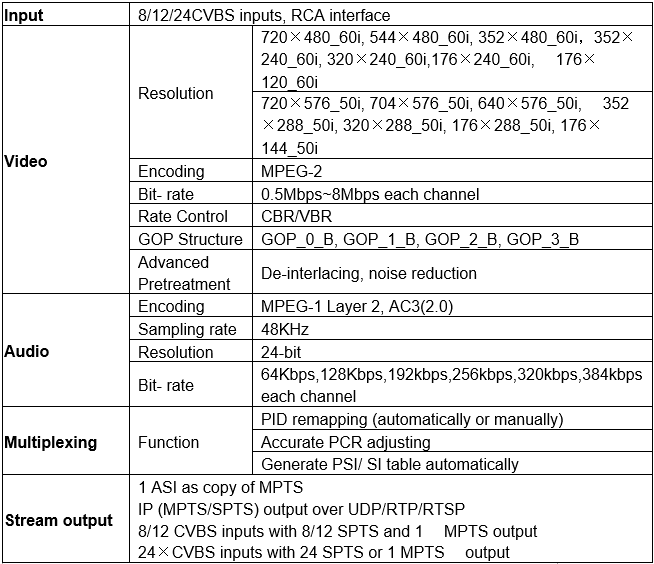

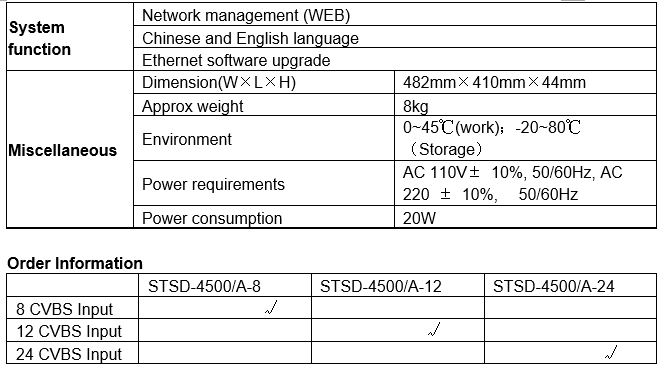

 Specification
