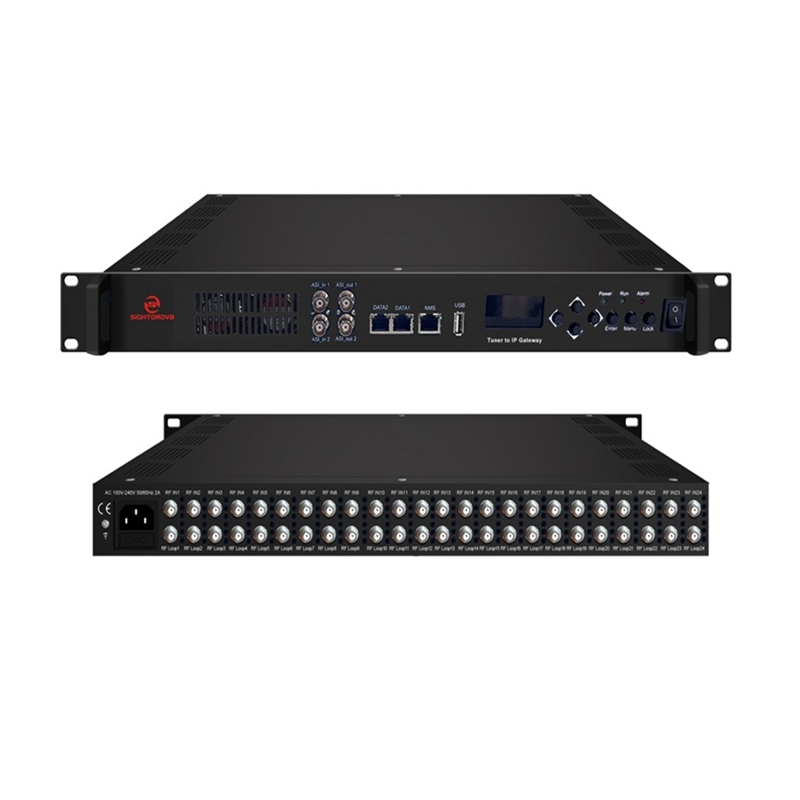

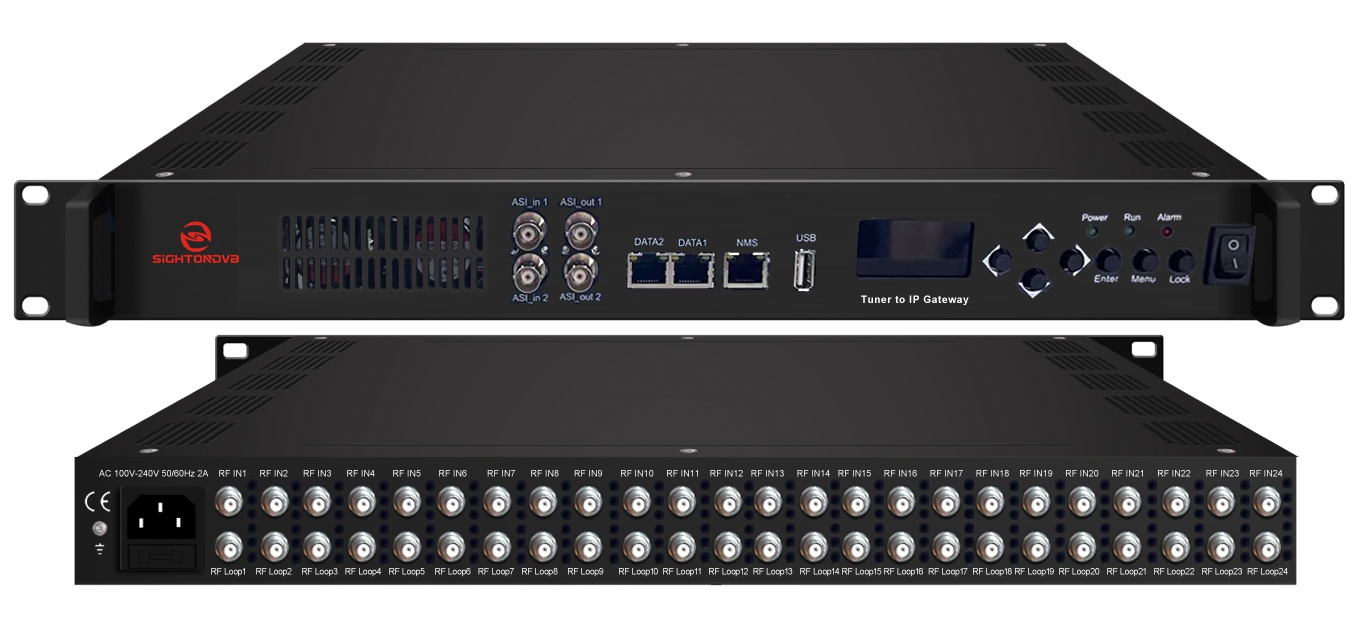

 USB to IP Gateway
 USB to IP Gateway

USB to IP Gateway

Product ID : ST3380-U
Product Attributes :

Input tuner: 16 or 24

Input: USB

Types of tuner: DVB S/S2/S2x/DVB C/ATSC/ISDBT/DVB T/T2

Output: 2ASI& 1024 SPTS IP or 27MPTS output

Product Description

Product Overview

ST3380-U Tuner to IP Gateway is a head-end interface-conversion device that supports MPTS and SPTS output switchable in Web GUI. It supports 24 MPTS+3 MPTS(2 ASI inputs and 1 USB input) or 1024 SPTS output over UDP and RTP/RTSP protocol. It is integrated with tuner demodulation (or ASI input) and gateway function, which can demodulate the signal from 24 FTA tuners into IP package, or directly convert the TS from ASI inputs or USB input into IP package, then output the IP package through different IP address and ports. BISS function is also embedded for tuner inputs to descramble the programs from tuner inputs.


Key Features

l Support 24 or 16 FTA DVB- S/S2/S2X or DVB-C/T/T2/ISDB-T Multi-Mode Switchable tuner inputs, 2 ASI inputs, 1USB input(TS file Playing, FTA 32, USB 2.0)

Support BISS descrambling

Support DisEqc function

24 MPTS+3 MPTS(2 ASI inputs and 1 USB port) or 1024 SPTS output (MPTS and SPTS output switchable in Web GUI)

2 DATA output ports (IP address and port number of DATA1 and DATA2 are different), up to 900Mbps---SPTS

2 independent DATA output ports, DATA1512 SPTS+ DATA2512 SPTS

MPTS is pass-through mode, the first 12 tuner-input signals will be outputted from DATA 1, the rest 12 tuner-input signals will be outputted from DATA 2; The output of 2 ASI-input signals and 1 USB-input signal can be chosen to output via DATA 1 or DATA 2

ASI out is useless in SPTS out mode, and ASI out can be the pass-through output of 2 input signals in MPTS out mode

Support PID filtering, and re-mapping (Only for SPTS output)

Support the “Null PKT Filter” function (Only for MPTS output)

Support Web operation, reboot in Web GUI after firmware upgrading

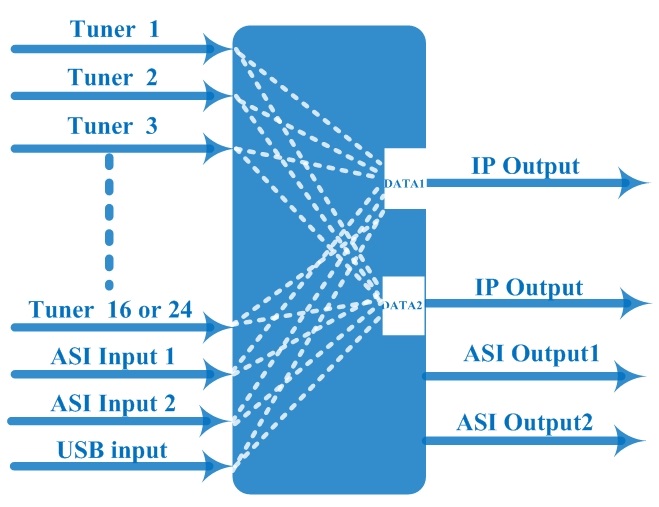

Principle Chart

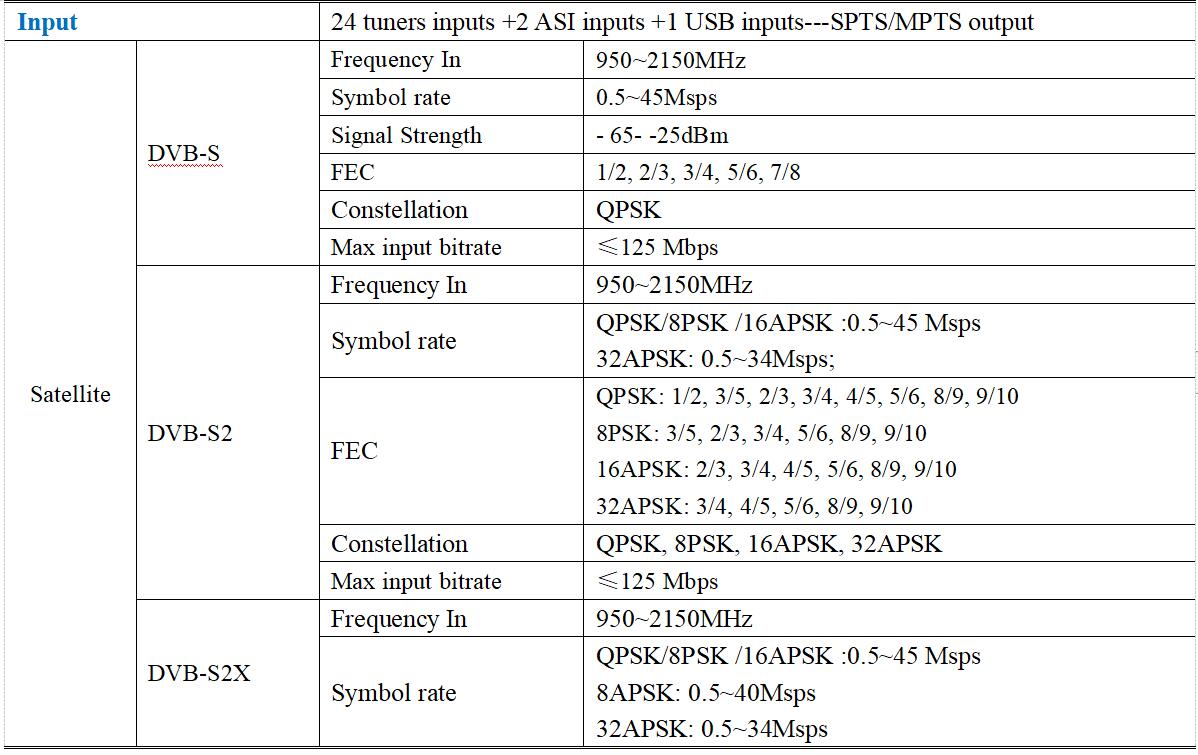

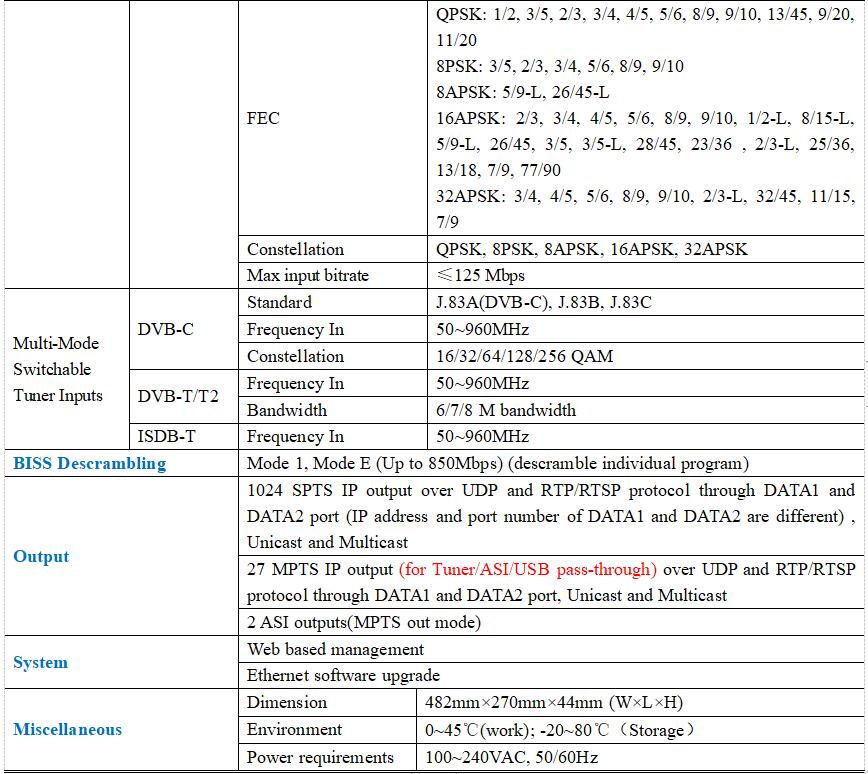

Technical Specification

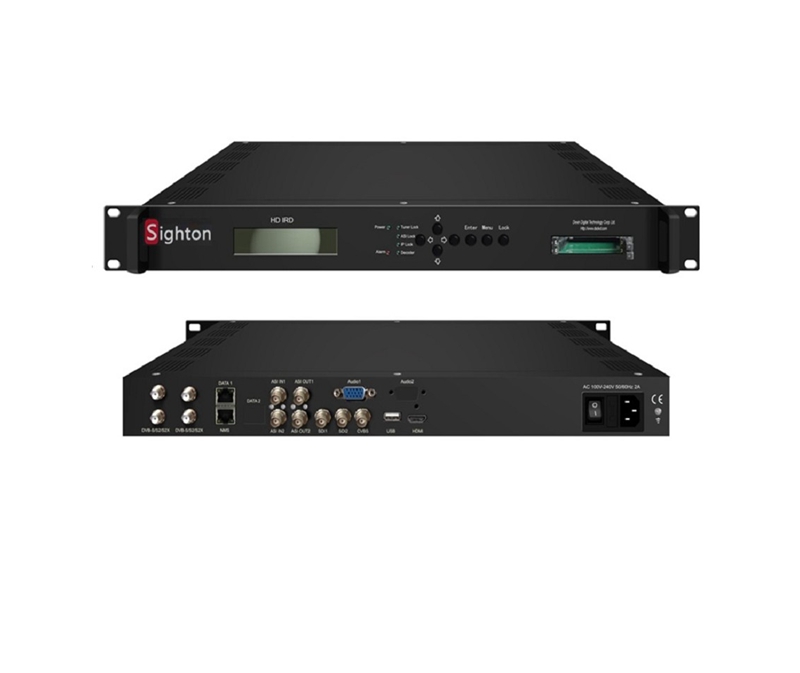

If programs are encrypted

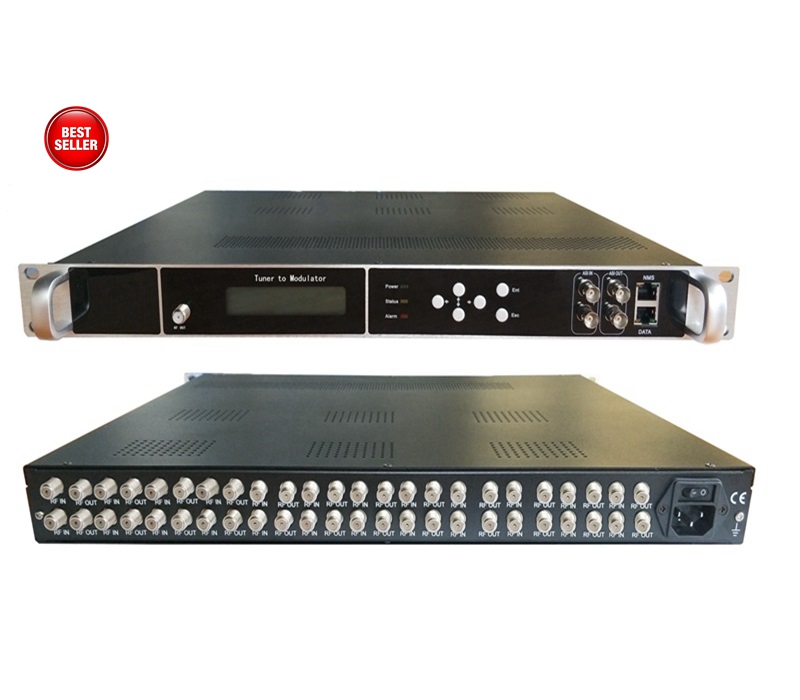

Not only need FTA to IP but also need RF as Output:

satellite receiver.jpgdvb-s2 fta tuner transmodulator.jpg
