Support: MPEG-2/MPEG-4 TS to IP
Input: 8*ASI or 12*ASI
Output:1 GE output,
maximum bit-rate is 800Mbps(for 32/20 SPTS output)
or 400Mbps ( for 256 SPTS output)

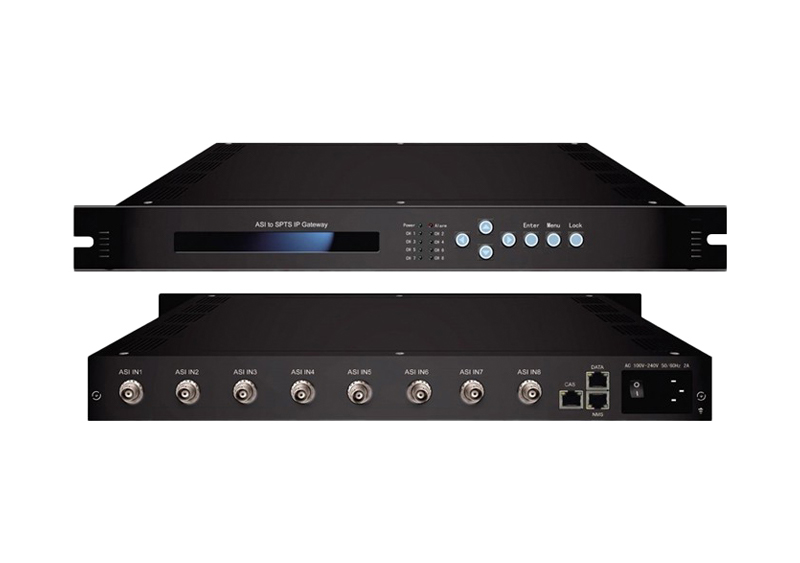

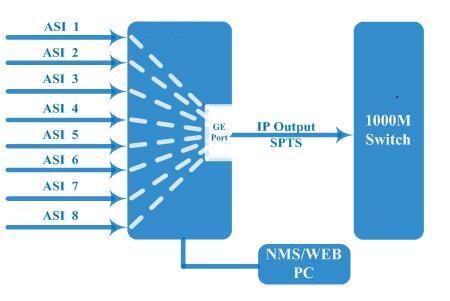

STGI-7100 ASI to IP Gateway is a head-end interface conversion device. It supports convert 8 ASI (12 ASI) input to 256*SPTS, 32*SPTS or 20*SPTS (with Biss function) output. After multiplexing the TS, then packet the TS into IP package and output the IP package through different IP address and ports. It supports IP output (UDP, RTP/RTSP protocol).
Supports IP to ASI one-way conversion
Support 8 channels ASI or 12 ASI input
Support BISS descrambling (Up to 120Mbps)
1 GE output, maximum output bit-rate is 800Mbps (for 32/20 SPTS output) or 400Mbps ( for 256 SPTS output)
IP null packet filter(only for 32/20 SPTS output)
SPTSx256, SPTSx32 or SPTSx20 (For version with BISS function) over UDP, RTP/RTSP, unicast and multicast
Support LCD display and keyboard
Support SNMP/Web operation

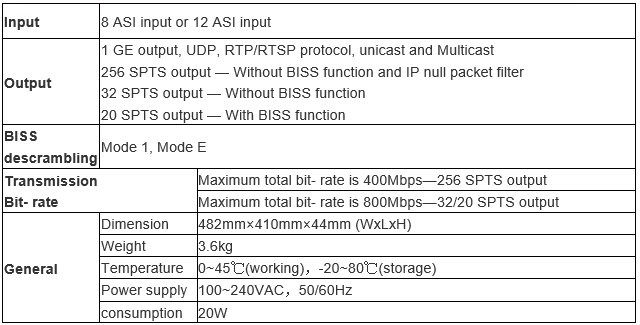

Technical Parameter
