DVB S2 to IP Gateway Receiver
DVB S2 to IP Gateway Receiver

DVB S2 to IP Gateway Receiver

Product ID : ST3380-A
Product Attributes :

Input tuner: 4/8/12/16/20/24

Types of tuner: DVB S/S2/S2x/DVB C/ATSC/ISDBT/DVB T/T2

Output: 2ASI/IP output

Product Description

Product Overview

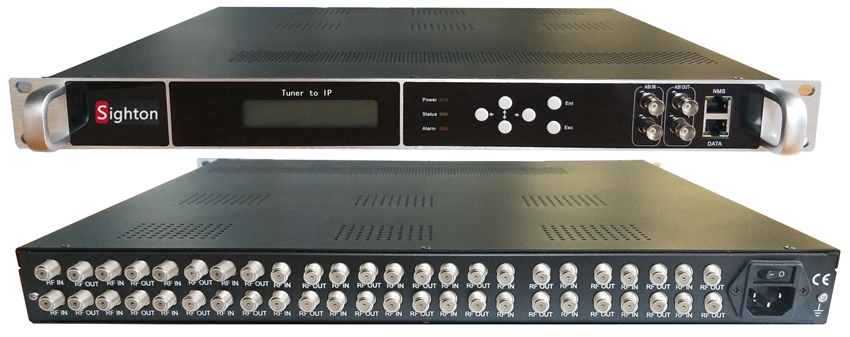

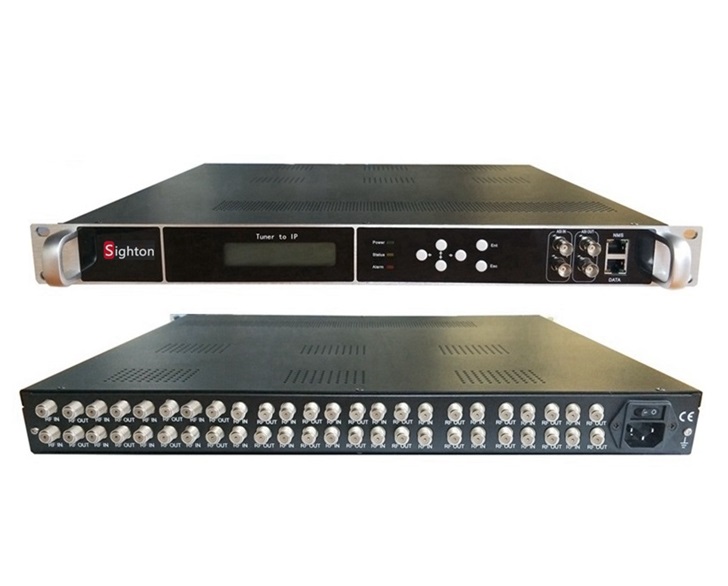

ST3380-A  dvb s2 to ip ( dvb to ip gateway) is a professional high-integration device that includes tuner dvb s2 demodulation(and other tuners dvb s, dvb t2, dvb t, atsc, isdb t), multiplexing, and encoding.

The ip gateway supports 4/8/12/16/20/24 tuner input(support different types of tuner ( dvb s2, dvb s, dvb t2, dvb t, atsc, isdb t ) input), transport stream 256 SPTS tv channels output with1000M IP output and1 MPTS output.

In conclusion, its highly integrated and cost-effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting, ip network etc.

dvb s2 to ip

Key Features

1. 4/8/12/16/20/24 tuner(DVB-S/S2/DVB-C/ATSC/ISDBT/DVB-T/T2) as inputs

2. supports 1000M IP output over UDP and RTP protocol(MPTS and SPTS)

3. Support different types of tuner ( DVB-S2/DVB-C/DVB-T/ATSC/DTMBT/ISDBT)  input, or mixed use ( e.g., 4 dvb - t inputs and 4 ATSC inputs at the same time, making up 8 tuners - input)

4. 2 ASI inputs

5. 2 ASI Independent output (optional) as copy of 1MPTS

6. Support “Null PKT Filter” function

7. Support PID Remapping/ PCR accurate adjusting

8. PID pass

9. LCD, key function, control via web management, and easy updates via web

Principle Chart

Principle Chart of dvb to ip gateway

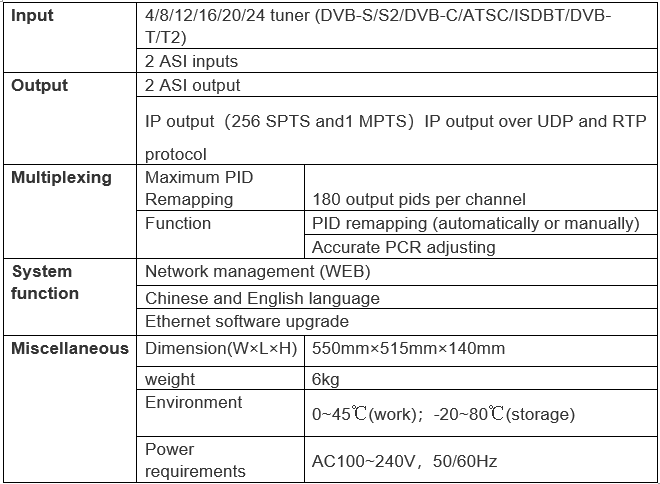

Technical Specification

Technical Specification of DVB S2 to IP


If programs are encrypted

Not only need FTA to IP but also need RF as Output:

satellite receiver.jpgdvb-s2 fta tuner transmodulator.jpg
