Input: 1or 2 tuners
Output: ASI/HDMI/SDI/IP/AV
IP Output: 8xSPTS/16xSPTS and1 IP MPTS output
CAM: Support CAM card insert (CI/CI+)

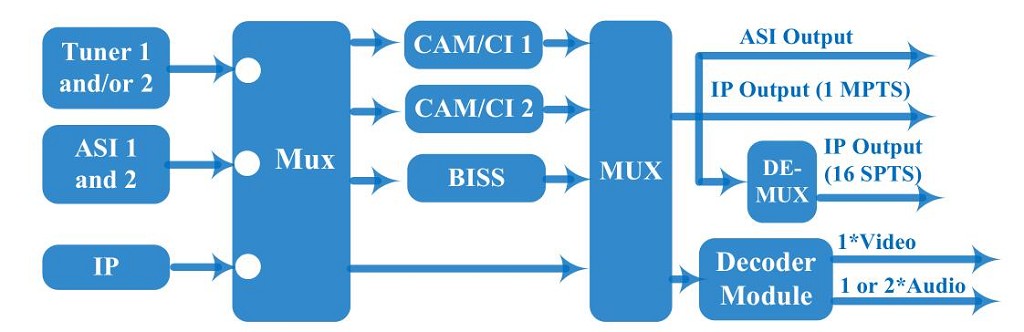

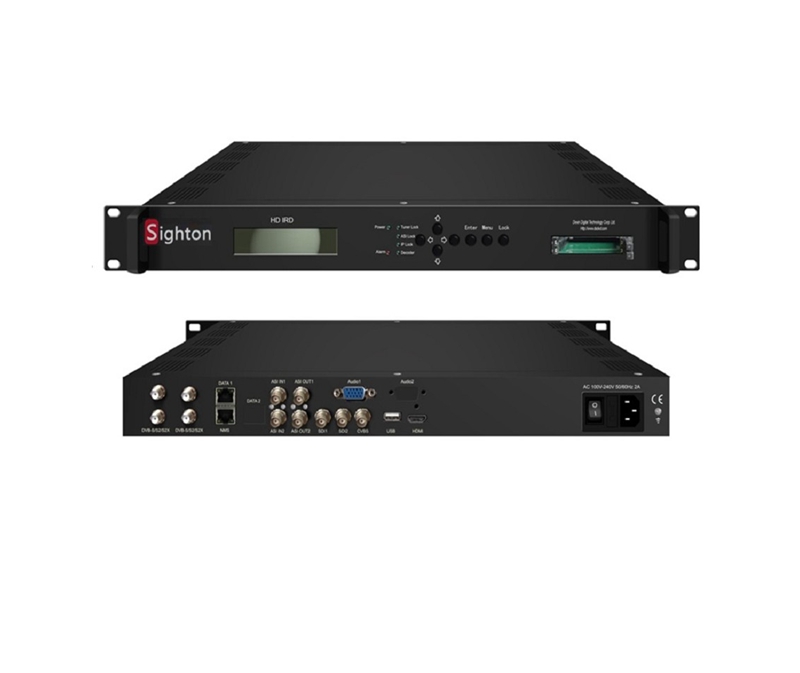

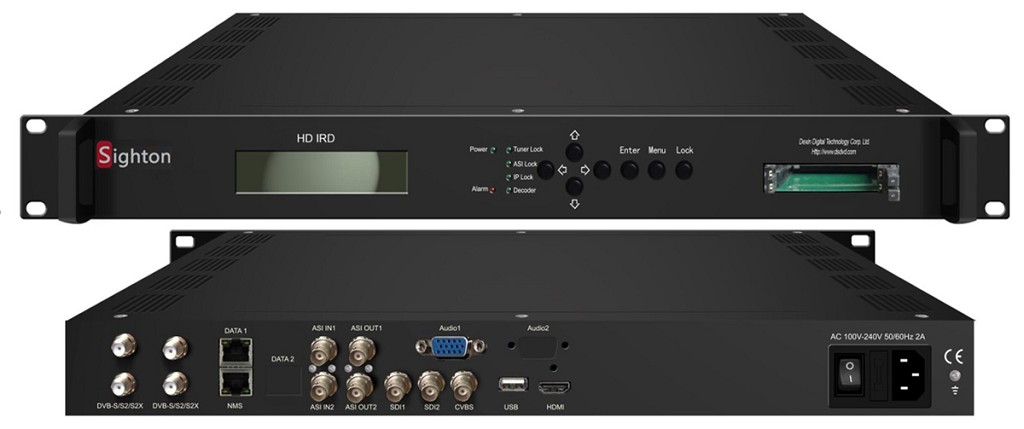

STSS-9932 HD IRD can receive signals from tuners (DVB-C, DVB-T/T2, DVB-S/S2/S2X, ATSC-T, ISDBT optional), ASI and IP. After demodulating, de-scrambling, re-multiplexing and decoding, it gives content out through various video/audio interfaces (HDMI, CVBS, 3G-SDI) or ASI or IP.This IRD is featured with two CAM/CI slots and BISS which supports to descramble encrypted Tuner, ASI or IP signals.
l Demodulator + descrambler +re-mux+ decoder in one box

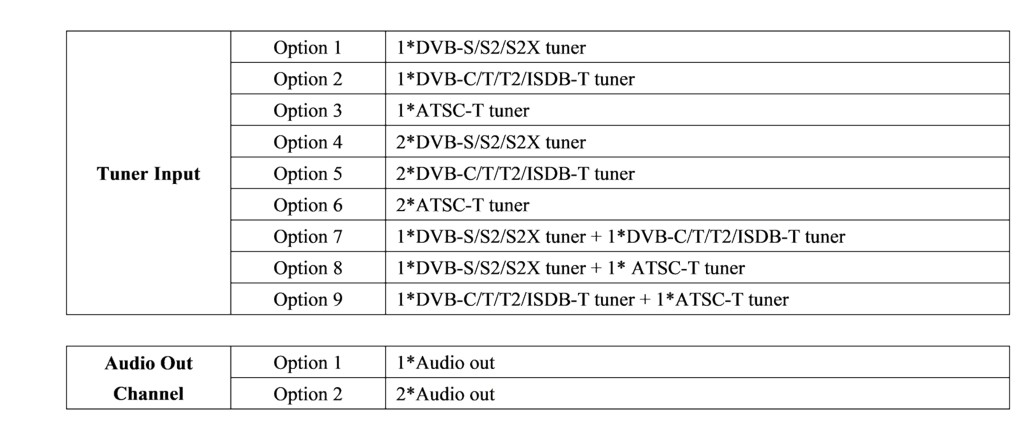

l 1 or 2 Tuner inputs (DVB-C/T/T2/S/S2/S2X/ATSC-T/ISDB-T optional) for option
l 2 ASI & 16 IP UDP/RTP input for re-mux
l Support 1ch HDMI/CVBS/3G-SDI video out (SDI1 and SDI2 mirrored out)
l Support 1ch or 2ch Audios out for the option
l Support HD/SD MPEG2, MPEG4 AVC/H.264, HEVC/H.265 and AVS/AVS+ decoding
l Support MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC V2, Dolby Digital/Dolby Digital Plus decoding and AC3 passthrough
l IP (1 *MPTS & 16* SPTS) output over UDP and RTP/RTSP; 2 ASI mirrored out as a copy of the IP MTPS
l Each CAM can decrypt multiple programs from Tuner/ASI/IP
l BISS descrambling (Up to 120Mbps)
l Support CC (EIA608, EIA708) & Teletext (Applicable for SDI port)
l Support maximum 128 PID mapping per input
l LCD/Keyboard and web-based NMS management
l Updates via web

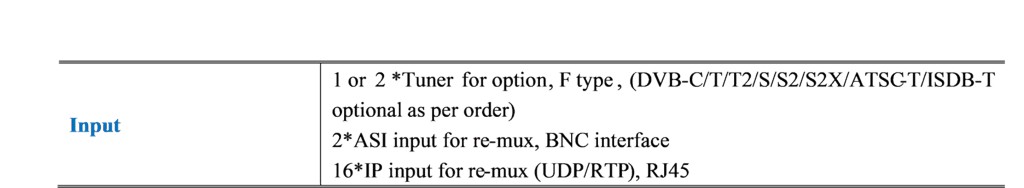

Technical Parameter

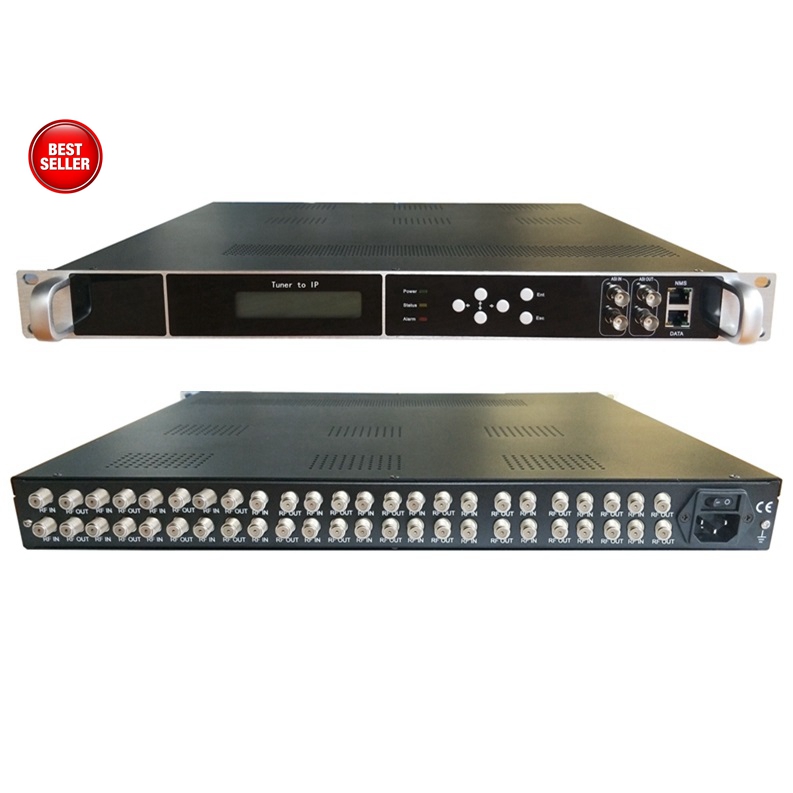

Devices-Recommend

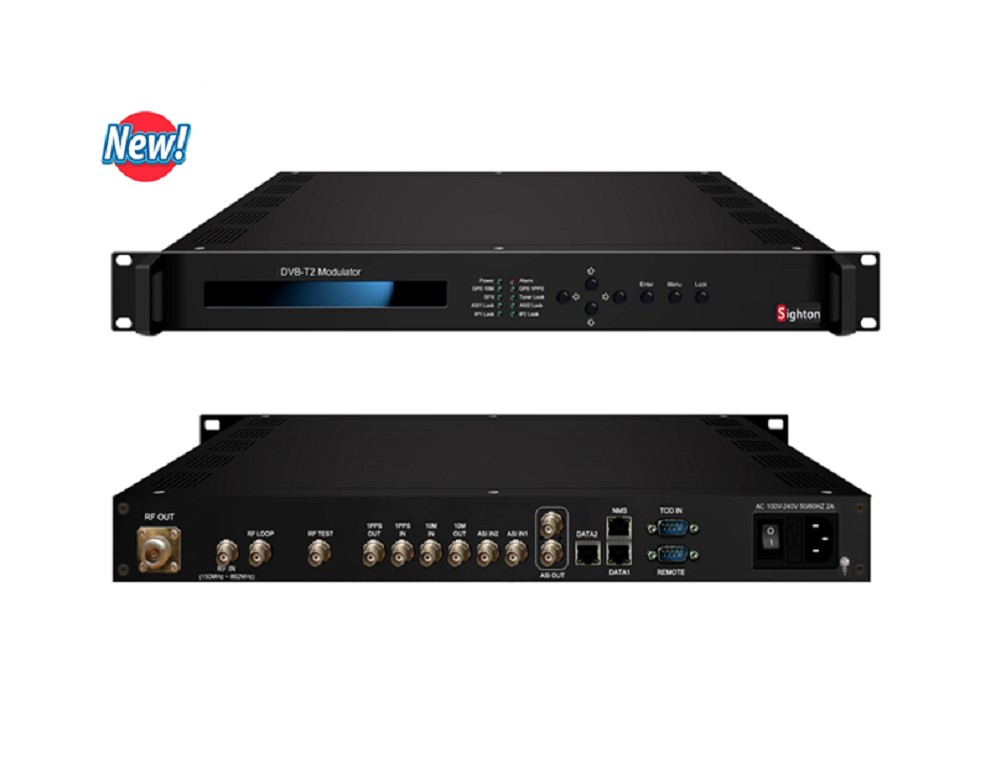

If programs are from FTA Tuners | Need DVB-T/T2 RF Output: |
![]() | ![]() |
