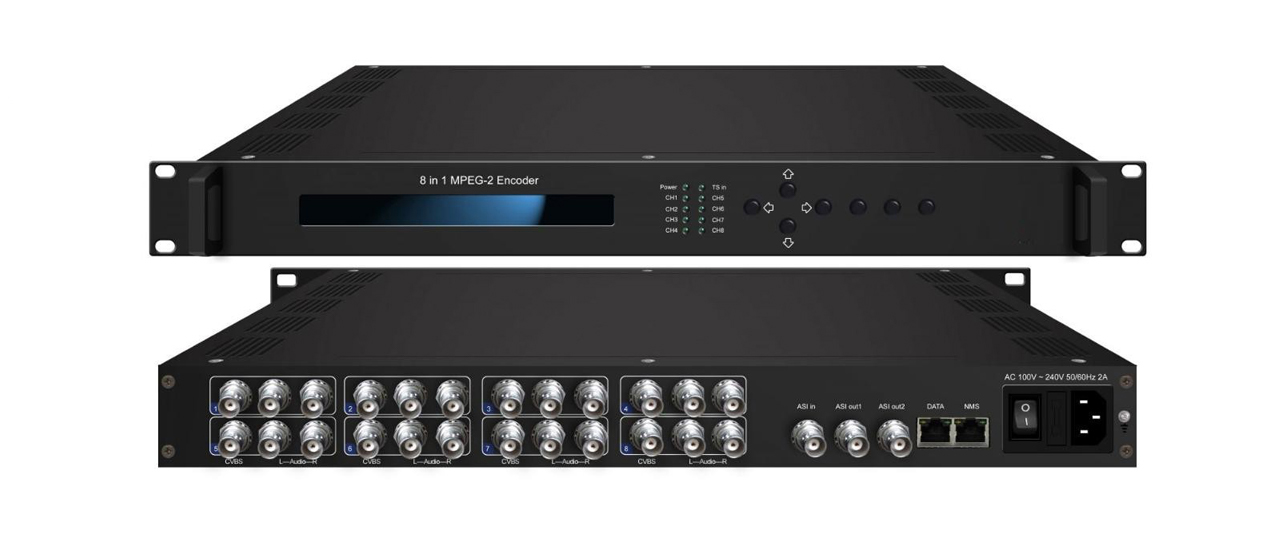

8 In 1 MPEG2 AV Encoder
8 In 1 MPEG2 AV Encoder 8 In 1 MPEG2 AV Encoder

8 In 1 MPEG2 AV Encoder

Product ID : STSD-5308
Product Attributes :

Input: 8CVBS and 8 pairs unbalanced stereo audio,1 ASI

Output: MPTS/SPTS IP

Encoding: MPEG2

Product Description

Outline

STSD-5308 8 in1 MPEG-2 AV Super Encoder (with IP output) is a professional audio video encoding and multiplexing device. This AV Encoder has 8 CVBS input interfaces and 8 pairs of unbalanced analogue stereo audio input interfaces, and two ASI output interfaces which can output the multiplexing and condensed data. Moreover, this device can simultaneously encode 8 channel audio& video signal and can multiplexer one ASI input stream to MPTS. Besides, it supports the criterion MPEG-2 encoding format, and the audio encoding formats supports MPEG1 Layer2,LC-AAC and AC3. Furthermore, this super encoder has the IP output function; users can manage the device according to the SNMP/Web. In conclusion, its high compatibility and integrate design make this device widely used in a variety of digital TV broadcasting systems.


Features

Supports MPEG-2 video encoding, and advanced video pre-treatment

The audio formats are MPEG-1 Layer2, LC-AAC and AC3.

8 CVBS video input

8 pairs of unbalance stereo audio input

Multiplexes one ASI input

Supports PAL,NTSC SD signal

Supports IP output

Supports MPTS or 8(4)xSPTS output over UDP

Keyboard and LCD operation

Support SNMP or web management

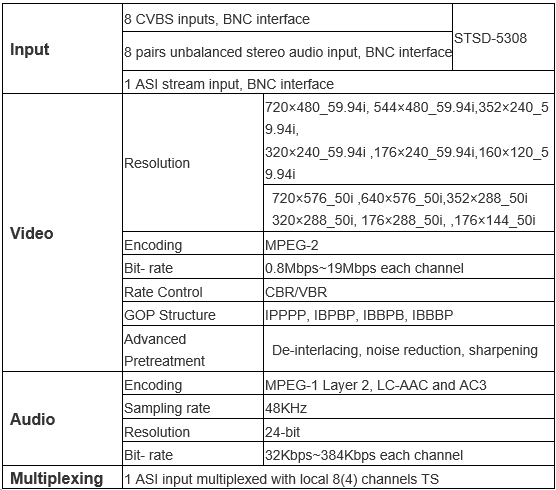

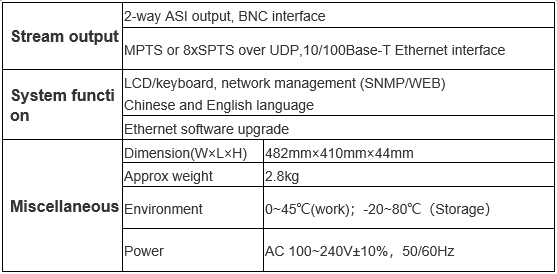

Technical ParameterTechnical Parameter of 8 In 1 MPEG2 AV Encodersystem function of 8 In 1 MPEG2 AV Encoder
