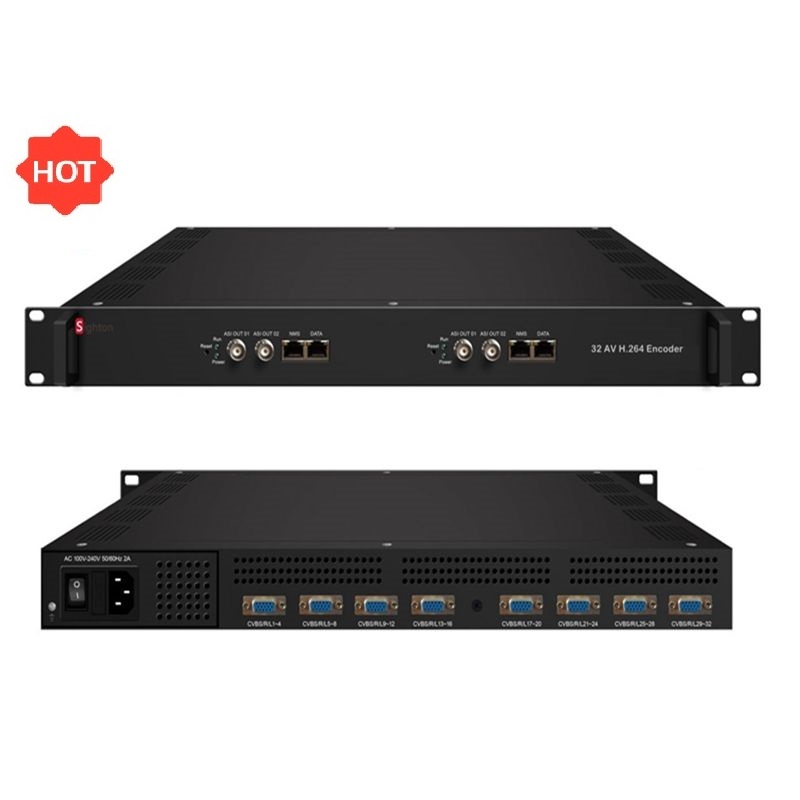

16/32×CVBS H.264 AV Encoder

Outline

STHD-5708B multi-channel encoder is our newest professional SD audio& video encoding and multiplexing device with powerful functionality. It adopts the slot structure with one device supporting maximum 2 STHD-5708B modules. Each module can support 16channels and work stand alone. It is equipped with 16/32 CVBS channels input. It can multiplex the 16/32 encoded TS to generate an MPTS and 16/32 SPTS output through GE output port and one MPTS output through 2ASI output ports. In conclusion, its high integration, and cost-effective design make this device widely used in a variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.

Features

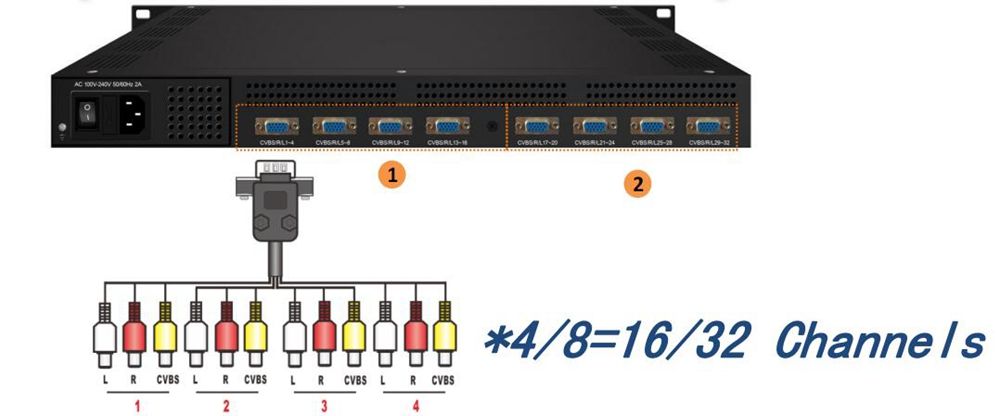

16/32×CVBS video inputs with MPEG4 AVC/H.264 Video encoding

Supports PAL (PAL-B, D, G, H, I) and NTSC (NTSC-M, J) SD video formats

Support MPEG1 Layer II Audio encoding and support audio gain adjustment

Support 1 MPTS out through 2 ASI output ports

Support IP output over UDP and RTP

Support Null PKT Filter(only for MPTS, SPTS output without Null PKT)

Support Logo, Caption, QRcode insertion

 (Language Supported: 中文, English, العربية, ไทย, , for more languages please consult us…)

Real-time effective encoding output bit-rate monitoring

Control via web management, and easy updates via web

Modular design,1U chassis support up to 2 modules

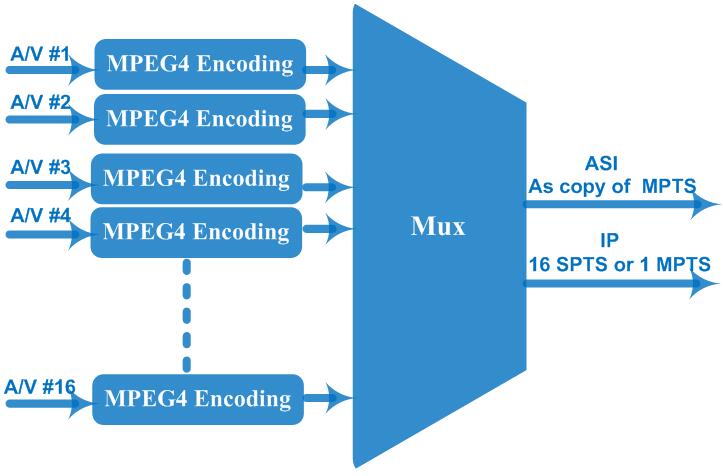

 Principle Chart

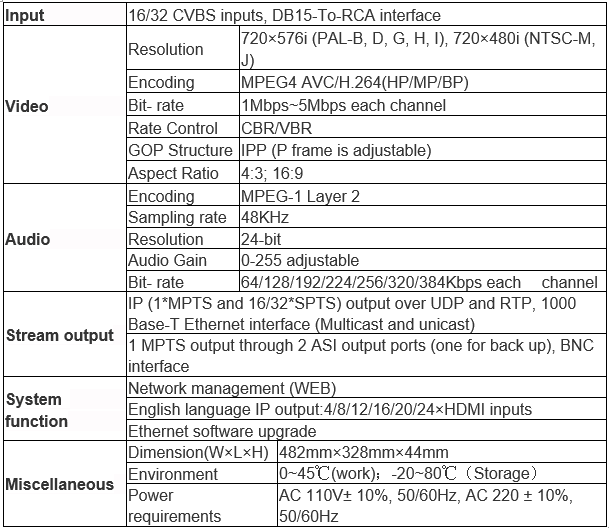

Technical Parameters

How to choose MPEG2 or H.264 Encoder?

MPEG-2 (a.k.a. H.222/H.262 as was defined by the ITU) is a standard for "the generic coding of moving pictures and associated audio information".

H.264: Advanced Video Coding (AVC), MPEG-4 Part 10, is a video compression standard based on block-oriented, motion-compensated coding. The intent of the H.264/AVC project was to create a standard capable of providing good video quality at substantially lower bit rates than previous standards. It is by far the most commonly used format for the recording, compression, and distribution of video content, used by 91% of video industry developers as of September 2019. It supports resolutions up to and including 8K UHD.

However, using mpeg2 or h.264 encoder is depended on whether the end users of your project decoder( STB, smart TV) format is mpeg2 or h.264.We need to maintain the compatibility of front-end equipment and end-users.
