Outline

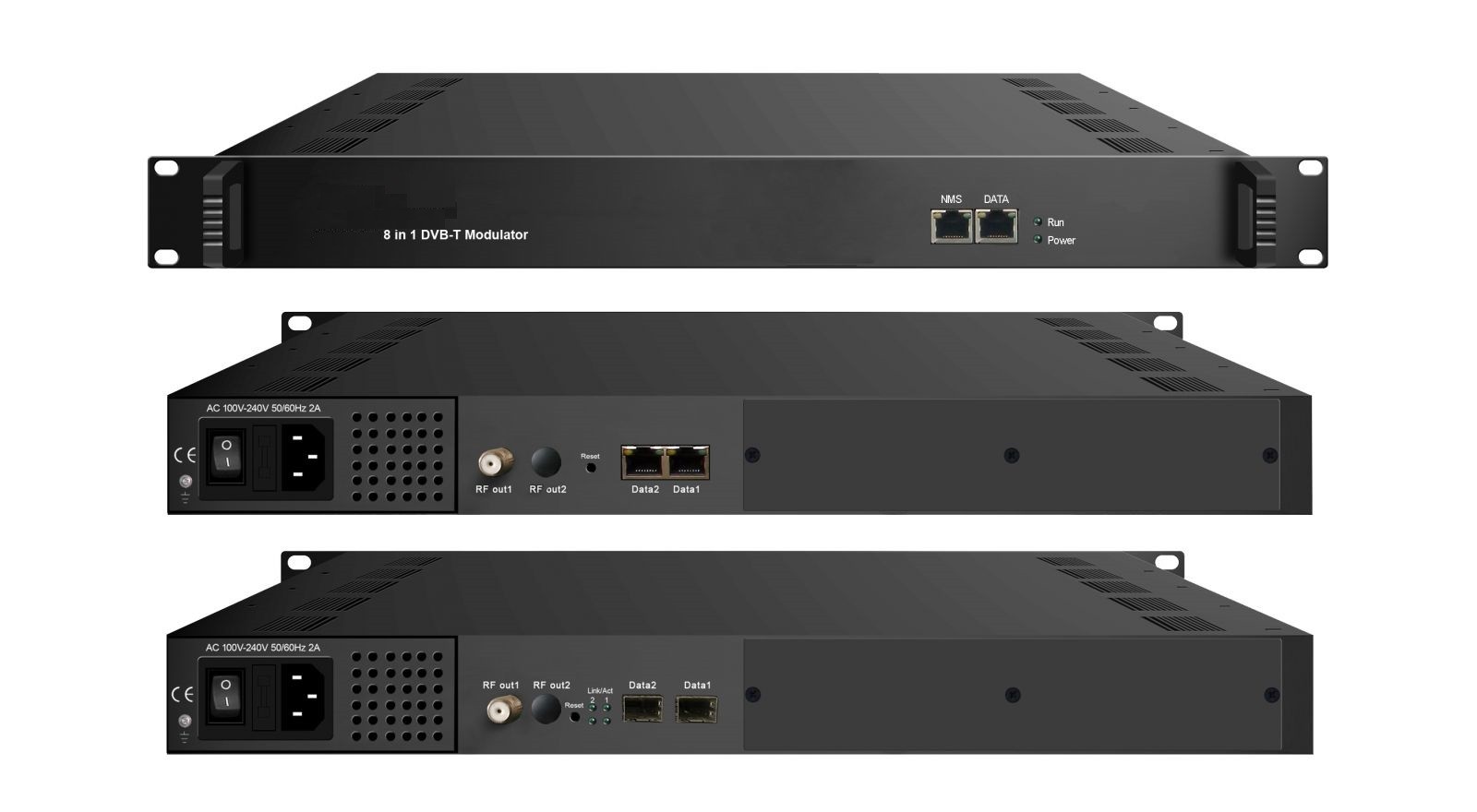

 STPM-08T  8 in 1 DVB T modulator is an all-in-one device. It has 8 multiplexing channels and 8 DVB-T modulating channels and supports a maximum of 256 IP input through the GE port and 8 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. As this rf modullador is also characterized by a high integrated level, high performance, and low cost. It is very adaptable to the new generation DTV broadcasting system.

Features

*  3 GE ports (max 256 IP in):

    Data1 & Data2 bi-directional ports, max 256 IP in, 8 IP out

    Data port (located on front panel), max 128 IP in

*  Max 840Mbps for each input

*  Supports accurate PCR adjusting

*  Supports PID remapping and PSI/SI editing

*  Supports up to 180 PIDs remapping per channel

*  Support 8 multiplexed TS over UDP/RTP/RTSP output

*  8 DVB-T non-adjacent carriers output, compliant to ETSI EN300 744 standard

*  Supports RS (204,188) encoding

*  Support Web-based Network management

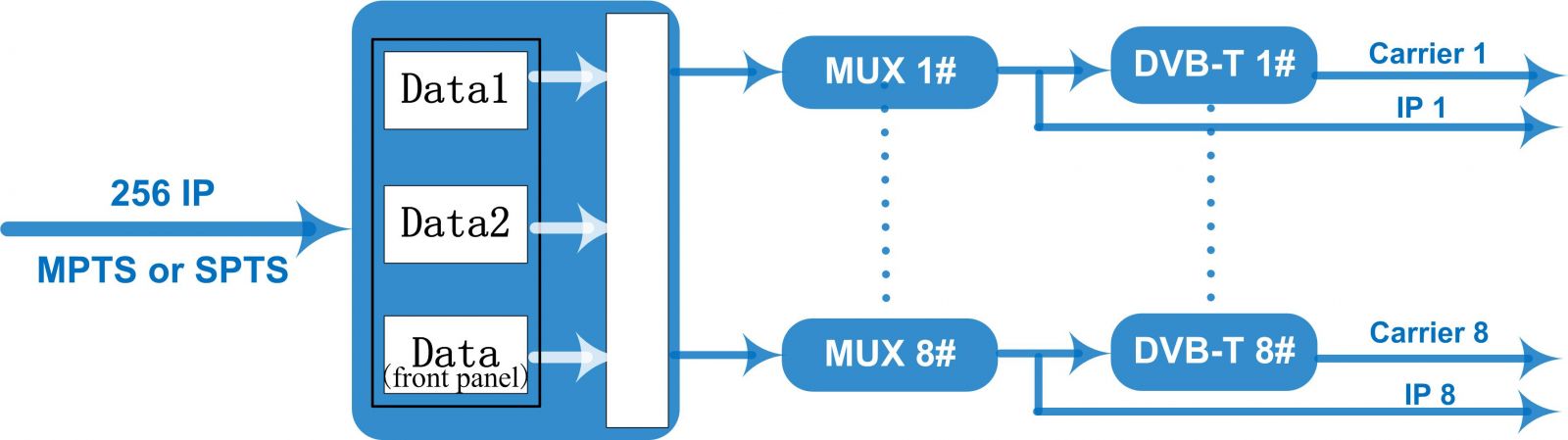

Principle Chart

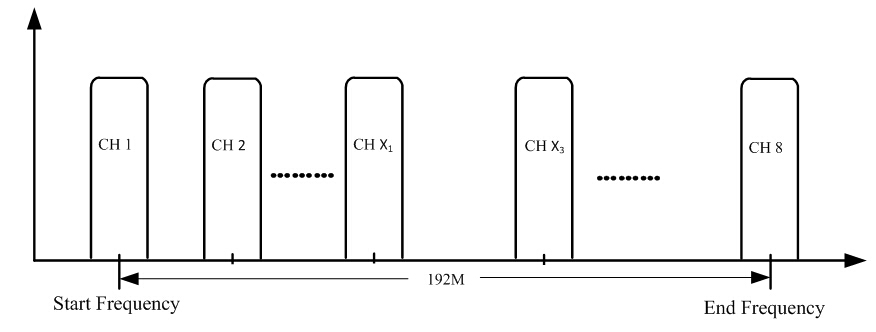

Carrier Setting Illustration

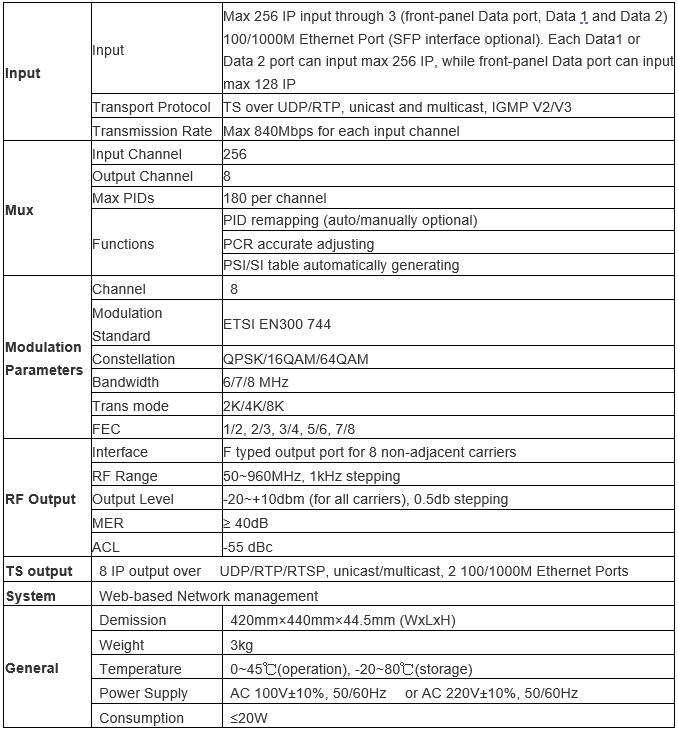

Technical Parameter

DVB T max output bitrate

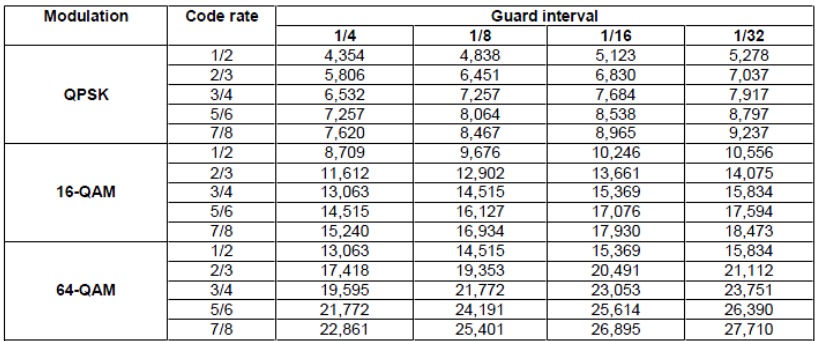

 Table E.5: Useful bitrate (Mbit/s) for all combinations of guard interval, constellation and code rate for non-hierarchical systems for 6MHz channels

  Note: Figures in italics are approximate values.

            For the hierarchical schemes, the userful bite rates can be obtained from table E.5 as follows:

                   HP stream: figures from QPSK columns;

                   LP stream, 16-QAM:figures from QPSK columns;

                   LP stream, 64-QAM: figures from 16-QAM columns.

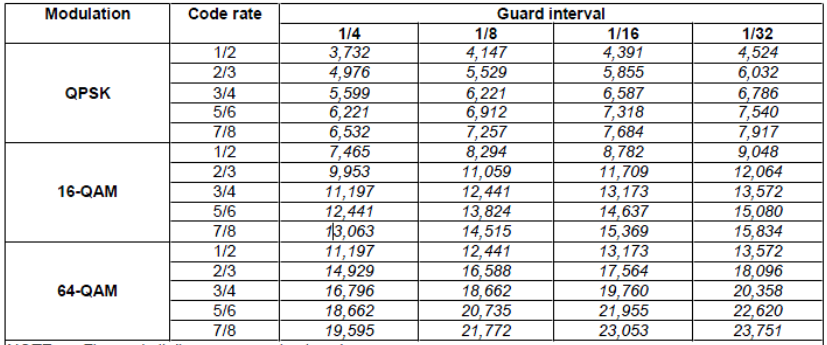

Table E.6: Useful bitrate (Mbit/s) for all combinations of guard interval, constellation and code rate for non-hierarchical systems for 7MHz channels

  Note: Figures in italics are approximate values.

            For the hierarchical schemes, the useful bite rates can be obtained from table E.6 as follows:

                   HP stream: figures from QPSK columns;

                   LP stream, 16-QAM:figures from QPSK columns;

                   LP stream, 64-QAM: figures from 16-QAM columns.
