Outline

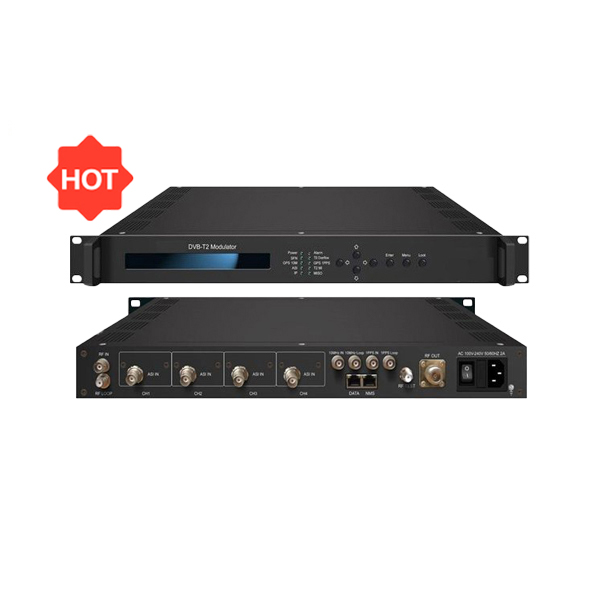

STM-3500 T2 Modulator is developed to comply with the DVB-T2 standard. With its advanced modulating technology, this modulator can effectively make use of the ground spectrum resources and make it possible to provide reliable signals for fixed, mobile, and portable devices. Compared with DVB-T, the channel capacity is increased by 30% under a similar carrier-to-noise ratio (CNR) threshold. The digital moduattor also supports single-PLP and multi-PLP (option) to receive T2-MI from the DVB-T2 gateway through its ASI and IP port. (This function is also an option.)

Moreover, this digital moduattor can be upgraded and controlled through a network system, which allows it to be widely used in setting up a digital broadcasting network and provide good signals for scientific laboratories and DVB-T2 STB.

Features

1. Fully complying with EN302 755 standard

2. 4 ASI input ports (for 1 channel TS input with 3 ports for backup)

3. TS over IP input (UDP); T2-MI over IP input (Option)

4. 10MHz input/loop out, 1PPS input/loop out

5. DVB-T2 RF output

6. Supports single PLP, multi-PLP (Option)

7. Support MISO and SISO

8. Support QPSK/16QAM/64QAM/256QAM (normal or rotated)

9. Support TS format: T2-MI (Option) or TS (Mode A)

10. High-performance output: MER>43dB, shoulder level>56dB

11. Output signal bandwidth: 5M, 6M, 7M, 8MHz

12. Support MFN and SFN (Option) net mode

13. Supports non-linear and linear digital pre-distortion (DPD) --->Video

14. RF output level: -25~+3 dBm, 0.1db stepping

14. Constant temperature crystal oscillator, as high as 0.1ppm stability

15. Support online upgrade

16. Keyboard operation and LCD display

17. Web Network management system (GUI)

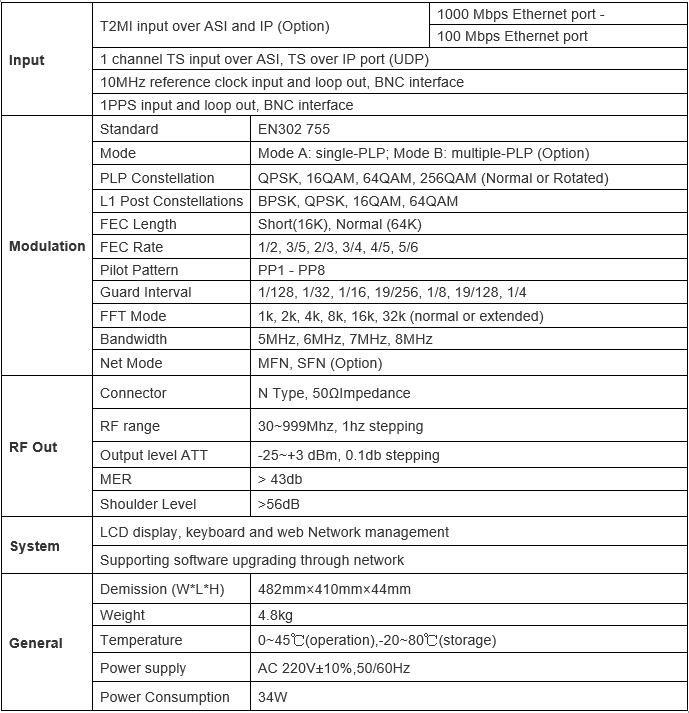

Technical Parameter

Devices-Recommend

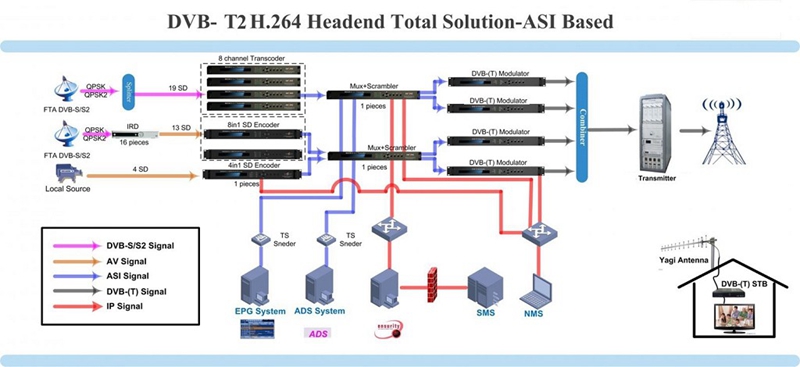

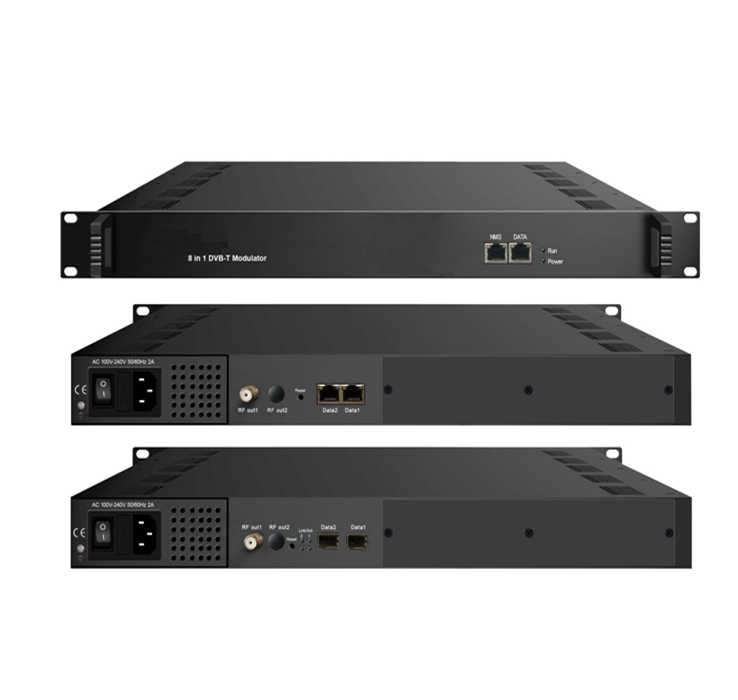

Are you interested in building DVB-T2 Wireless Transmission Solution?	DVB-T Standard only
