Input: 16 tuners input +2 ASI input
Tuner Section: DVB-C DVB-(T) DVB-S/S2 ISDB-T ATSC
Output: 4*IP (MPTS)
Support: BISS descrambling
* Support 16 FTA DVB- S/S2 (DVB-C/(T)/ISDB-T/ATSC optional )input, 2 ASI input
* Support BISS descrambling, and each channel bit rate cannot exceed 80Mbps
* Support DisEqc function
* 4 IP output (MPTS) over UDP, RTP/RTSP protocol
* 2 GE mirrored output, up to 850Mbps
* Support PID filtering, re-mapping
* Support PSI/SI rebuilding and editing
* Support “Null PKT Filter” function
* Support Web operation

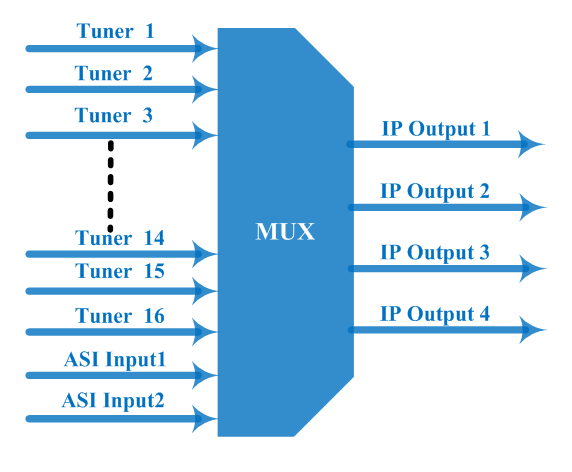

Principle Chart

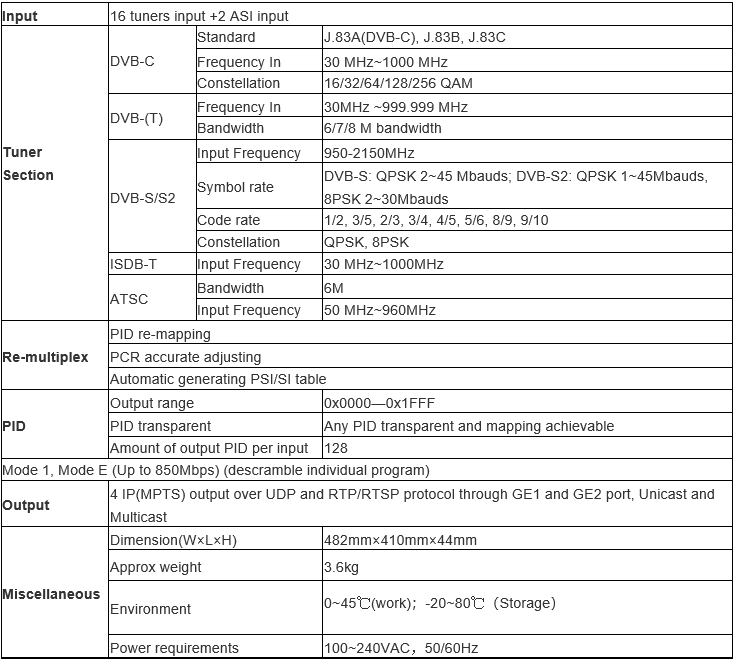

Technical Parameter
BISS descrambling
