Multiplexer Series
Multiplexer Series

Multiplexer Series

Product ID : ST-6708
Product Attributes :

Input: 1IP+2 ASI+6 tuners

          (DVB-C/DVB-S/DVB-S2/DVB-T/DVB-(T)/ISDB/ATSC)

Output: 2ASI+IP

Product Description

Features

* Fully complying with ISO13818 and EN300 468 standard

* Integrated demodulating and multiplexing functions

* 1 IP input over UDP and RTP protocol and 2 channels ASI input for re-multiplexing

* Support accurate PCR adjusting

* Support PID filtering, re-mapping

* Two groups (each group has 2 channels) separate TS outputs

* Support IP output over UDP output as mirror of ASI output (RJ45), GE Port

* Support PSI/SI (PAT and PMT tables) generation and edit--- For 3107

  Support PSI/SI (PAT and PMT tables) and PSIP (STT, MGT, VCT tables)--- For 3107B

* Huge buffer memory for saving the overflowing code stream

* Supporting to multiplex one program to all outputs

* Network long-distance upgraded

* LCD/keyboard and net management, support NMS/SNMP

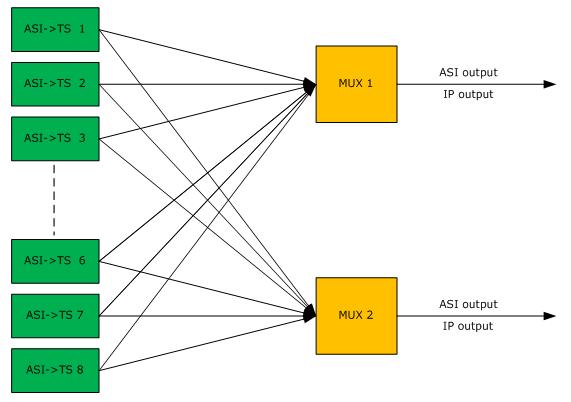

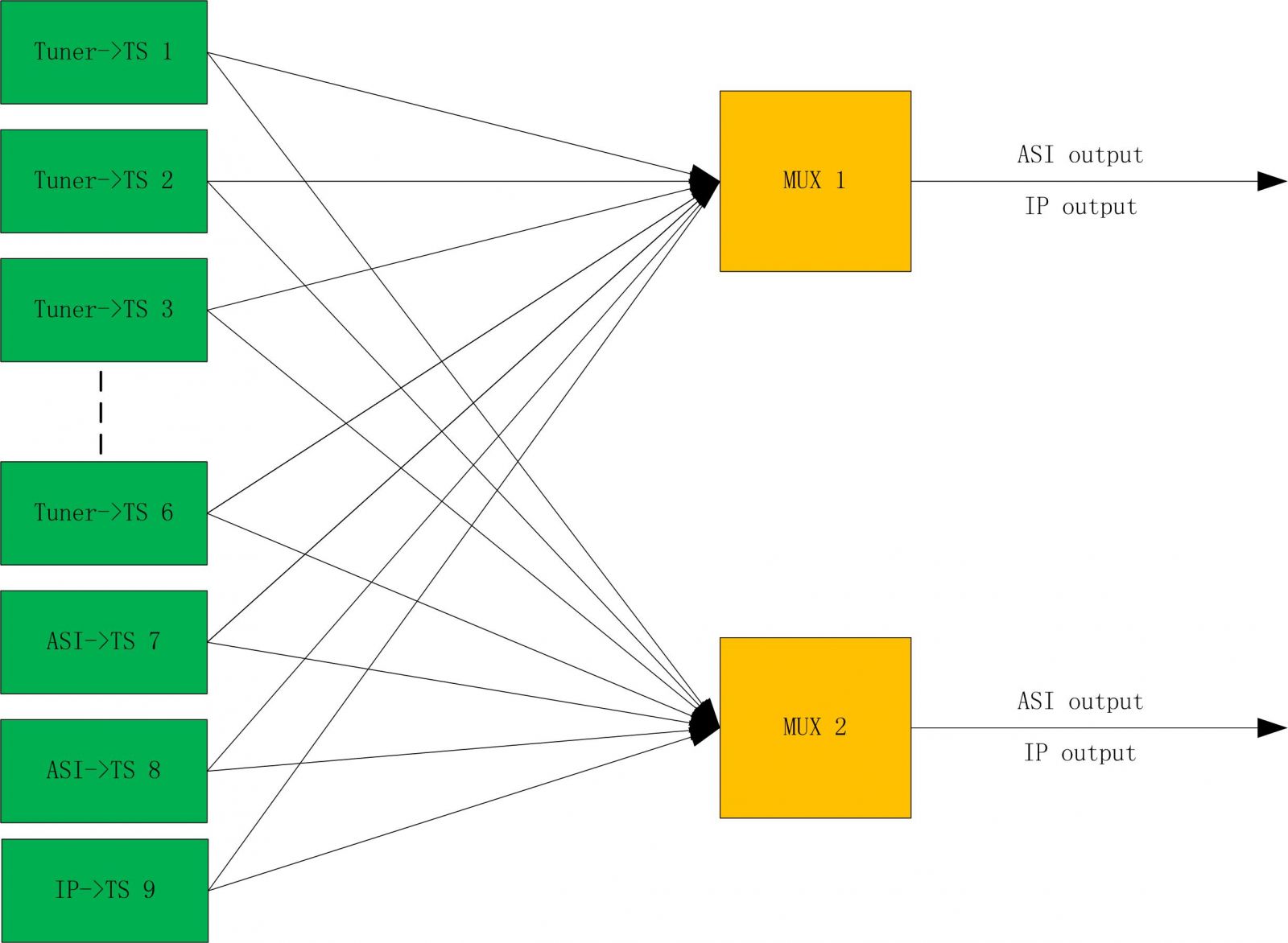

 Principle Chart

Principle Chart of Multiplexer SeriesPrinciple Chart of Multiplexer Series

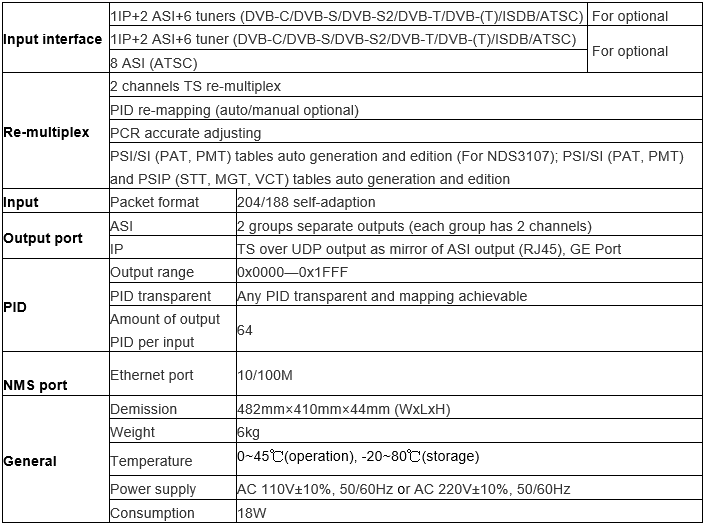

Technical Parameter

Technical Parameter of Multiplexer Series
