Features

* Fully complying with ISO13818 and EN300 468 standard

* Support 8 ASI input for re-multiplexing

* Support 512 IP input through DATA 1 and DATA 2 over UDP protocol

* Support accurate PCR adjusting/ PID re-mapping/PSI/SI rebuilding and editing

* Two groups (each group has 2 channels) separate ASI outputs

* IP (2 MPTS) over UDP, RTP/RTSP output as mirror of ASI output (RJ45), GE Port, DATA 1 and DATA 2

* Huge buffer memory for saving the overflowing code stream

* Support to multiplex one program to all outputs

* LCD/keyboard and Web-based NMS management

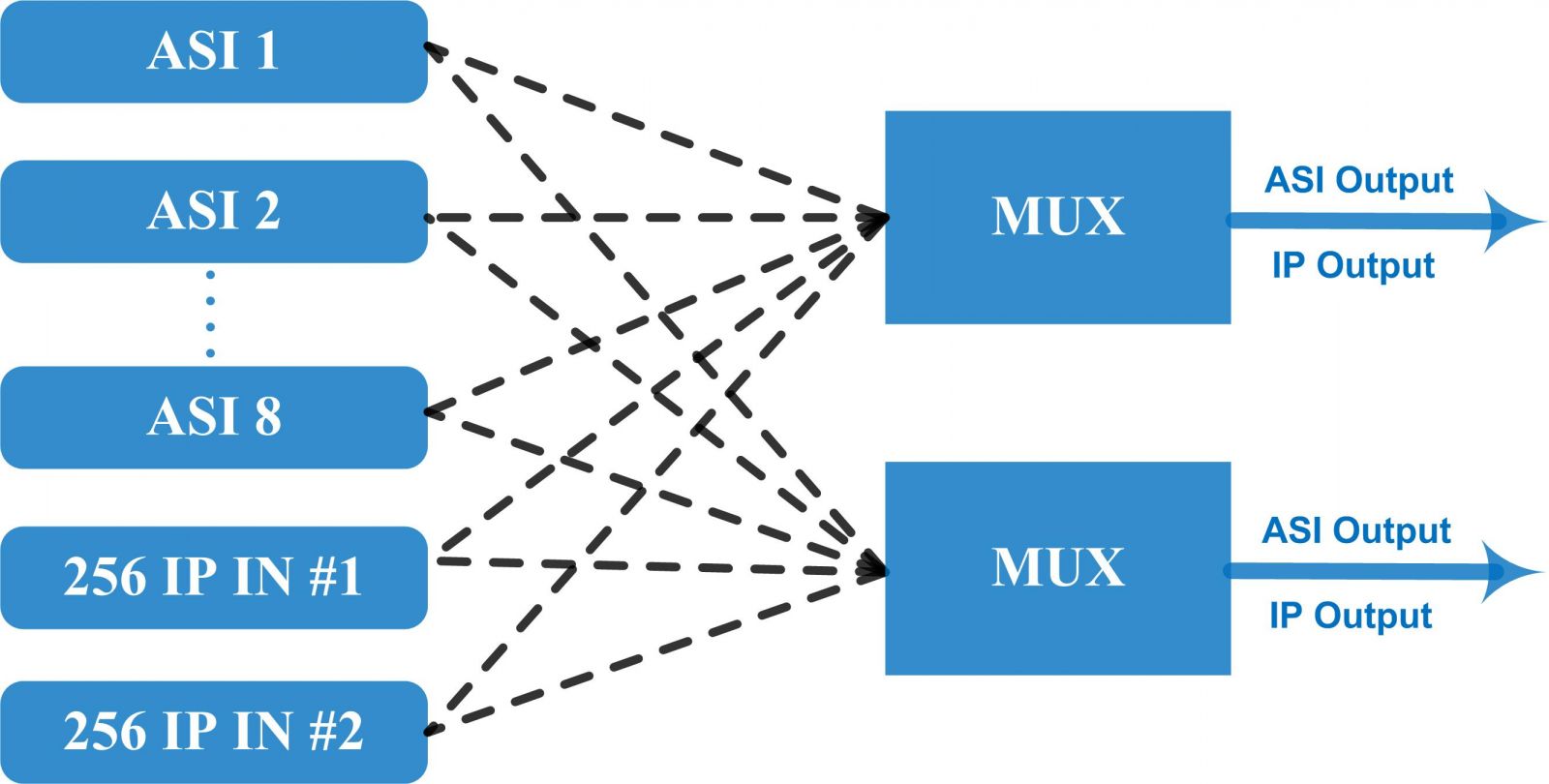

Principle Chart

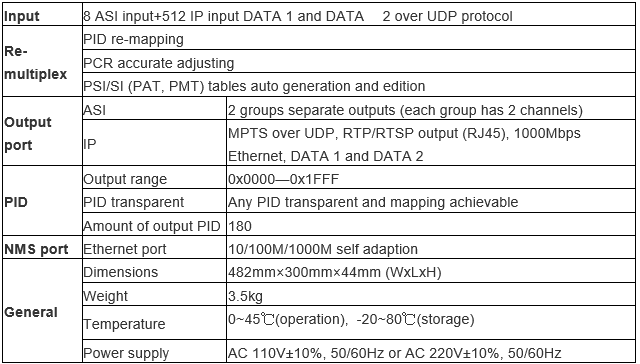

Technical Parameter
