Outline

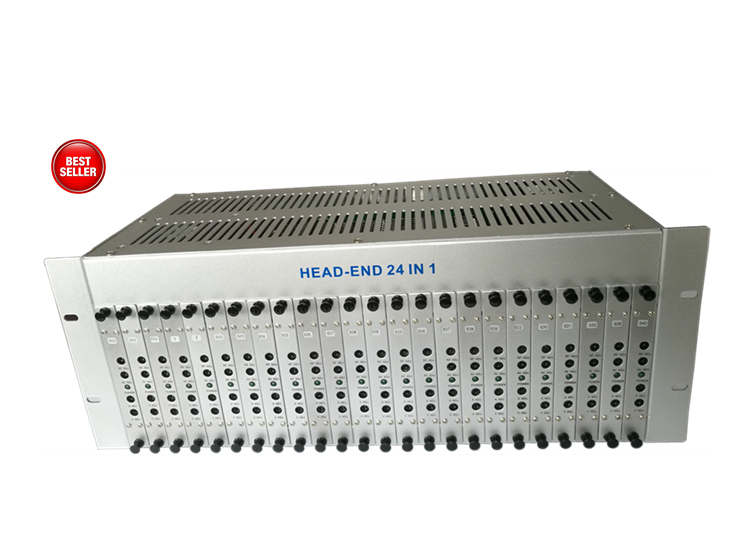

T024-M 24 fixed channels analog tv modulator is a 4RU rack-mounted chassis that allows for the installation of up to 24 pieces of microprocessor-controlled fixed mini-modulators. A built-in active combiner eliminates unnecessary cabling and potential connection problem and ensures a high output level. All modulators are perfectly factory set to desired channels and proper offset.

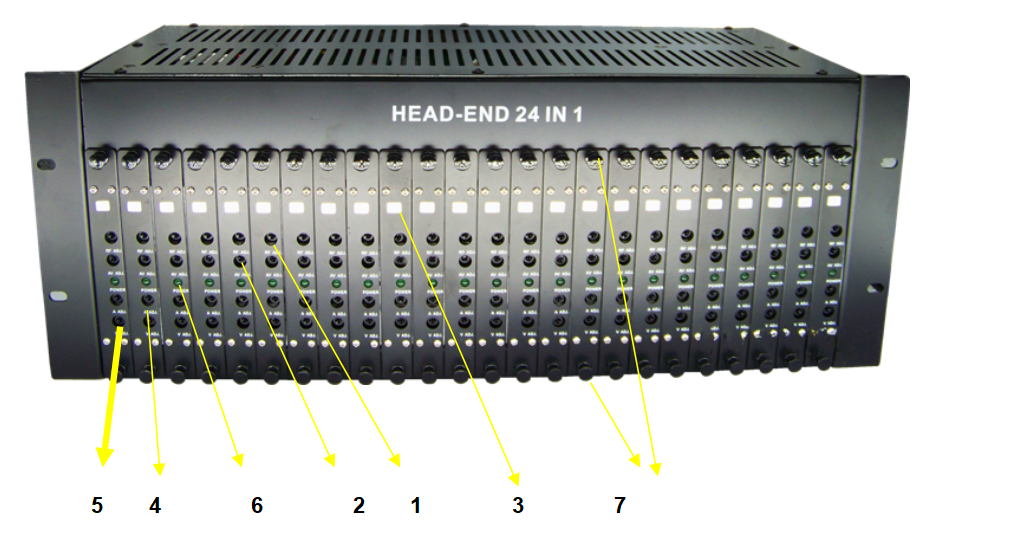

Front Panel:

1. RF level adjustment (0-20dB)

2. A/V level adjustment (-17dB preset)3. Channel sticker

4. Volume control (the volume increases by turning clockwise)

5. Video modulation depth adjustment (the modulation depth increases by turning clockwise)

6. Power indicator (green)

7. Locker to fix the mini modulator in the chassis.

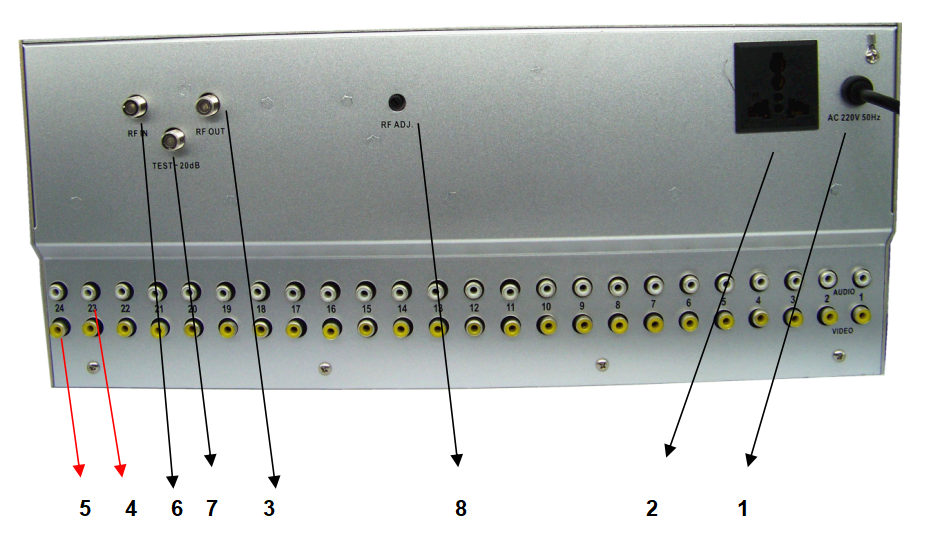

REAR PANEL:

1. Power plug (220Vac In)

2. Power socket (220Vac Out)

3. RF output (F-connector female)

4. Audio Input (RCA Female)

5. Video Input (RCA Female)

6. RF Input to accept (loop) RF out from another modulator

7. Testing ports -20dB

8. RF output level adjustment for whole 24-channel combined

Key Features

• Switching power supply for installation flexibility and precise voltage regulation

• Two cooling fans for long-life performance

• 45dBmV chassis output level, no need for an extra combiner

• SAW (surface acoustic wave) filtering on IF for superior in band C/N

• Front panel access controls enable easy setup

Specifications
