Outline

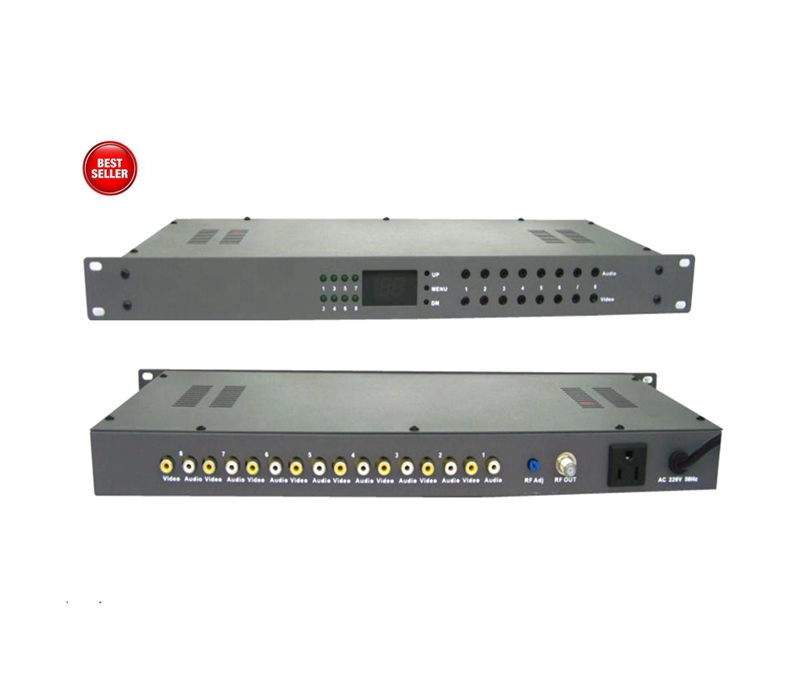

T008-MA series are Agile catv rf modulators with 1U chassis, supporting 1 channel, 4 channels, 8 channels, and 16 channels optional.

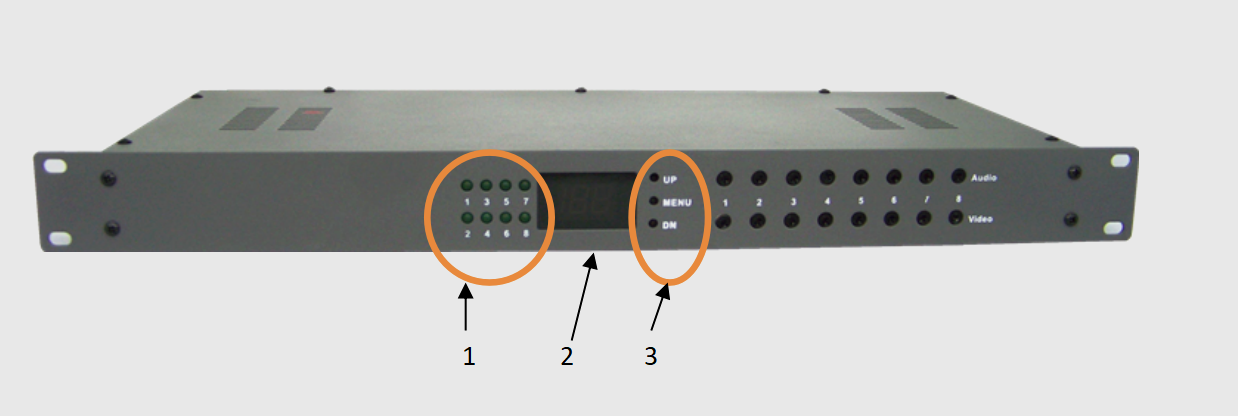

Front Panel

1. Channel indication light

2. LED display to show channel number ( frequency)

3. Up and DN (DOWN) button to change frequency, menu button to select the channel.

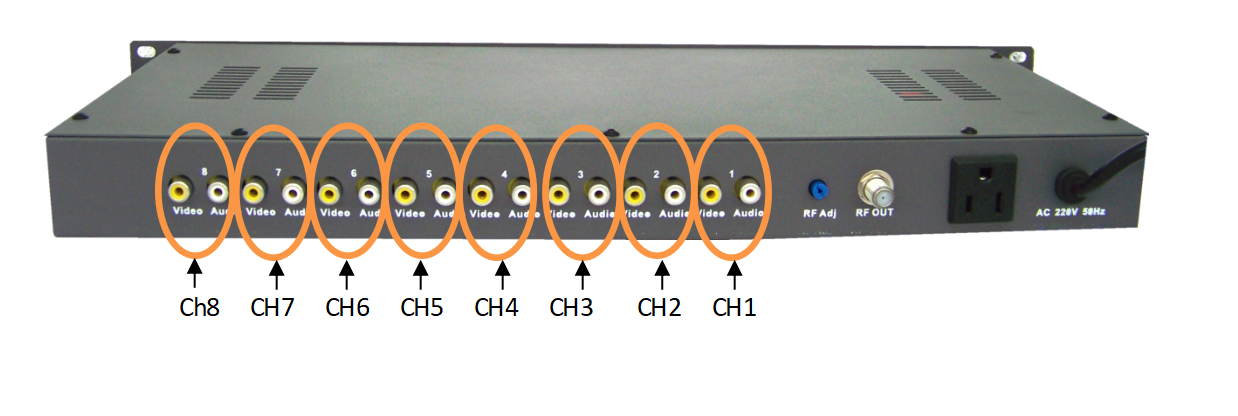

Rear Panel

1. Connect each channel with A/V signal input

2. Feed power plug-in.

Key Features

• 8 Video Audio input, one RF output

• H.F processed with one-conversion ensures low out band interfere

• MCU control for frequency control and accuracy

• Excellent video and audio linearity for superior picture quality

• LED Display. Four indicator lights for each channel, using UP and DOWN to control output Frequency.

• Easy operation. All configure set in the front panel

• Switching mode power supply allows for any operation worldwide

• PAL, NTSC, and SECAM optional

Specifications

Devices-Recommend

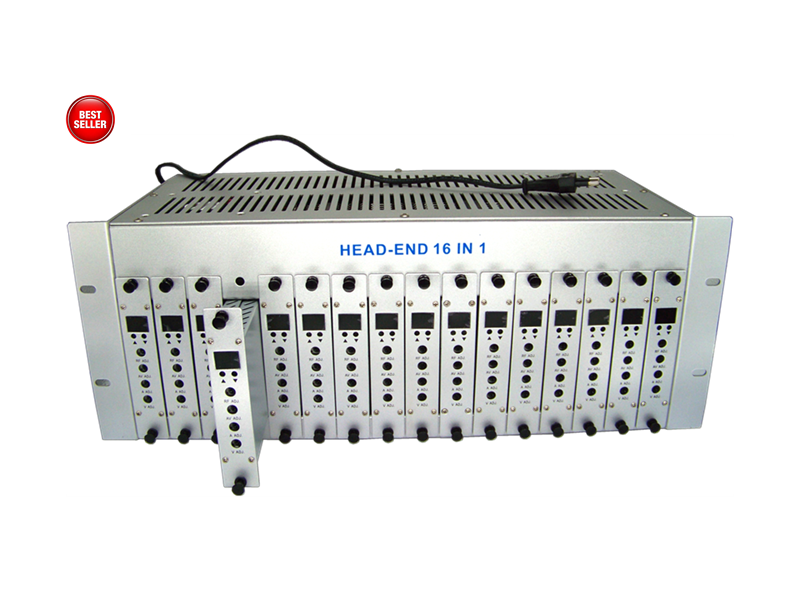

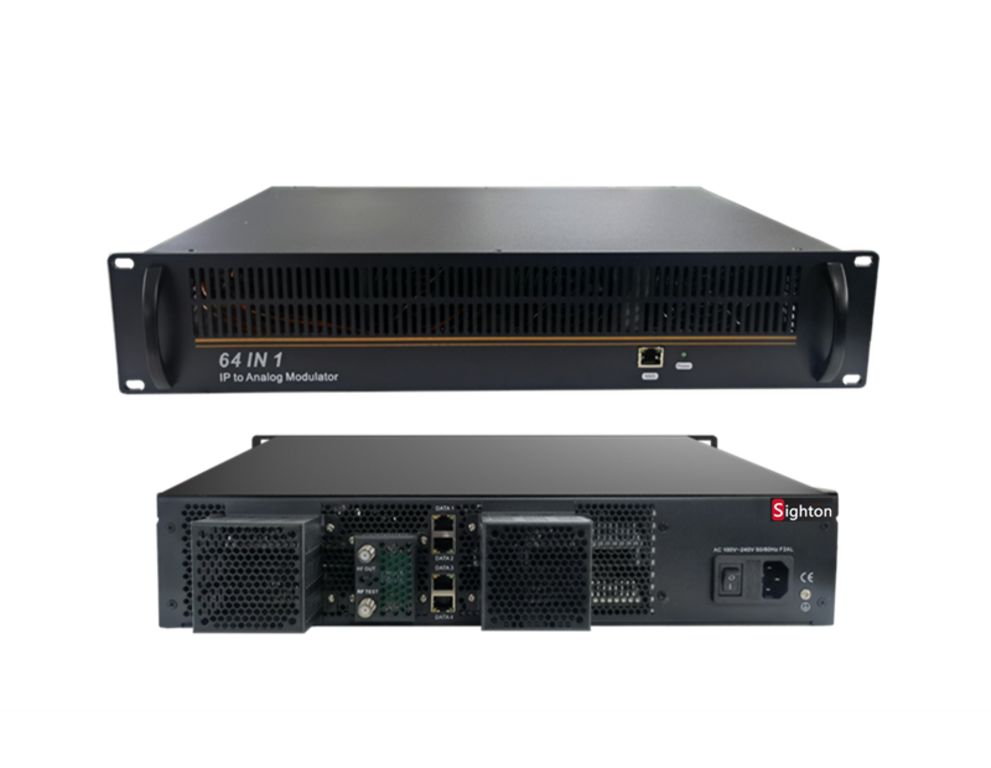

If you need cheaper one with fixed channels:	Digital signal to Analog:
