DVB-T2 Digital Transmitter (200W-600W)
DVB-T2 Digital Transmitter (200W-600W)

DVB-T2 Digital Transmitter (200W-600W)

Product ID : ST600
Product Attributes :

Power Output 200W-600W

Product Description

Outline

ST600 digital transmitter is used for professional DVB-T2  transmission systems that give sustained power output with a compact structure design to save space. It supports working in SFN and MFN systems. It can work with single-carrier mode and multi-carrier mode, and support single-channel and broadband transmission.

This Tv station transmitter has a very high linear and high reliability as it takes high power gain and a high linear LDMOS tube amplifier module. With its good reputation at home and abroad, ST600 wireless transmiter has been widely used in HD/SD digital TV single transmit and broadcasting systems.

dvb t2 dvb t transmiter

Features

Improved signal transmitting quality

Intelligent, modularized amplifier unit, takes high power gain and high linear LDMOS tube amplifier module design

Low power consumption super linear design, improves the transmission power of the transmitter and reduce the nonlinear distortion

Support AGC function, with sustained power output, to approve the transmitter has good stability and reliability

Support MFN and SFN system

LED on the front panel supporting alarm and signal monitor

Air cooling system with low consumption and low noise

 Multi lightning protection design, good protection for whole equipment.

24-hour working unmanned

Easy to install, user-friendly design

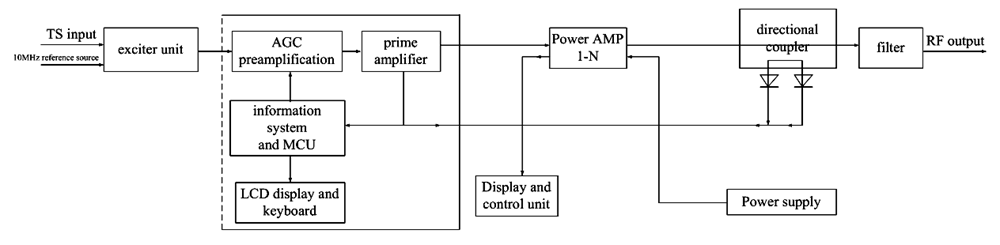

System Diagram

dvb t2, dvb t transmitter system

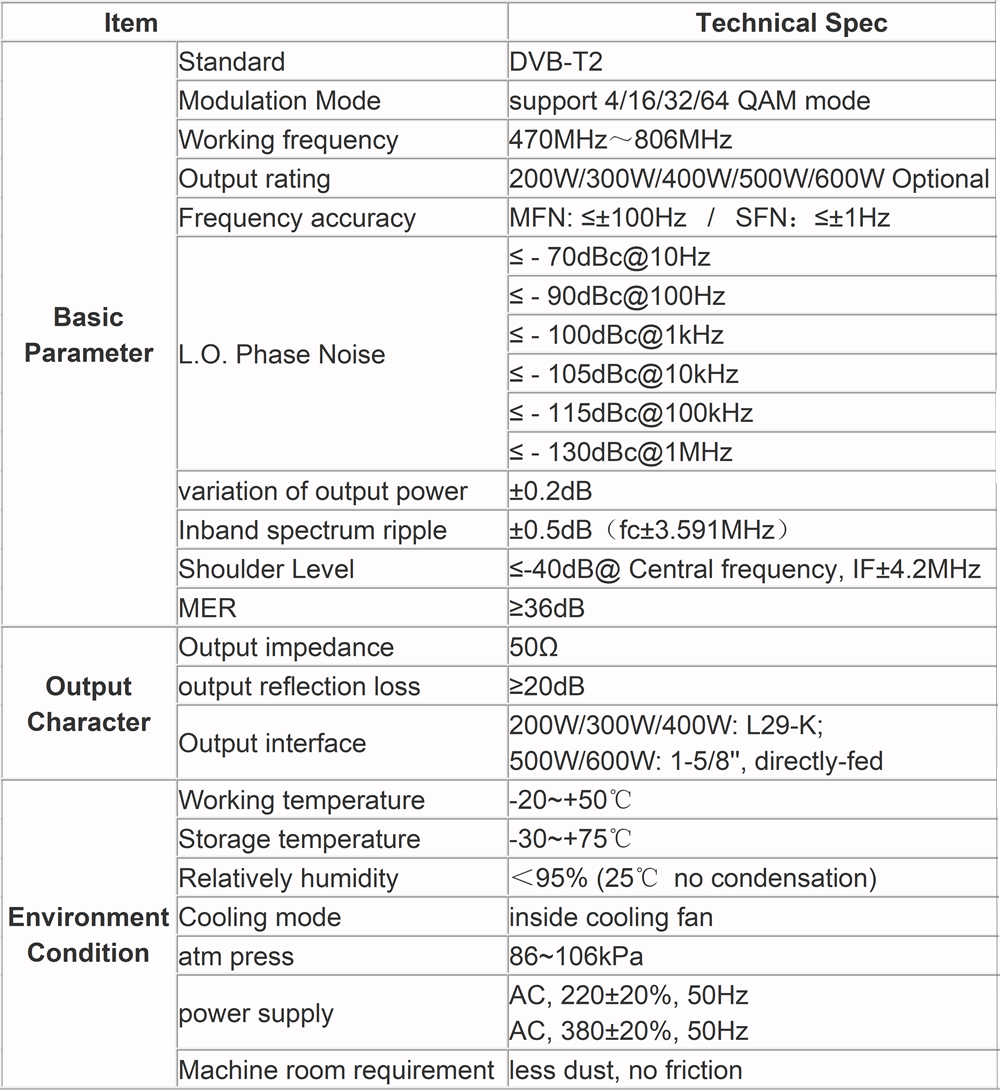

Technical Parameter

data sheet for digital transmitters broadcast

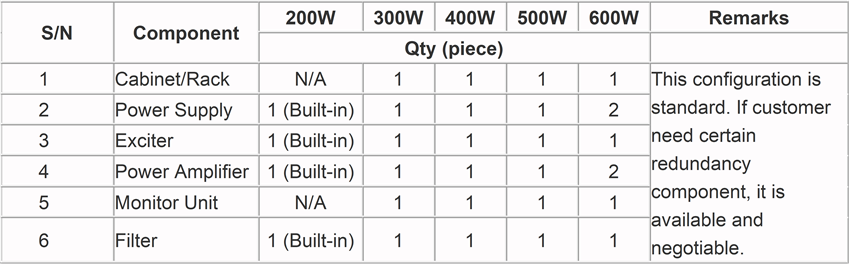

Main Components List

main components list for broadcast wireless transmiterDevices-Recommend

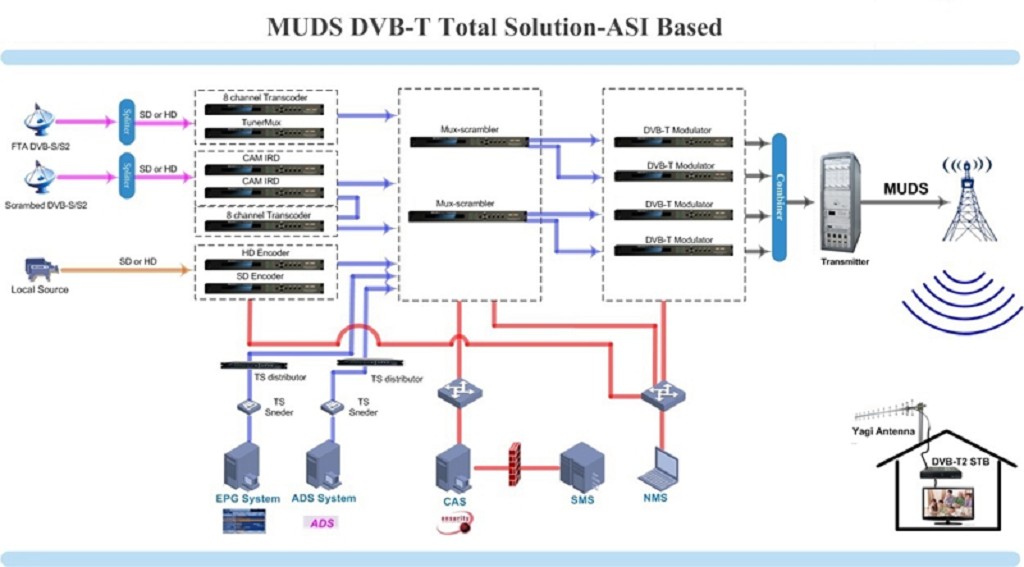

Completed DVB T/T2  Terrestrial Transmission System :

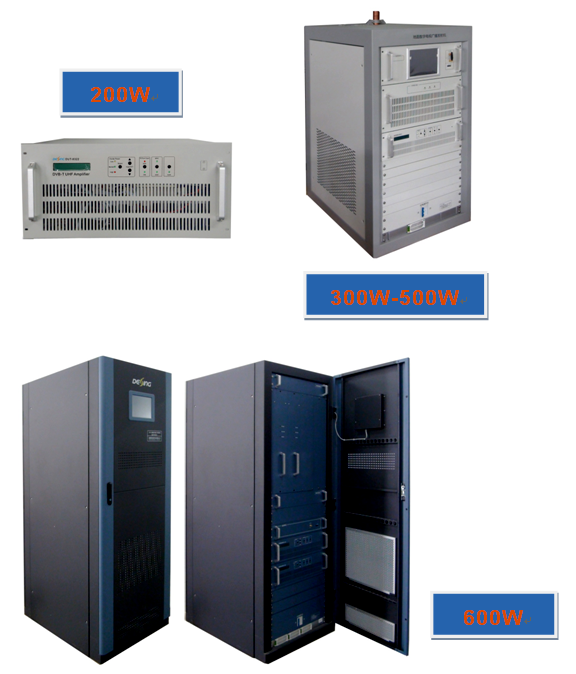

If you need bigger power 800~3Kw watts output:


wireless transmiter for broadcast

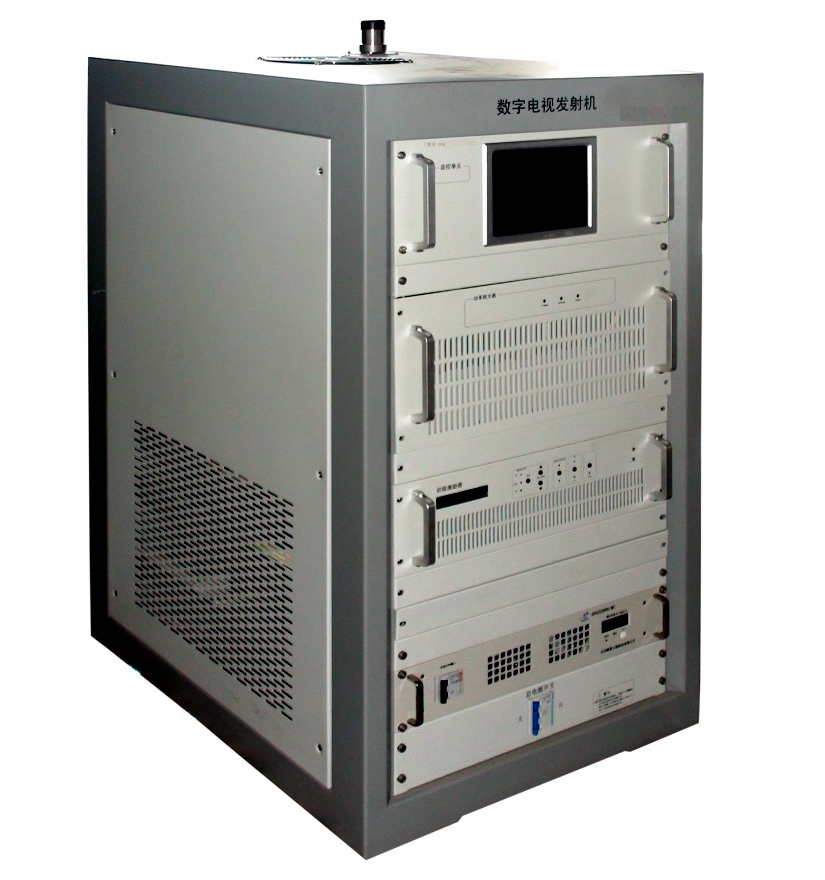

photo for dvb t2 dvb t transmiter
