DVB T2 Broadcast TV Transmitter (800~3000Watts)
DVB T2 Broadcast TV Transmitter (800~3000Watts)

DVB T2 Broadcast TV Transmitter (800~3000Watts)

Product ID : ST3000
Product Attributes :

Power Output with 1500W/2000W/2500W/3000W optional

Power Output with 800W/1000W/1200W optional

Product Description


ST3000 is a professional DVB-T2 digital TV transmitter, that gives sustained power output with 800W/1000W/1200W and 1500W/2000W/2500W/3000W optional. Its compact structure design has greatly saved space for your room. The frequency range of the ST3000 broadcast transmitter is from 470MHz~806MHz. This DVB T2 transmitter has a very high linear and high reliability as it takes high gain and high linear LDMOS tube amplifier module. Furthermore, it supports the AGC function to keep sustained power output. We are always ready to meet customer requirements by making it available to output signal carrier or multi-carrier, adapt to signal channel and broadband transmission.

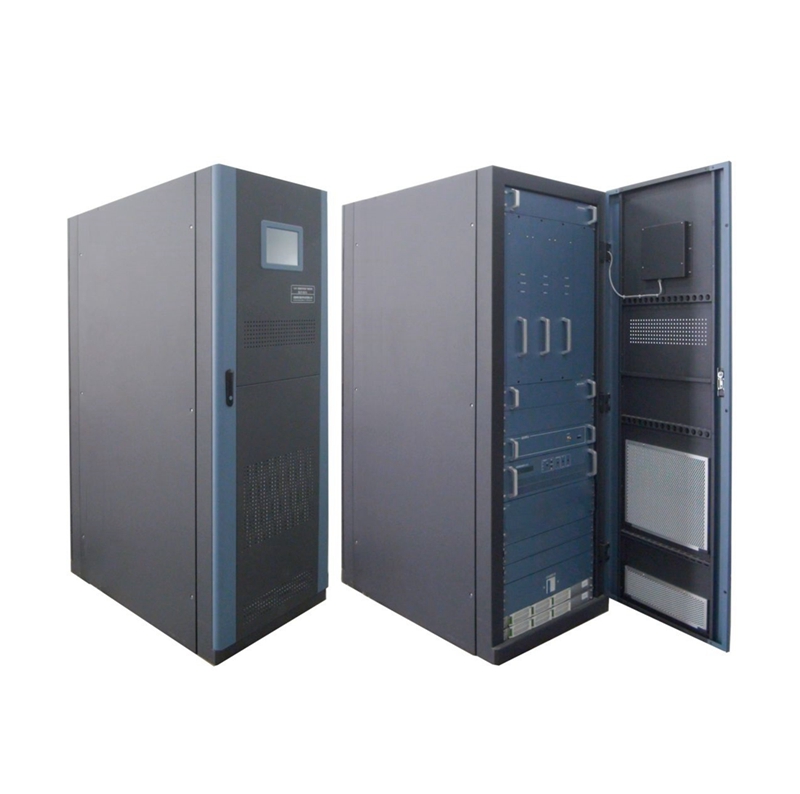

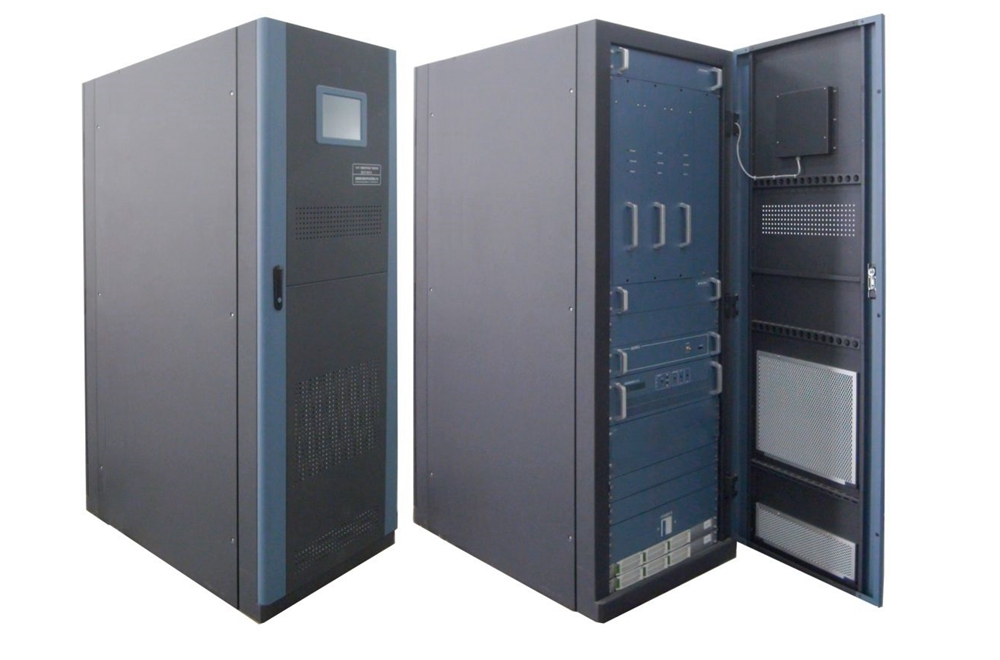

broadcast transmitter photo


Intelligent and modularized amplifier unit takes high power gain and high linear LDMOS tube

amplifier module design

 Low power consumption and super linear design to improve the transmission power, and reduce the

nonlinear distortion

AGC function with sustained power output to allow the transmitter good stability and reliability

Support MFN and SFN system

Support fault diagnosis function

Full digital front panel control, easy operation.

LED on the door supporting alarm and signal monitor

 Stabilized-power supply with wide range of voltage and high efficiency

Cooling system with low consumption and low noise

Multi lightning protection measures, good protection for whole equipment.

24-hour working unmanned, user friendly design

Easy to install, elegant appearance

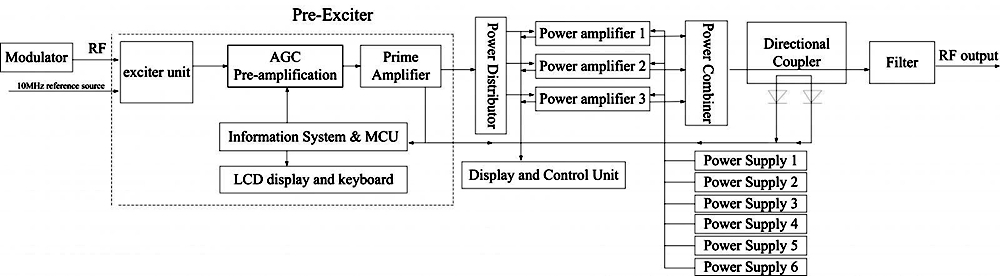

Principle Chart

principle chart for broadcast transmiter

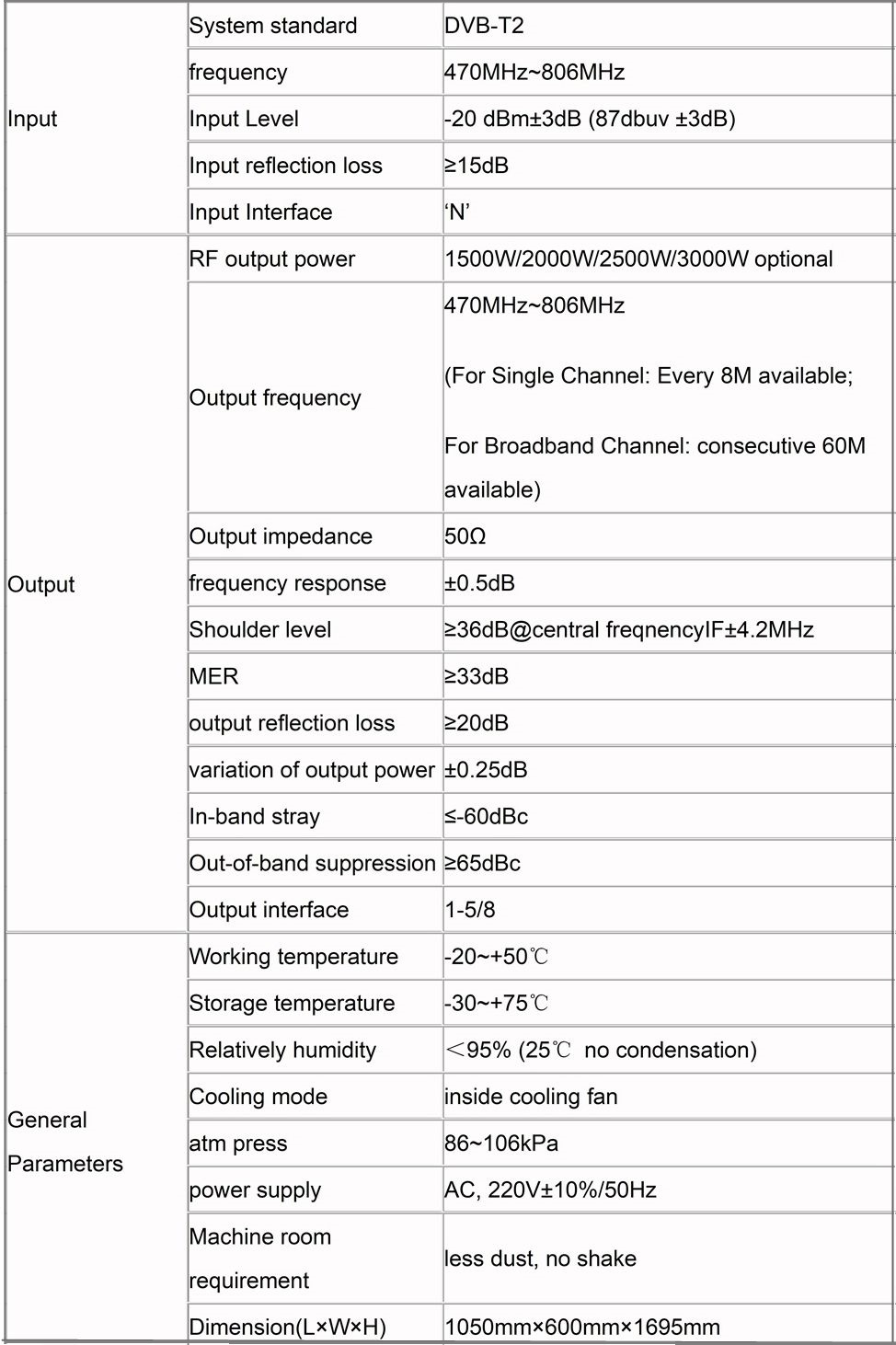

Technical Parameter

data sheet for tv wireless transmitter

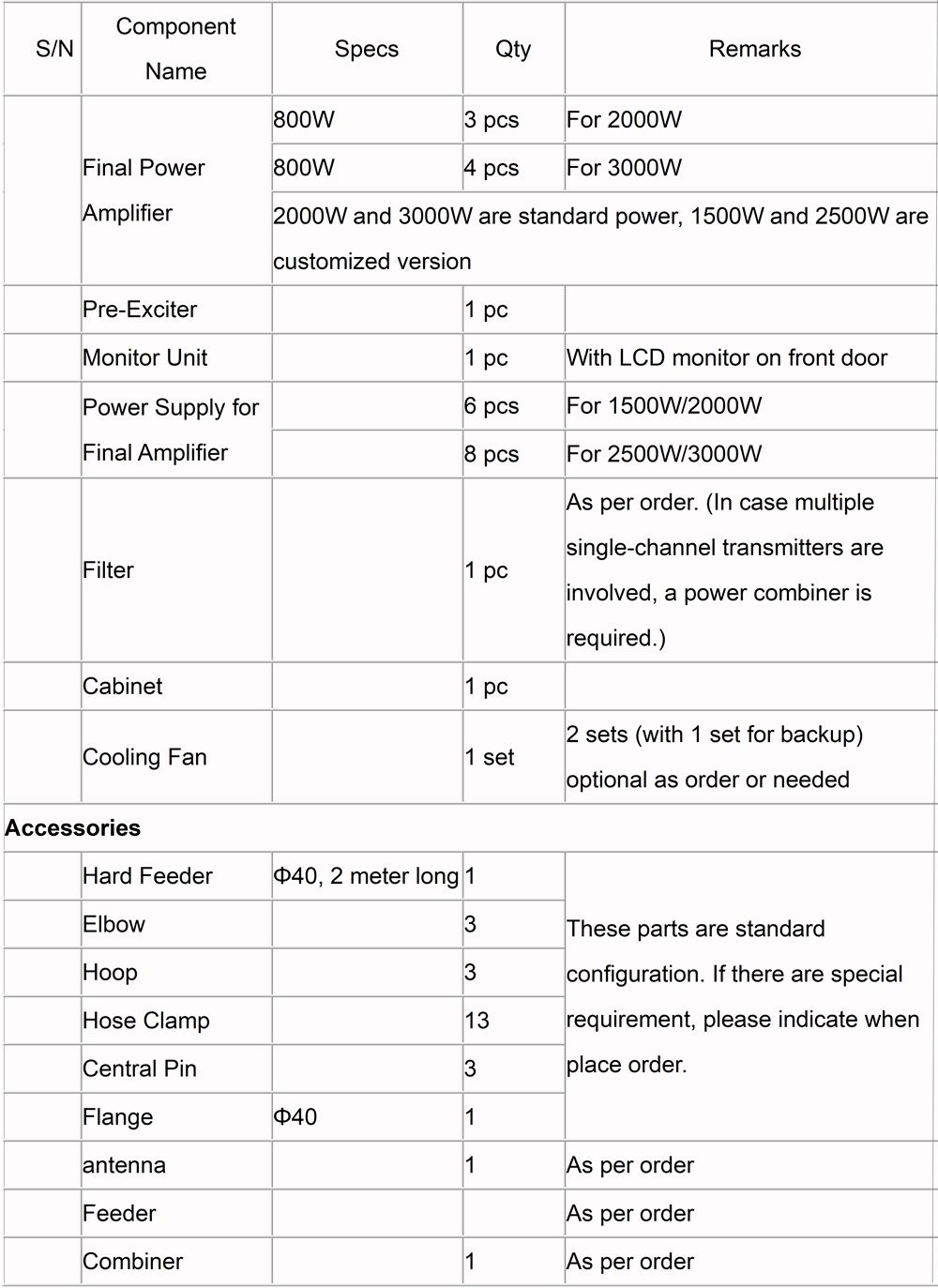

Main Components List

dvb t2 transmitter accessories

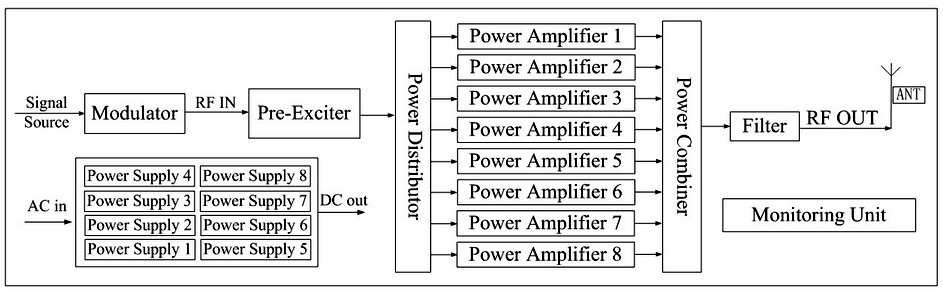

System Diagram

broadcast transmitter system connecction

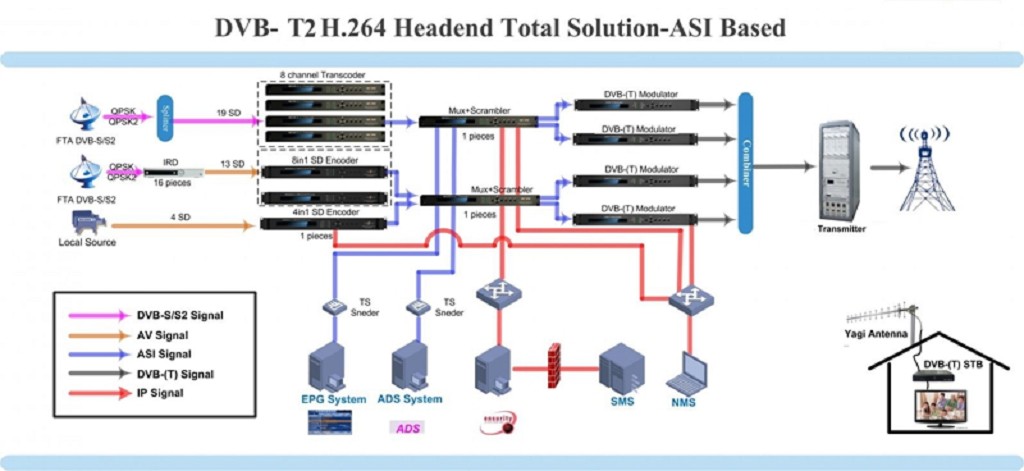

Completed DVB T/T2  Terrestrial Transmission System :

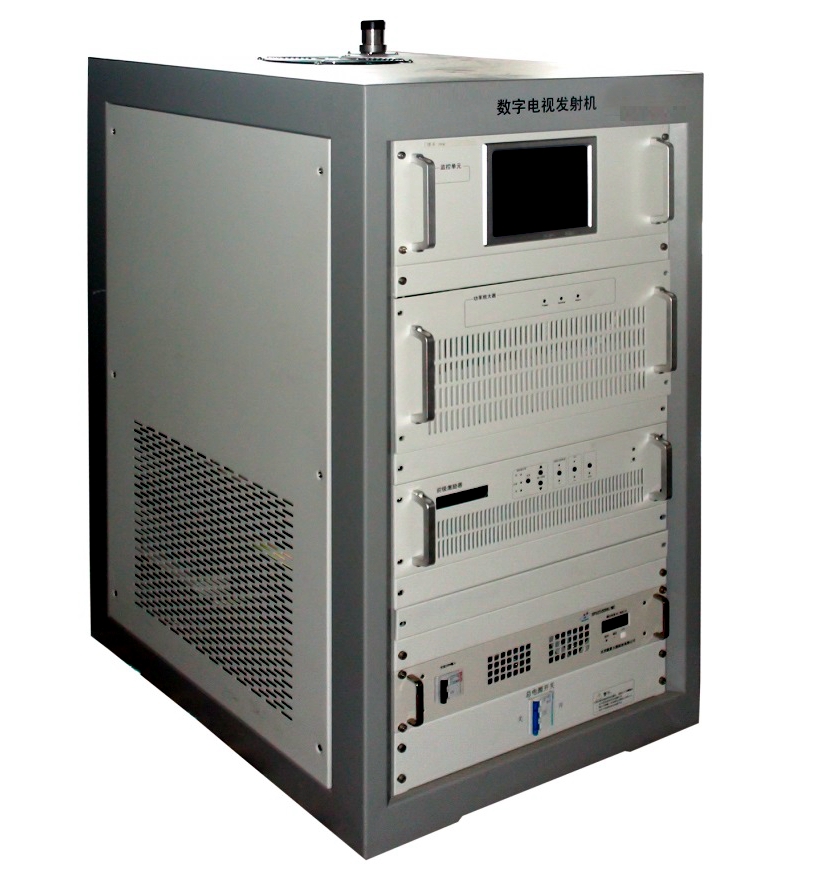

If you need power 200~600 watts or smaller output:

wireless transmitter for tv system.jpg

tv transmitter.jpg
