DVB-T/T2/ATSC 10W-100W Digital Transmiter
DVB-T/T2/ATSC 10W-100W Digital Transmiter

DVB-T/T2/ATSC 10W-100W Digital Transmiter

Product ID : ST100
Product Attributes :

Output DVB-T/T2/ATSC 10W~100W Digital

Product Description


ST100 is a professional DVB-T/T2/ATSC digital Television transmiter, which gives sustained power output. Its compact structure design has greatly saved space for your room.

This DVB transmitter is applicable to both SFN and MFN network modes and supports both signal-carrier mode and multi-carrier mode. Signal channels and broadband transmission are supported. The frequency range of ST100 is from 470MHz~806MHz. The 10w~ 100w transmitter has a very high linear and high reliability as it takes high gain and high linear LDMOS tube amplifier module. Furthermore, it supports the AGC function to keep sustained power output. ST100 DVB-T/T2/ ATSC transmitter can be widely used in HD/SD digital TV signal transmitting and broadcasting systems.

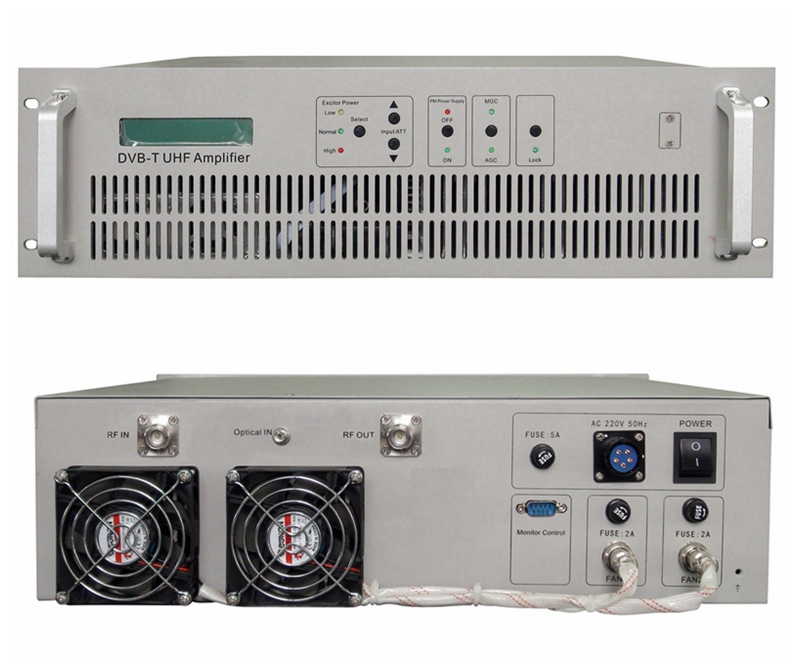

television transmitter UHF Amplifier

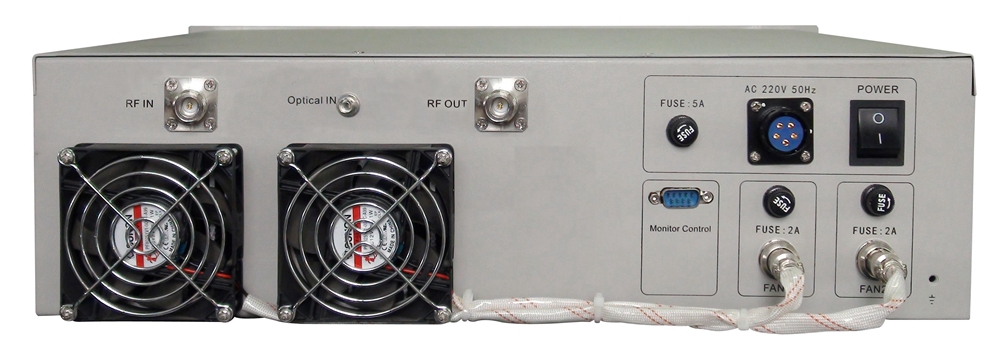

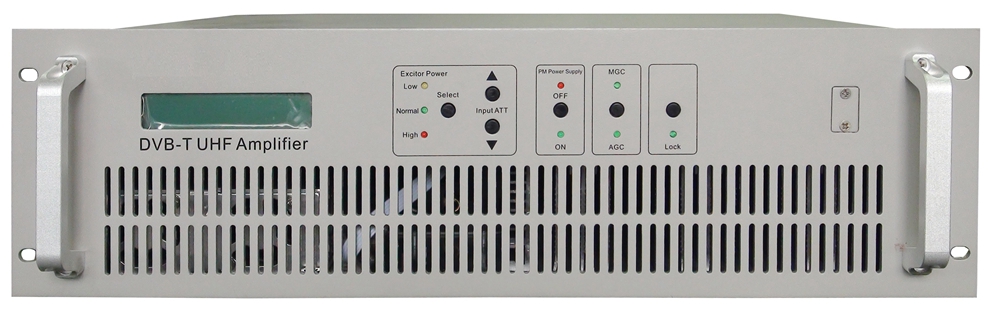

100w transmitter indoor Amplifier photo


Enhanced signal transmission quality

Intelligent and modularized amplifier unit takes high power gain and high linear LDMOS tube amplifier module design

Low power consumption and super linear design to improve the transmission power, and reduce the nonlinear distortion

Support AGC function with sustained power output to allow the transmitter good stability and reliability

LED on the front panel support alarm and signal monitor

Stabilized power supply with wide range of voltage and high efficiency

Multi lightning protection measures, good protection for whole equipment.

24-hour working unmanned, user-friendly design

Support fault self-diagnosis

Support MFN and SFN system

Easy to install, elegant appearance

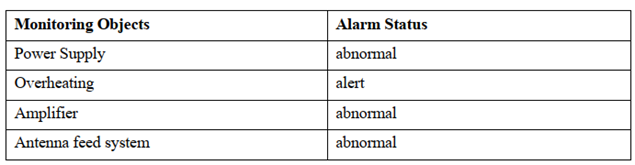

                                                    Monitoring Objects and Alarm Status

dvb t dvb t2 atsc transmitter indoor status

Technical Parameter

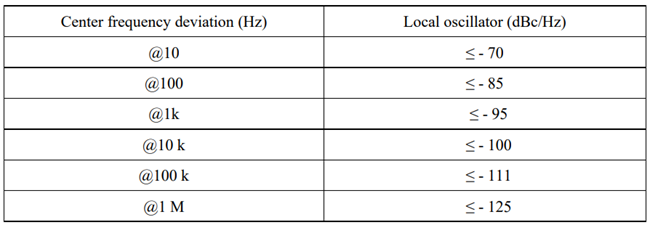

                                                                   Phase noise

Phase noise for dvb transmitter Amplifier

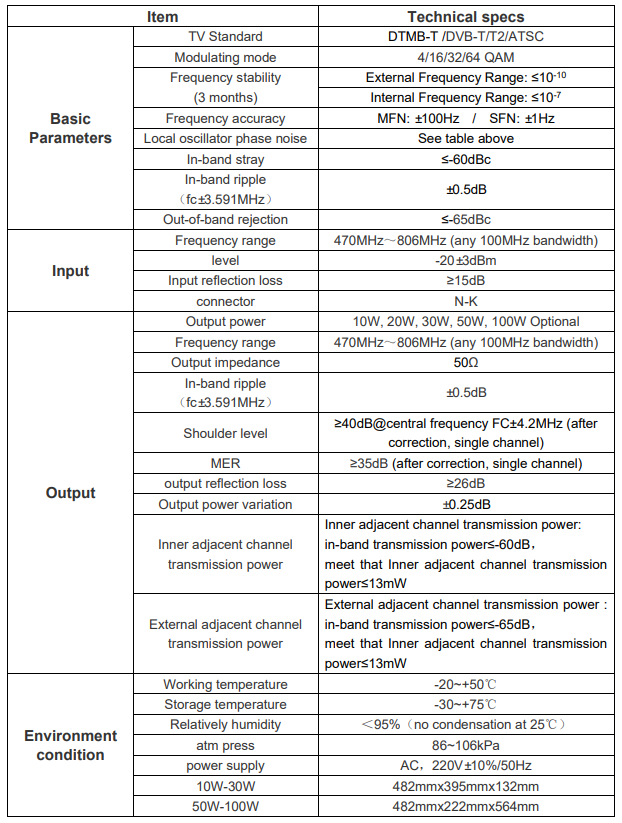

                                                     Electrical Parametersdata sheet for 100w transmitte indoor

Optical Signal Parameters

optical signal parameters for transmiter


Completed DVB T/T2  Terrestrial Transmission System :

If you need bigger power 800~3Kw watts for Outdoor:

dvb transmiter for broadcast

compare with 100w transmitter amplifier
