Input: SFP/Data port ,192 IP(or 512 IP) SPTS or MPTS
Output: 8 or 16 RF(DVB-T/DVB-C/ISDB-T/ATSC)
Outline

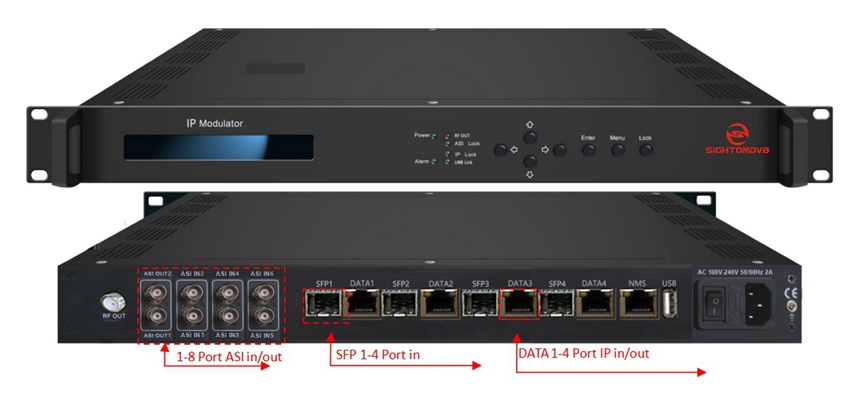

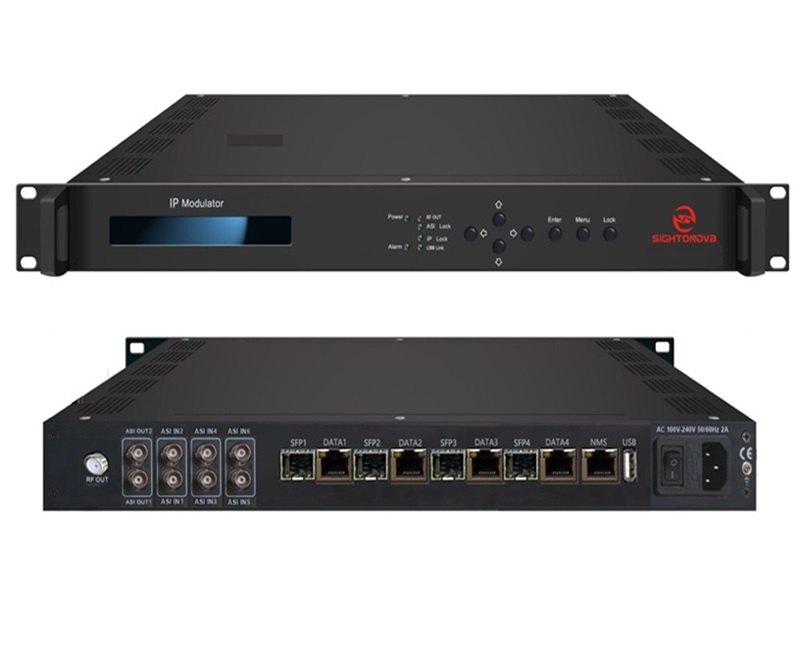

S840d-1 IP modulator has 8 (or16) multiplexing channels and ISDB-T/DVB-T/DVB-C modulating channels. It supports a maximum of 192 (or 512) IP input through the 8 GE ports and 8 (or16) ISDB-T non-adjacent-carriers (50MHz~960MHz) output through the RF output interface. A high integrated level, high performance, and low cost also characterize the device. This is very adaptable to a newly generation DTV broadcasting system
Features
l 4GE SFT and 4 DATA ports for data input and output
l Max 840Mbps for each GE input
l Supports accurate PCR adjusting
l Supports CA filtering, PID remapping, and PSI/SI editing
l Supports up to 256 PIDS remapping per channel
l Support 8/16 IP output through Data1 ~Data4 over UDP/RTP/RTSP--Version I
Support 16 IP output through Data1 & Data2 over UDP/RTP/RTSP--Version II
l 8 (or 16) non-adjacent carriers output, compliant to ISDB-Tb/DVB-T/DVB-C (ARIB STD-B31)
l Support Web-based Network management

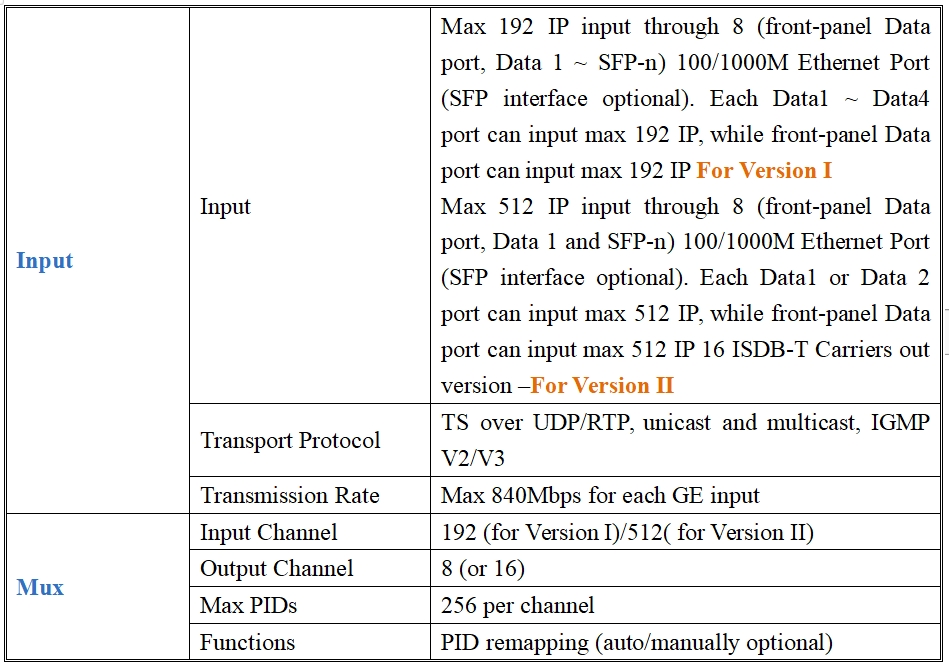

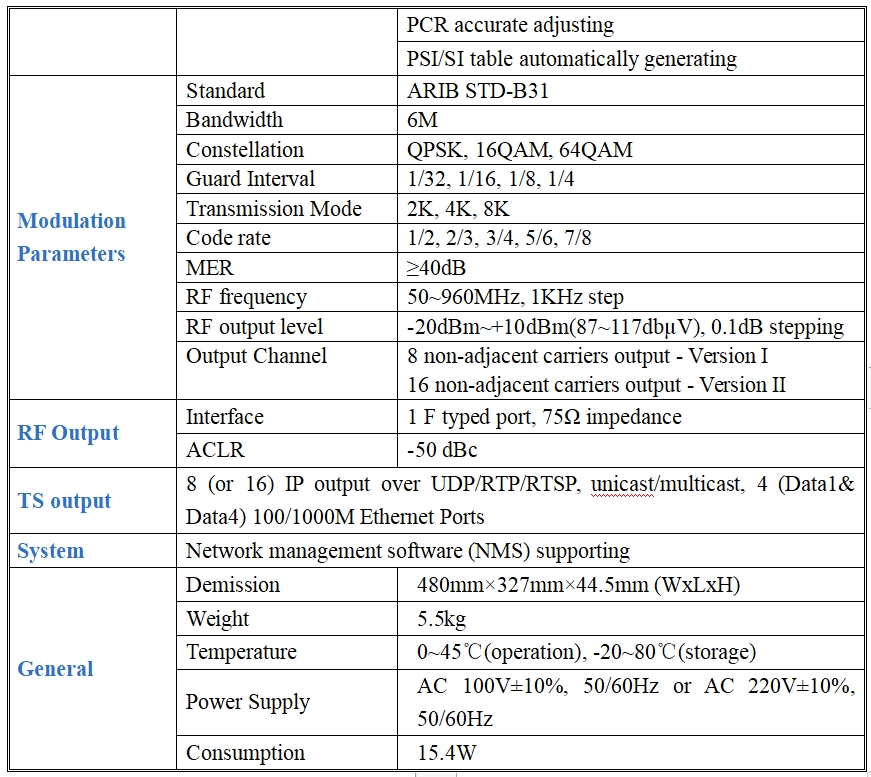

Technical Parameter

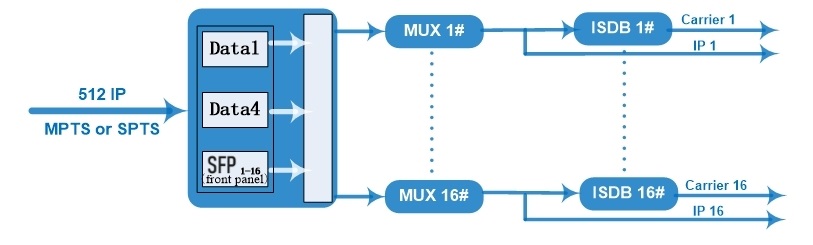

Principle Chart
Version I - For 8 carriers out:
Version 2 - For 16 carriers out:
