Input: HDMI and 1Channel audio input
Encoding: H.265/H.264
Resolution: up to 4K-3840*2160
Support: HTTP, RTSP, RTMP, ONVIF, HLS, UDP multicast, unicast
Outline
L7520-4K stream encoder input 1-channel up to 4K-3840*2160 HDMI, 1 channel LINE-IN audio. It has dual stream output with H.265/H.264 format, Audio: MP3, AAC, and G711 format. The configuration of the 4k stream encoder could be freely adjusted according to the need. It is the best encoder for youtube with 4k streaming output for the streaming platforms. The IP output streaming supports HTTP/RTSP/TCP/RTMP/UDP/ONVIF/HLS transport protocols. Compare with the software encoder, the best live streaming hardware encoder output stream video is more steady and in real-time.
Features
1. Compatible to different network protocol: RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS unicast and multicast( RTMP support adding users and changing passwords)
2. Standard hot shoe for installed to the camera
3.Max Resolution:3840*2160/2560*1440/2048*1152/1920*1080P
4. Support the Main TS stream and the sub-TS stream use in different network protocols for transmission
5. Coding Standard: Baseline profile/ main profile/high profile, H.265 main profile
6. Transmission: TCP, UDP 100M for configuration. 1000M for transmission( RJ45 Duplex network port)
7. Easy operation with Web management
8. Text/Image OSD
9. DHCP gaining IP automatic, One-key recovery, upgrade, and remote maintenance
10. Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
11. Support build-in or external methods, support left and right sound channels, support audio gain, and be able to turn the volume individually
12. Low power consumption design
13. Reliable and Cost-effective, Free Unlimited Tech Support and 3 Years of warranty

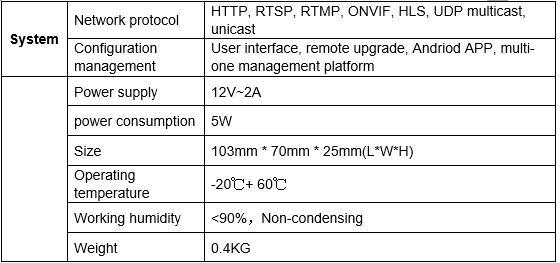

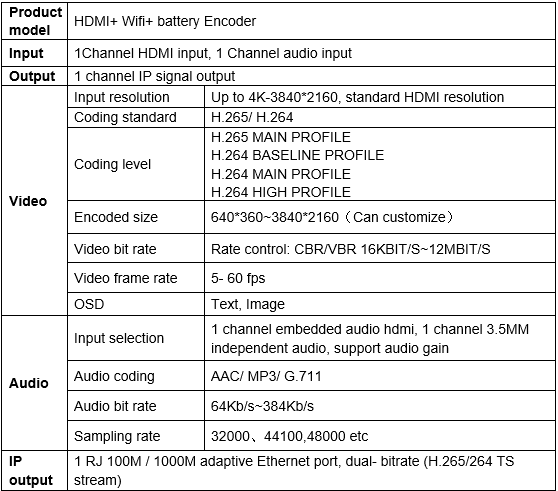

Technical Parameter
Devices-Recommend
