hdmi streaming encoder
hdmi streaming encoder

hdmi streaming encoder

Product ID : L7520-H1
Product Attributes :

Input: HDMI or HDMI+AV optional


Encoding: MPEG-4 AVC/H.264

Control: Web Management

Product Description

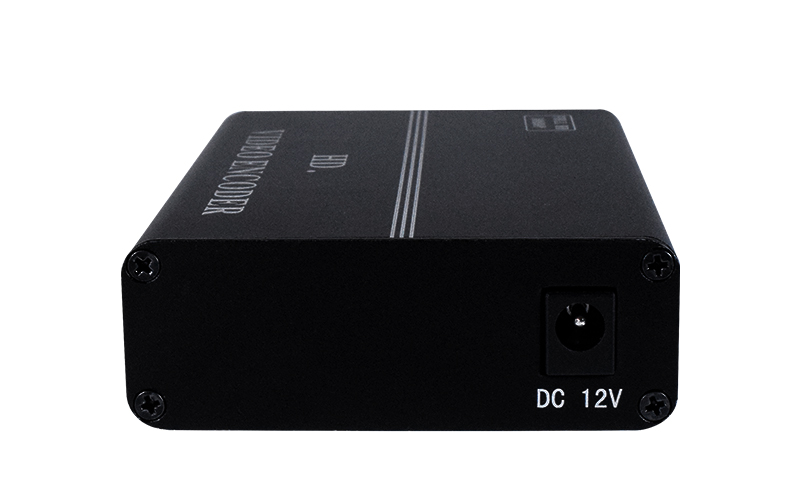

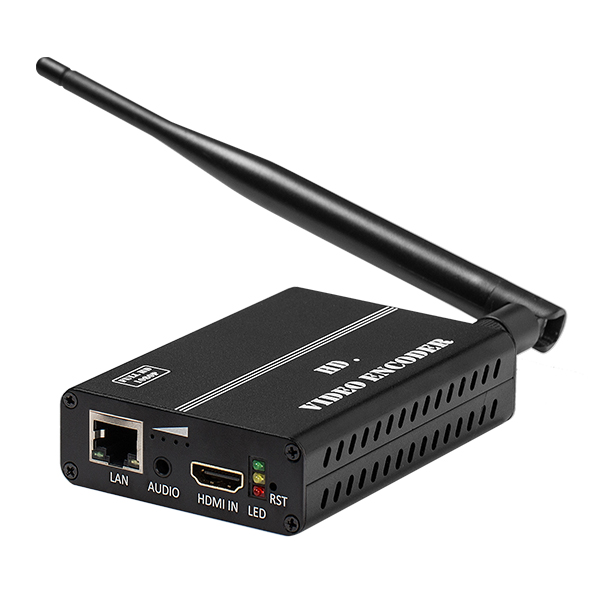

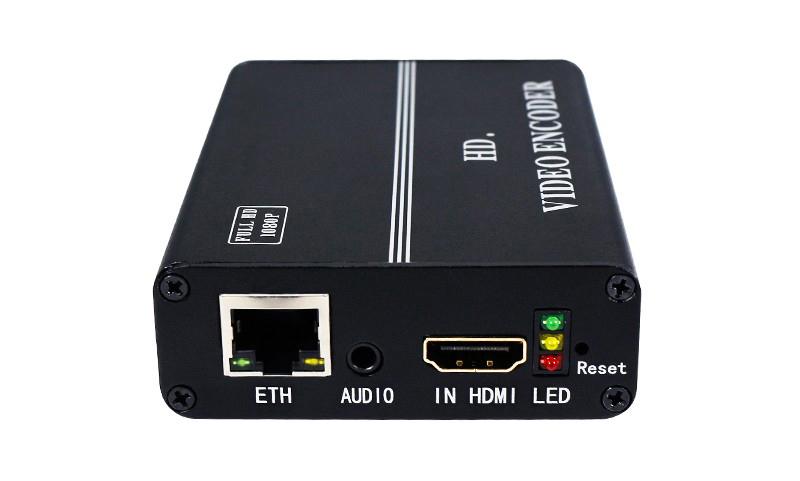

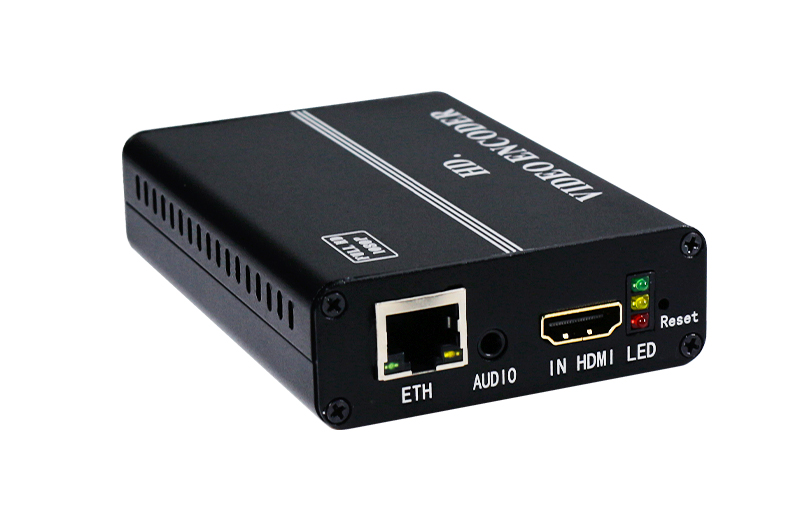

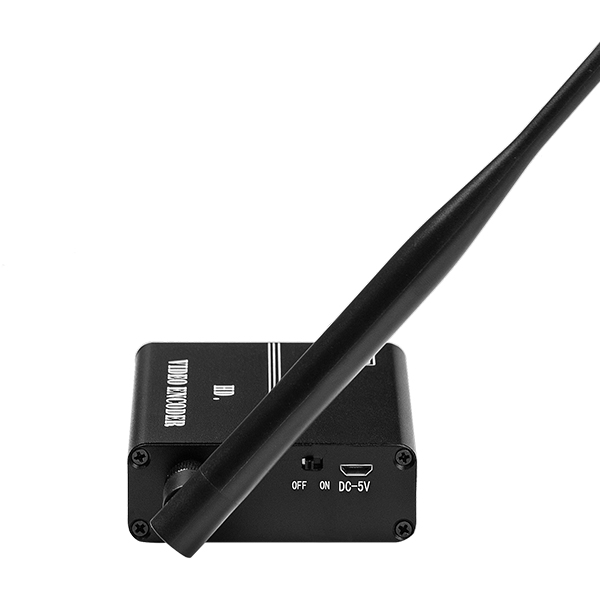

L7520-H1 hdmi streaming encoder is a professional audio and video encoder, which supports 1-channel audio and video capture feature high-definition HDMI, 1 3.5MM independent audio interface acquisition, dual streaming H.264 encoded output format, audio MP3, AAC, G711 formats. Compared with software encoders, the hardware encoder output steady high-quality streams to streaming platform or stream to YouTube.  It is popular for content creators it can stream video content real time.

The code rate can be freely adjusted according to the need. The best encoder for live streaming is highly integrated and cost-effective. The streaming encoder supports HTTP/RSTP/RTP/RTMP/UDP/ONVIF/HLS transport protocols. And support for external audio input. It is easy to install, and plug play, and there are no computer hardware compatibility issues.

best encoder for live streaming photo.jpg

youtube encoder photo.jpg

youtube encoder.jpg

best encoder for live streaming.jpg

hdmi streaming encoder photo.jpg

Key Features

1. Compatible to different network protocols: RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS unicast and multicast( RTMP support adding users and changing passwords)

2. Support the Main TS stream and the sub-TS stream use in different network protocols for transmission

3. Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)

4. Easy operation with Web management

5. OSD rolling, images superimposing

6. DHCP gaining IP automatic, One-key recovery, upgrade, and remote maintenance

7. Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

8. Support build-in or external methods, support left and right sound channels, support audio gain, and be able to turn the volume individually

9. Low power consumption design

10. Reliable and Cost-effective, Free Unlimited Tech Support and 3 Years of warranty

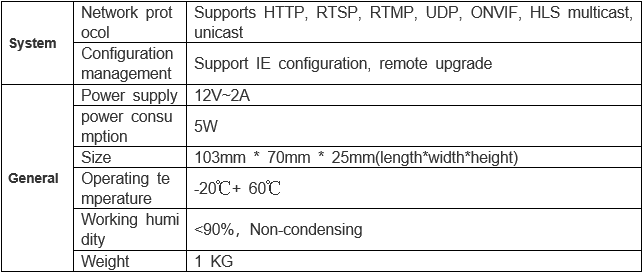

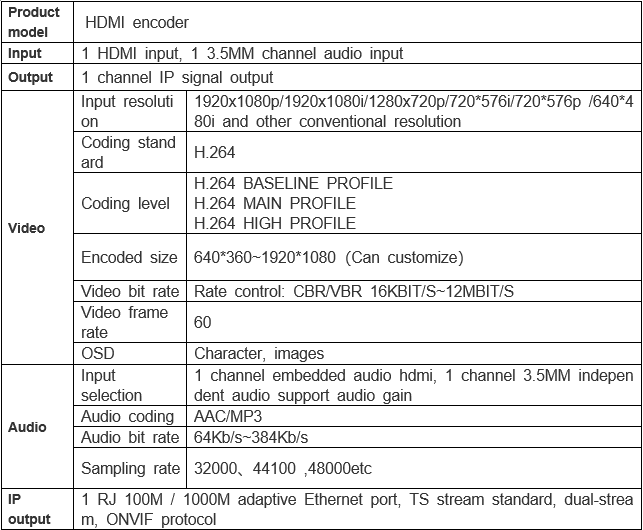

Technical Parameterdata sheet for hdmi streaming encoder .png

data sheet for youtube encoder.png
