h265 hdmi live stream encoder

Outline

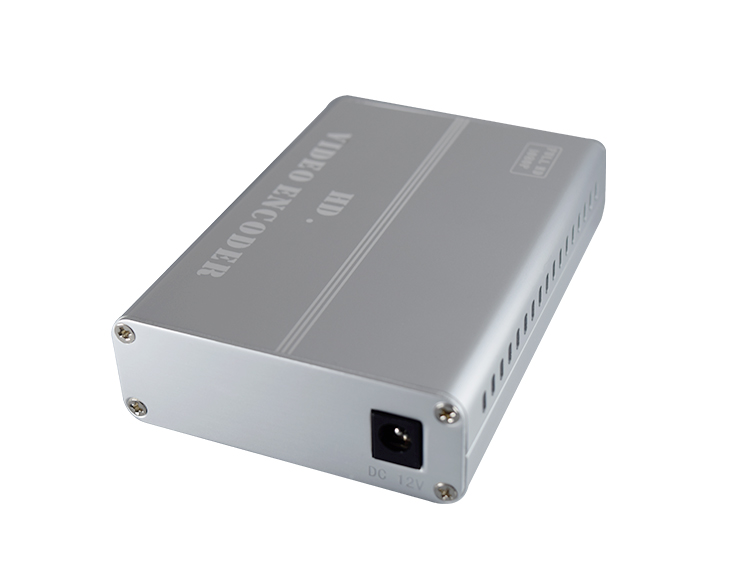

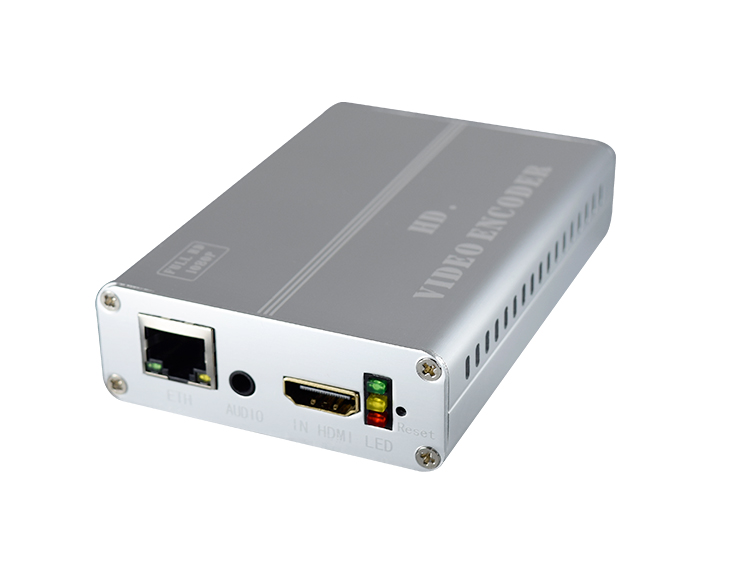

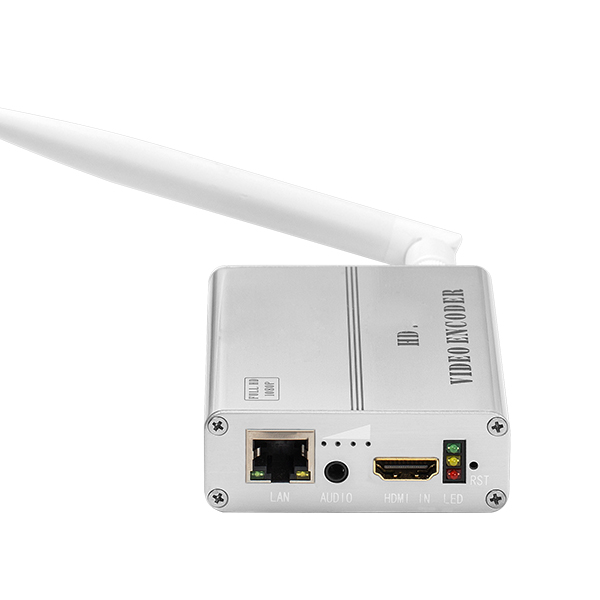

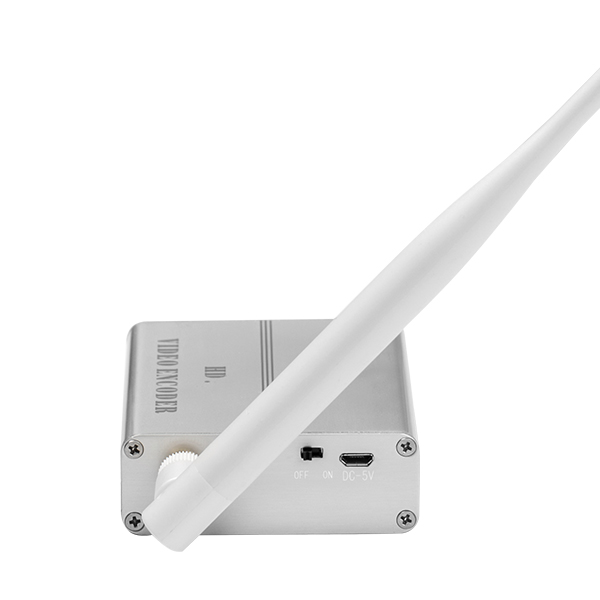

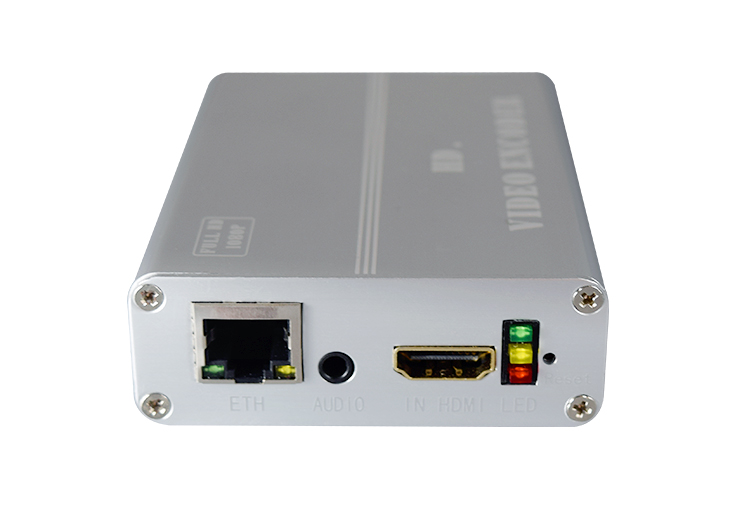

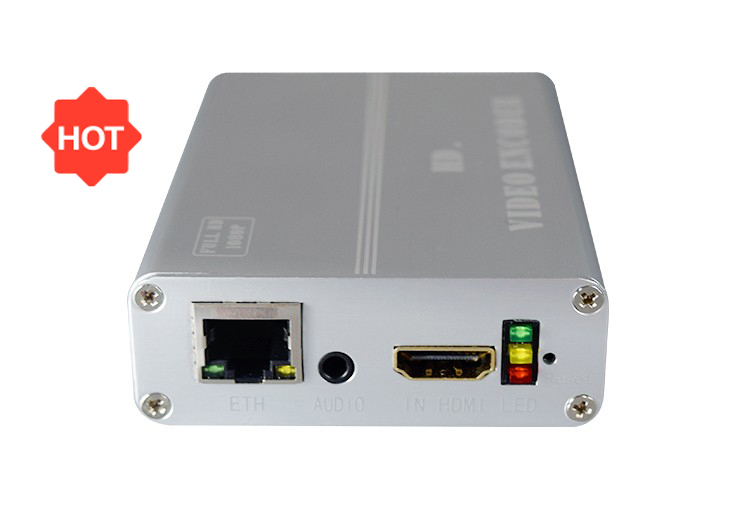

L7520-H2 h265 HDMI live stream encoder is a professional audio and video encoder, which supports 1-channel audio and video capture feature high-definition HDMI, 1 3.5MM independent audio interface acquisition, dual streaming H.265/ H.264 encoded output format, audio MP3, AAC formats. It could be freely adjusted according to the need. The encoder for live streaming is highly integrated and cost-effective. Support HTTP / RTSP / RTP / RTMP / UDP protocols. It is easy to install, and plug play, and there are no computer hardware compatibility issues. The encoder receives HDMI video inputs, and output real time live stream with high-quality video for YouTube, Facebook live, or other platforms.

Features

1. Compatible to different network protocols: RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS unicast and multicast( RTMP support adding users and changing passwords)

2. Support the Main TS stream and the sub-TS stream use in different network protocols for transmission

3. HDMI input， H.265 The latest architecture

4.1 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol

5. Easy operation with Web management

6. OSD rolling, images superimposing

7. DHCP gaining IP automatic, One-key recovery, upgrade, and remote maintenance

8. Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

9. Support build-in or external methods, support left and right sound channels, support audio gain, and be able to turn the volume individually

10. Low power consumption design

11. Reliable and Cost-effective, Free Unlimited Tech Support and 3 Years of warranty

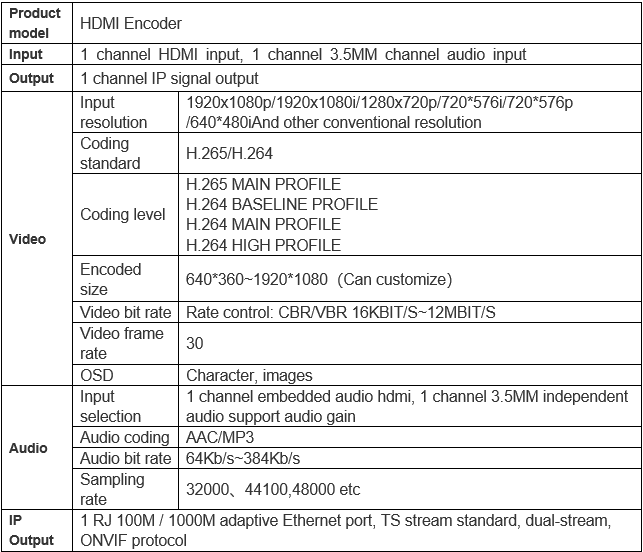

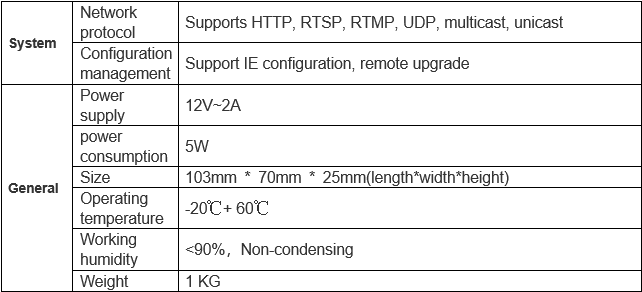

Technical Parameter
