4G WIFI Camera Encoder with Battery
4G WIFI Camera Encoder with Battery

4G WIFI Camera Encoder with Battery

Product ID : STR-0098
Product Attributes :


Encoding: H.265 or H.264 for optional


Product Description

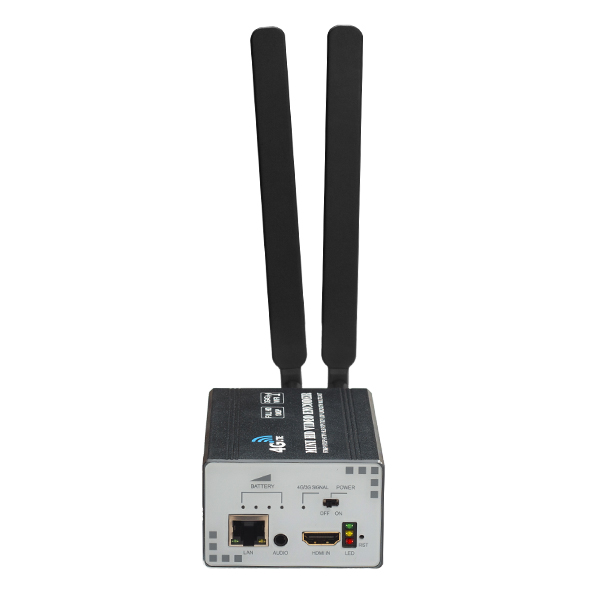

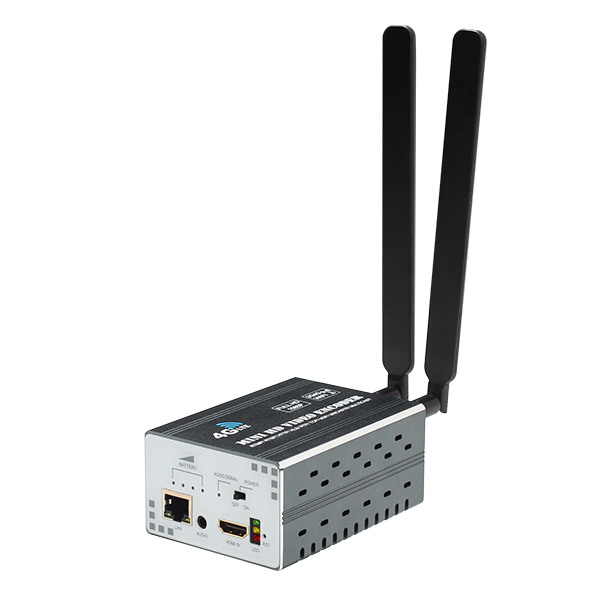

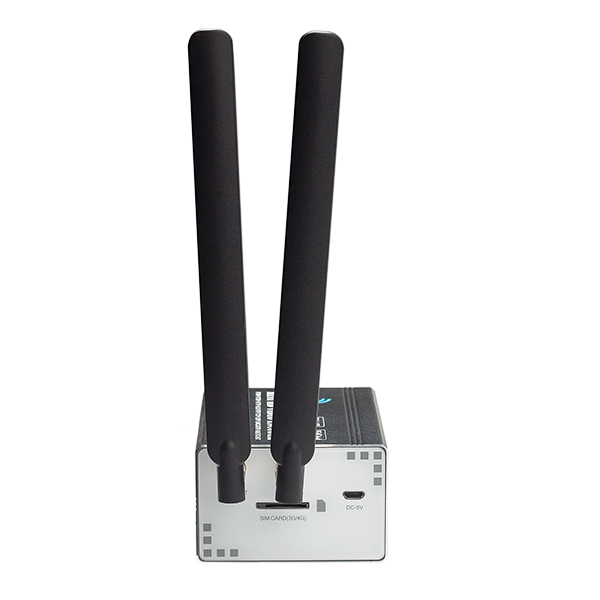

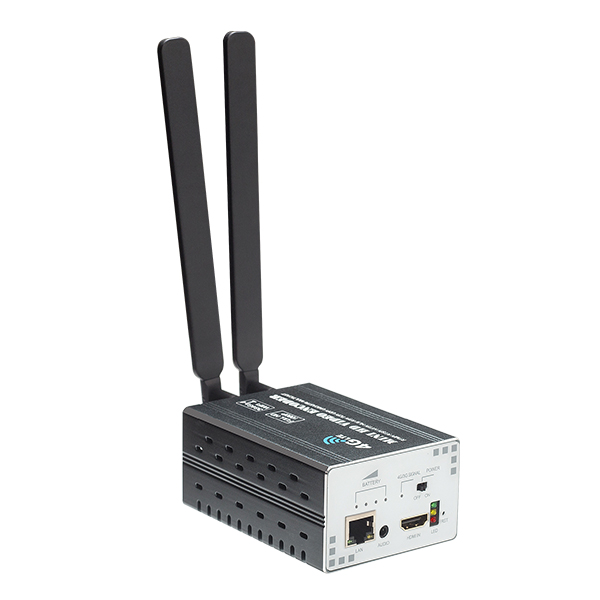

STR-0098 4G WIFI camera encoder receives audio and video with 1-channel HDMI(SDI) input, 1 channel 3.5MM independent audio input, dual streaming H.265/ H.264 encoded output, MP3, AAC output. The live streaming from the 4g bonding encoder is sent to the streaming platform or Youtube, Facebook, twitch, Wowza, Vmix, OBS…

Compare with the software encoder, the hardware encoder for live streaming is more steady, of higher quality, and real-time. The IP streaming support HTTP / RTSP / RTP / RTMP / UDP transport protocols.

The video encoders support 3G/4G/WIFI/Cable network options. It could be freely adjusted according to the need. The device is highly integrated and cost-effective. It is easy to install, and plug play, and there is no computer hardware compatibility issues.

camera encoder.jpg

4g encoder.jpg

wifi encoder.jpg

encoder 4g.jpg

Product Feature

1.Compatible to different network protocol: RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS unicast and multicast( RTMP support adding users and changing passwords)

2. 3G/4G/WIFI/Cable network options

3. Standard hot shoe base to match the camera

4. HDMI(or SDI) input,H.265 The latest architecture

5.Support Main TS stream and sub TS stream use in different network protocols for transmission H.264/H.265

6. Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)

7.Easy operation with Web management

8. OSD rolling, images superimposing

9. DHCP gaining IP automatic, One-key recovery, upgrade and remote maintenance

10.Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

11.Support build-in or external methods, support left and right sound channel, support audio gain, be able to turn volume individually

12.Low power consumption design, the battery is last 4-5 hours.

13.Reliable and Cost-effective, Free Unlimited Tech Support and 3 Years warranty

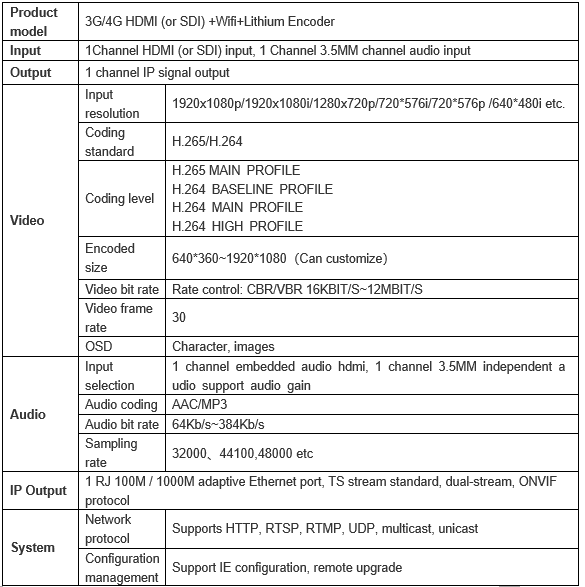

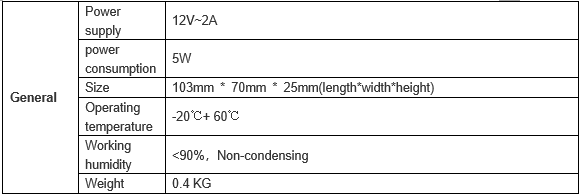

Technical Parameters

data sheet for camera encoder with battery

technical parameters for live stream video encoder

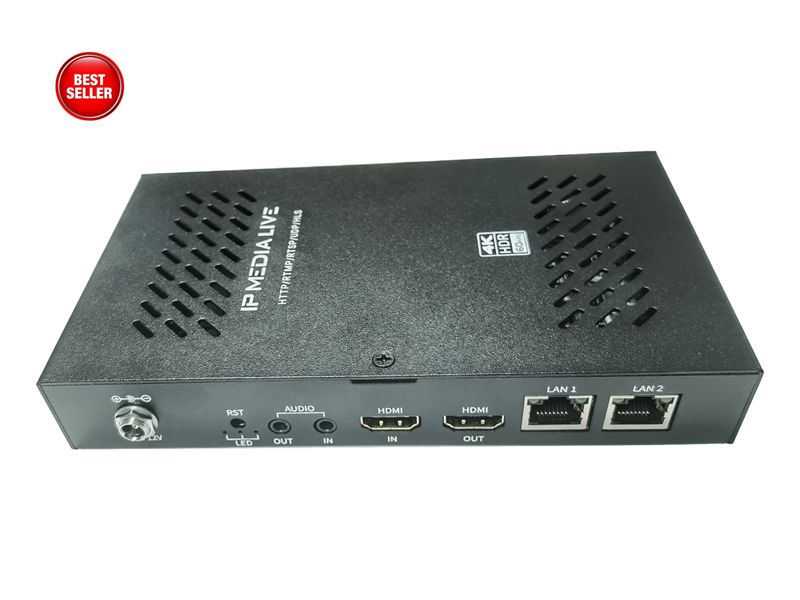

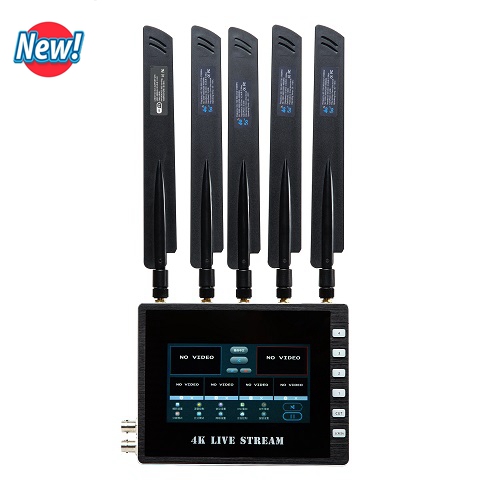

4g bonding encoder with 3 pieces SIM for a stronger signal strengthCompare with 4k-60p encoder:
cellular bonding encoder.jpg4k live stream video encoder.jpg
