Input: IP ( RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP), MPEG2, MPEG4
Output:1×HDMI(1×SDI),1×BNC, 1×audio, 1×AV

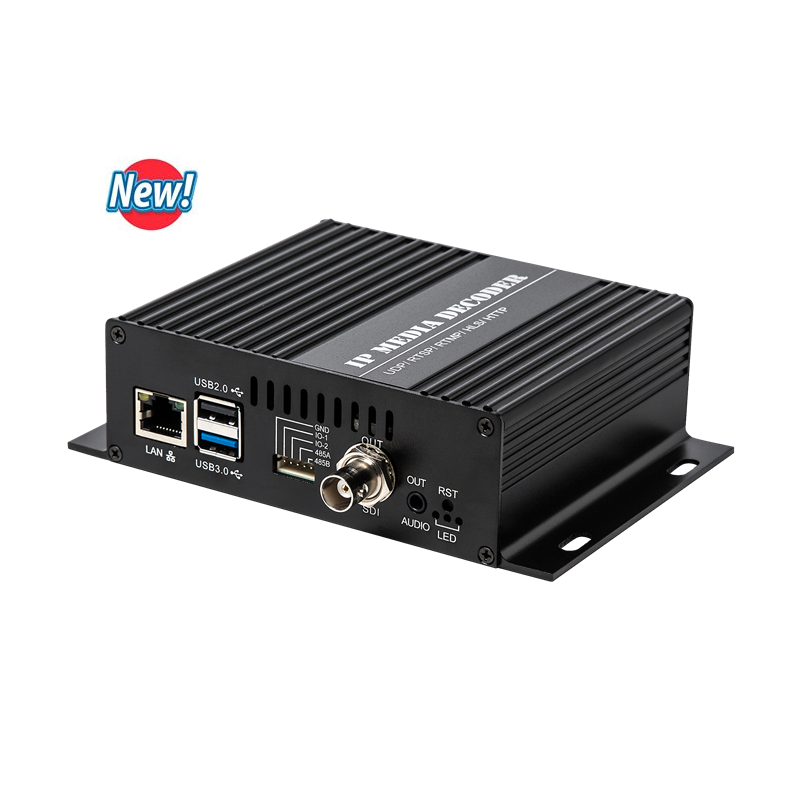

STT-1190H 1port ip input, 1port HDMI(1SDI) & 1port BNC/CVBS/AV/AUDIO output, 1ch audio output.Completely support 4K 60, 1080p 60 (No fluctuating),Support H.264/ H.265 RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP, MPEG2, MPEG4 decode.
Embedded hardware
Support 4 screens at the same time
Support RS485 output,IO input/output
Control multi encoder based on one computer
H.264/ H.265, RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP/P2P input
Output: HDMI+ BNC+ AV
Up to 4K 60 FPS output
Support rtsp/ http/udp/ rtmp/ hls/ rtp/srt
Multi-IP In (1. 4).
Output Up to HDMI 2.0
Low consumption

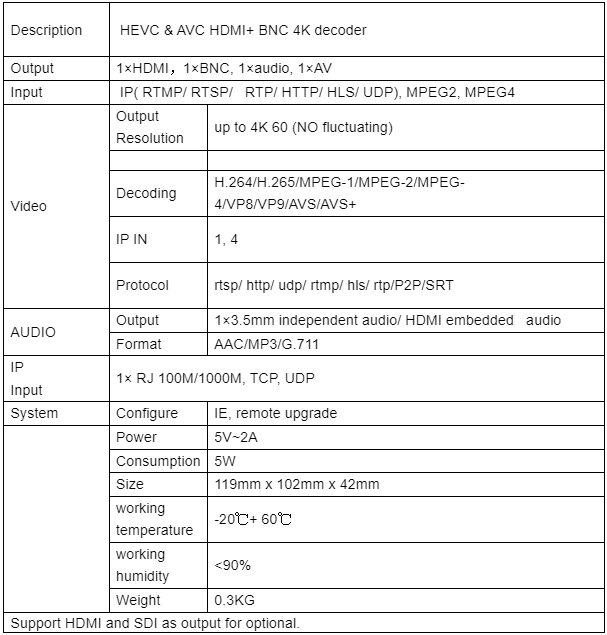

Technical Parameter
