SDI h265 church streaming encoder

Outline

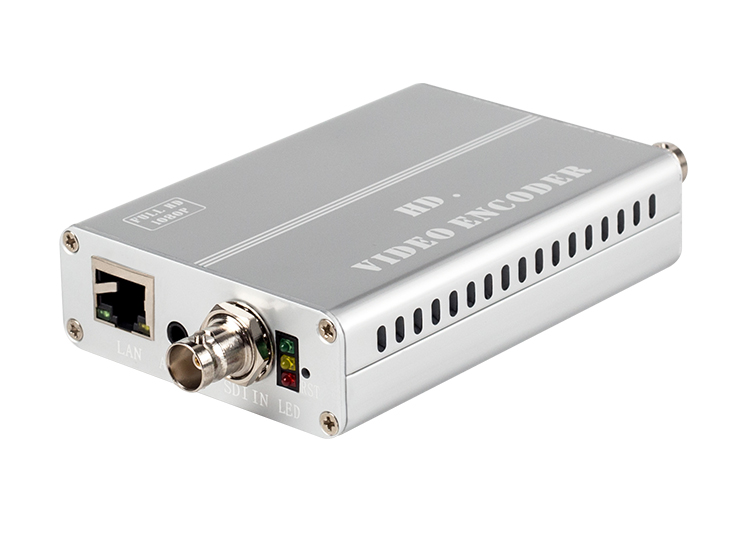

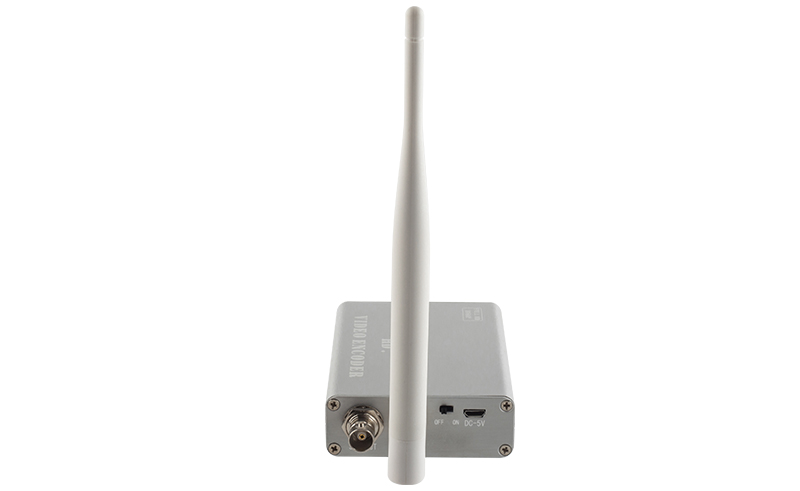

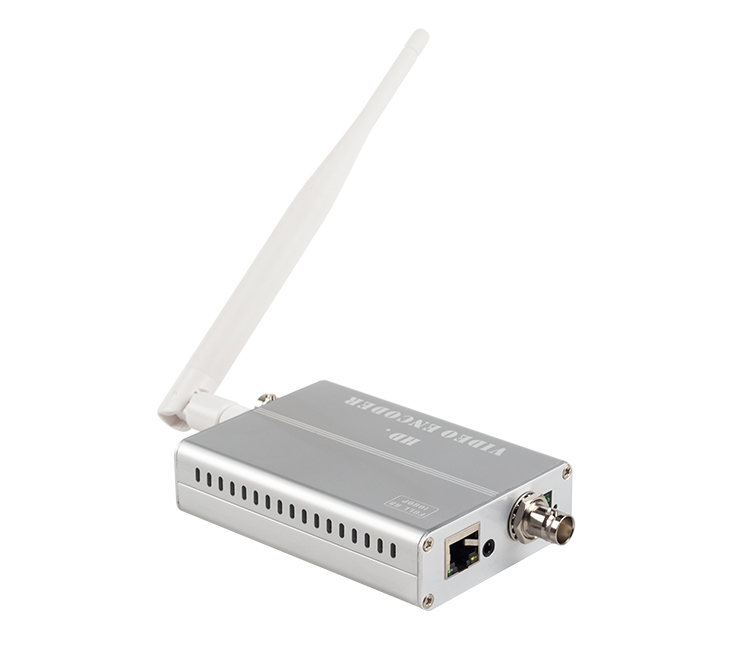

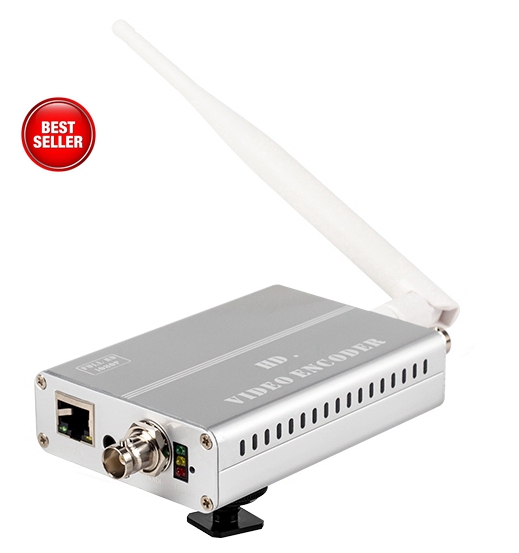

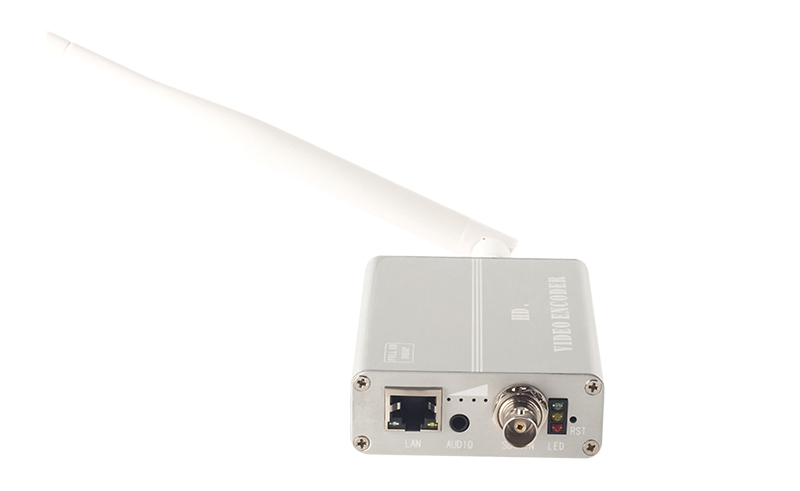

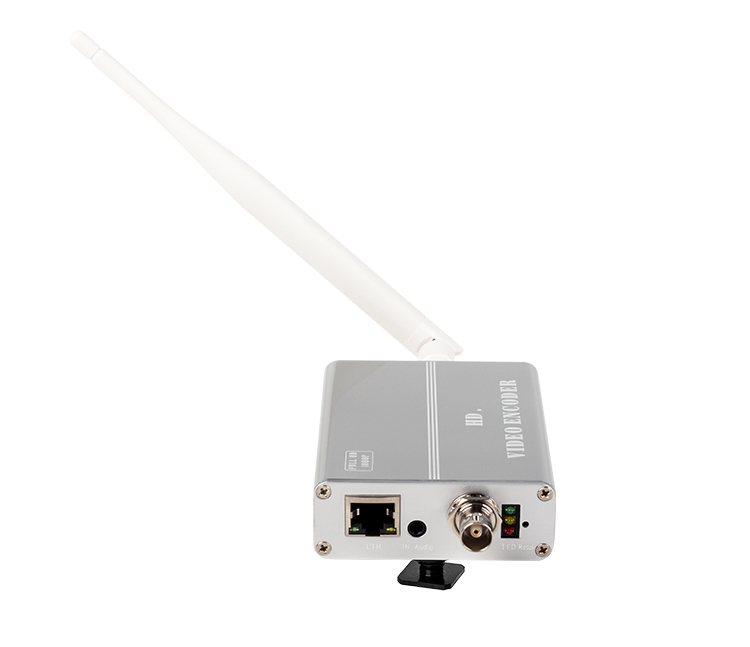

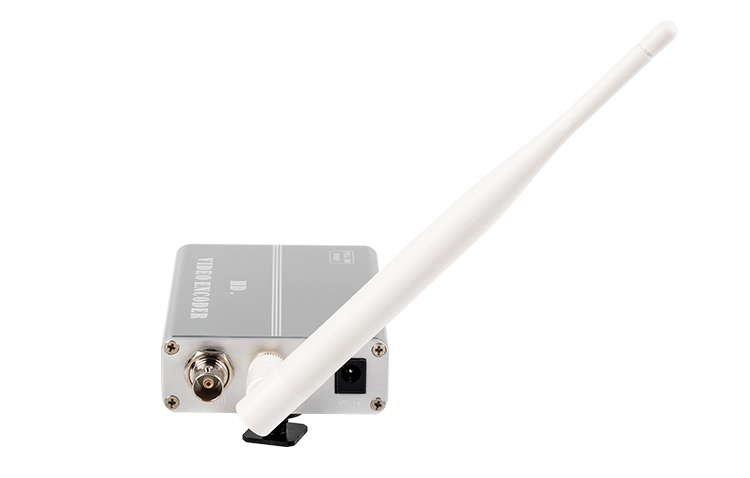

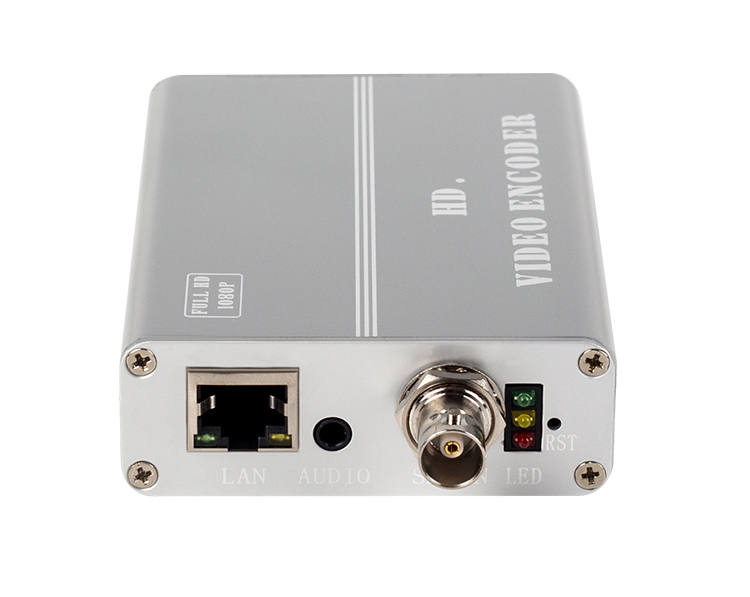

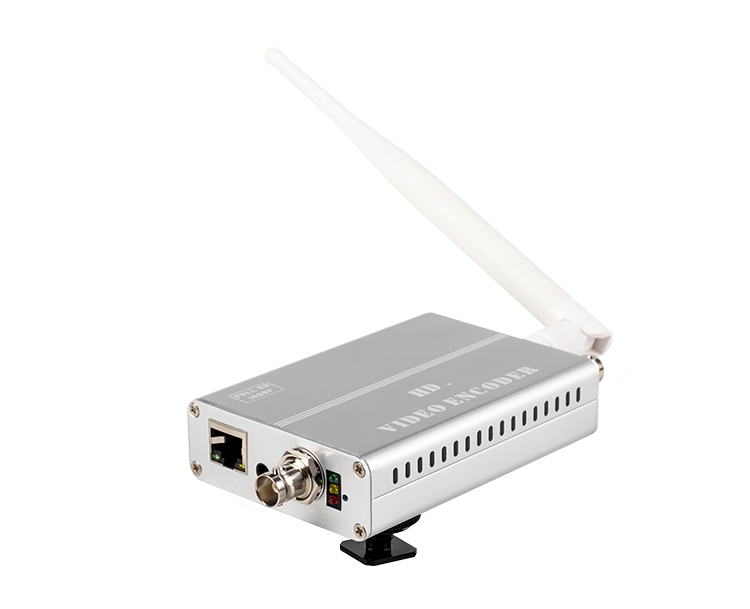

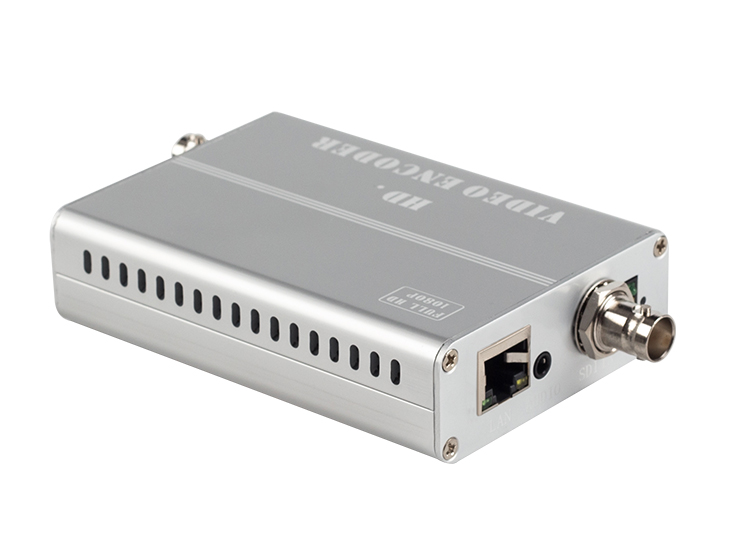

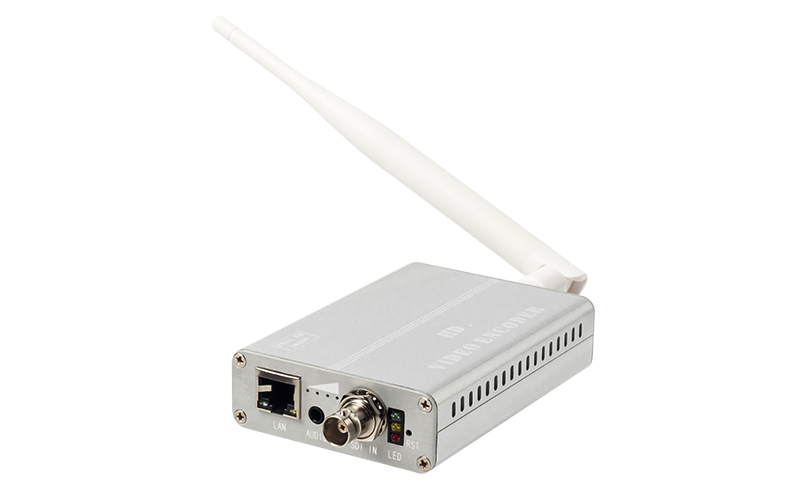

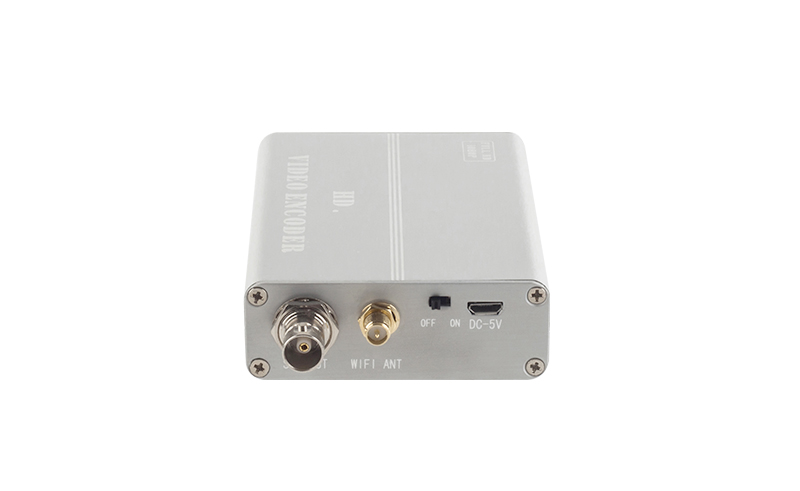

L7520-C2 live video encoder is a highly embedded hardware encoder for FHD HDMI over IP required scenarios like IPTV, Video streaming, live broadcasting, tele-education, telemedicine, church etc, SRT transmission, Point to point transmission. The audio and video encoder is based on the deeply embedded PCB board, it allows receiving the FHD video from SDI sources (3G/ HD/ SD), and line in audio from 3.5mm composite Jack(active sources required), then sending the steady high quality streams over IP protocol like RTSP over UDP & TCP/ RTMP/ HTTP/ UDP Unicast Multicast/ ONVIF/ RTP/ HLS/ RTMPS, P-P available as optional. With high-performance processors and years of experience in the video processing industry, SDI to IP encoders are available to receive the signal from HDMI sources (up to 1080 60, blue ray supported, optional HDCP); compare with the software encoder, the hardware encoder output stably real time live stream (push/ pull, support 1080P (default@30FPS) out) to video platforms like YouTube, Facebook, twitch, Wowza, Vmix, OBS...

Features

1. Embedded hardware encoding

2. Support H.264 Baseline Profile/ Main Profile/ High Profile and HEVC H.265 Main profile

3. Support multiple devices display on a computer at the same time

4. Encoding levels: Level 1, Level 2, Level 3, Level 4, Level 5 ( The higher the level, the larger the code flow fluctuation ratio.)

5. Rate Control: CBR / VBR 16KBIT / S ~ 12MBIT / S

6. Supportfull-duplexgigabit Network

7. Support up to 720P, HD 1080P video input

8. Compatible with Wowza/FMS/RED5 streaming media server etc, works in with streaming media server to push the streaming, to achieve a live streaming

9. Support the Main TS stream and the sub-TS stream used in different network protocols for transmission

10.  Video packaging: A mode: FFMPEG, B mode: VLC

11. Supports streaming resolution custom output settings

12. Transmission: TCP, UDP

13. Support streaming add watermark (OSD), XY axis, the font can be set;

14. Support WEB access in Chinese/English, password changing, WAN remote management (WEB)

15. Support DHCP gaining IP automatic,support One-key recovery, upgrades and remote maintenance

16. Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

17. Support build-in or external methods, support left and right sound channel, Support audio gain,be able to turn the volume individually

18. Support coding without video signal; Take effect immediately without the necessity to restart the device

19. Support one-press recovery for the default configuration

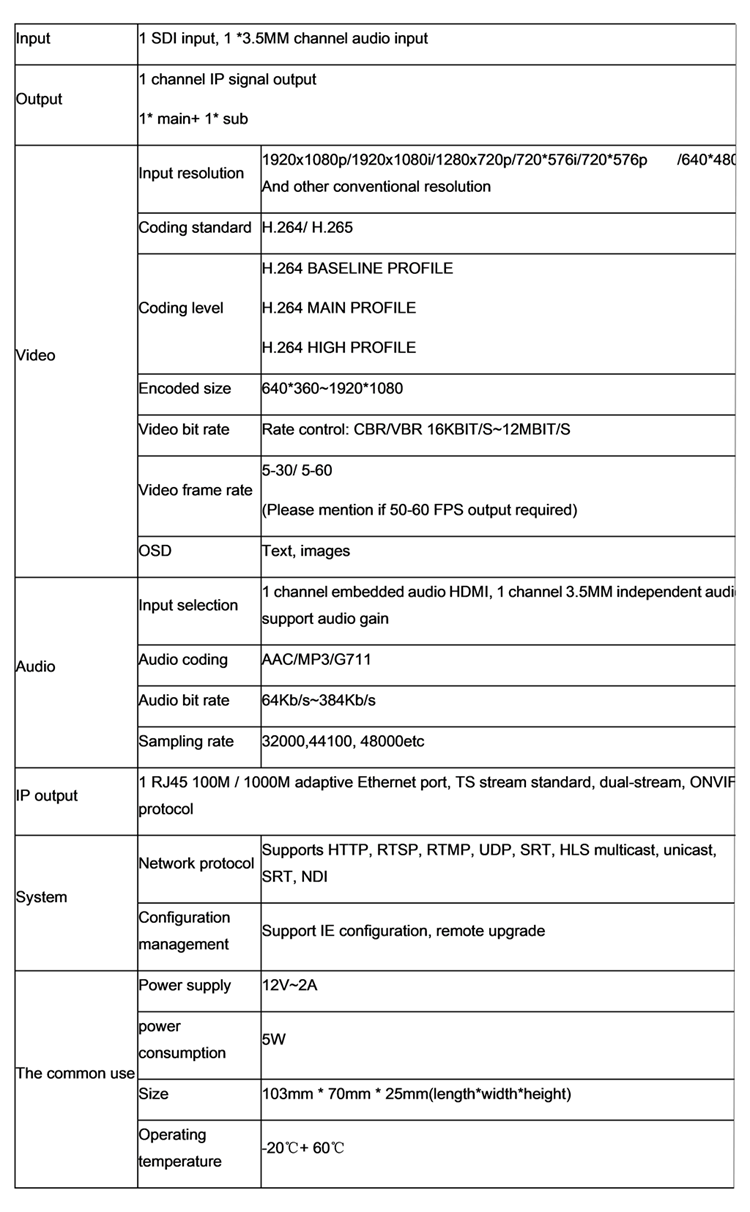

Technical Parameter
