Input: 4×ASI (BNC interface)
Output: 4×CVBS (RCA interface),4×Stereo Audio (L/R), 4×ASI Loop OUT
Decoding Standard: MPEG2

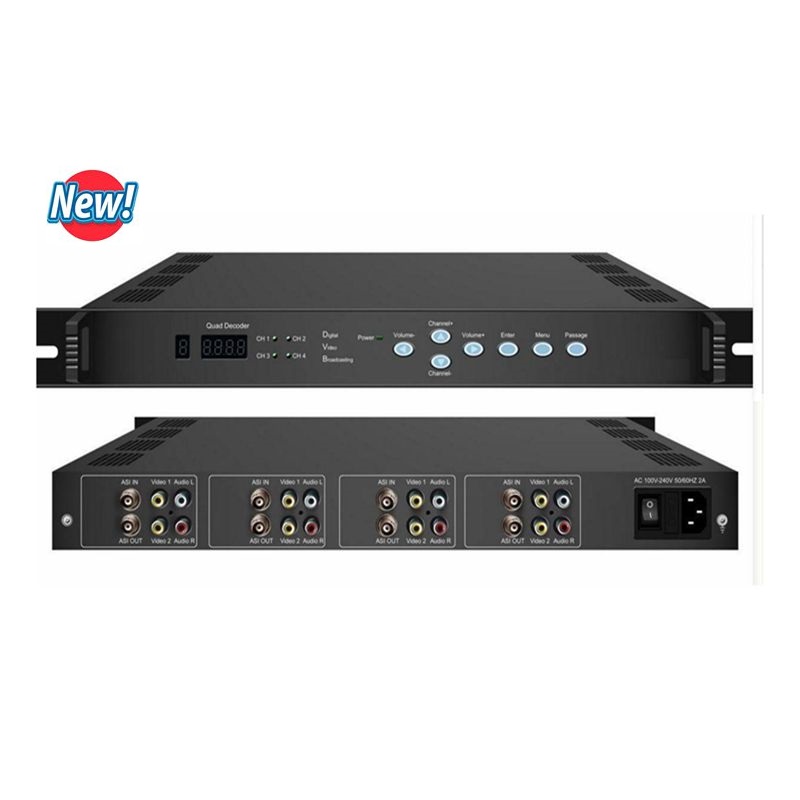

ST-R0154 quad decoder is a 4-in-1 MPEG2 TS decoder. It supports 4 ASI input and after decoding progress, it outputs 4 separate A/V signals. It also supports TS loop out over ASI port. This modularized design largely saves the cost of the transport freight, the space of frame rack, and power consumption. In general, it can provide users with a more convenient operating and maintenance experience.
4 separate modules in 1U case
4 channels ASI input, 4 channels A/V output, 4 ASI loop out
User-friendly and easy operating
Auto-switching PAL/NTSC
Auto-saving the latest channel

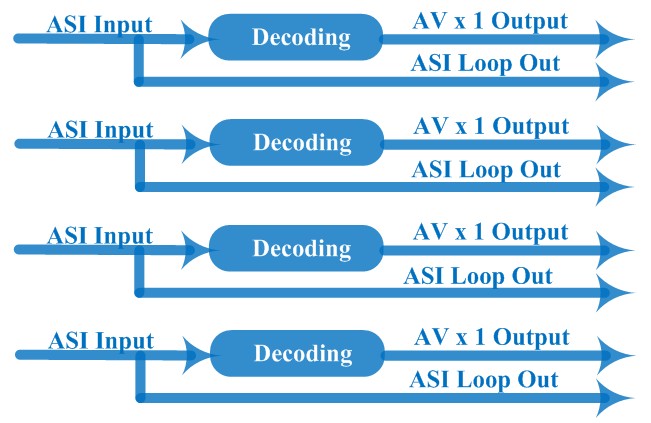

Principle Chart
Technical Parameter
Signal Input | 4×ASI (BNC interface) | |
Decoding Standard | MPEG-2 | |
Video OUT | 4×CVBS (RCA interface) | |
Audio OUT | 4×Stereo Audio (L/R) | |
ASI Loop OUT | 4×BNC interface | |
Miscellaneous | Management | LED /Control Buttons |
Dimension | 44mm×482mm×410mm | |
Temperature | 0~45℃(Operating), -20~80℃(Storage) | |
Power | AC 90~220V, 50/60Hz, 25W | |
