Outline

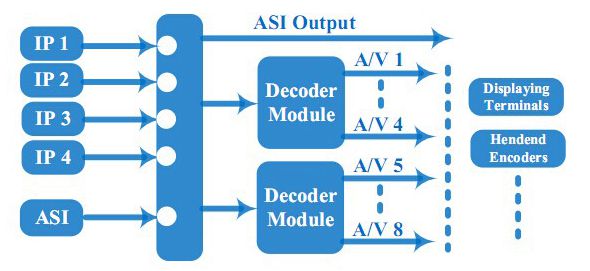

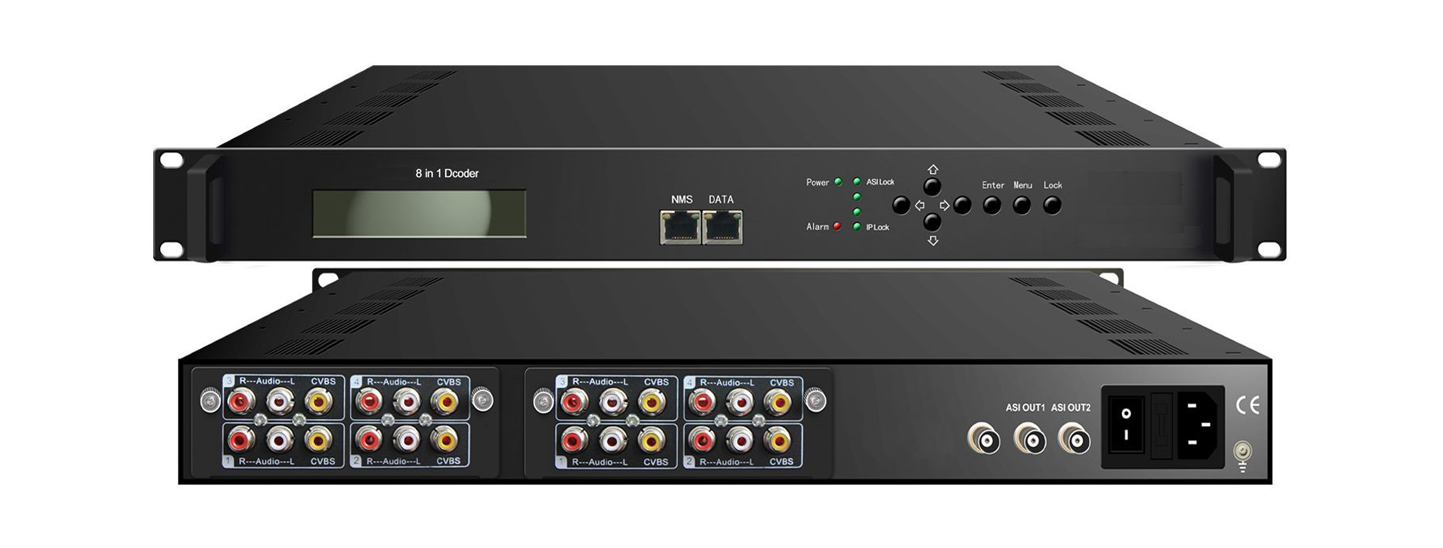

ST-5208 is a 1-U case 8IP to 8AV Decoder that supports digital TS input via both IP and ASI. After the decoding process, it outputs as many as 8 channels of analog A/V signals. Its pluggable structure design greatly facilitates the change of decoder modules as needed. To meet customers' various requirements, ST-5208 is also equipped ASI output to transfer the TS to other equipment for more purposes.

Features

* 8*IP and 1*ASI input
* 8*CVBS video/unbalanced stereo audio decoding out
* MPEG-2/H.264/AVS+ Video Decoding, MPEG1 Lay2/AC3 (2.0) Audio Decoding
* Real-time bit rate monitoring
* High reliability design, stable performance
* Easy manage with LCD and web-server remote control

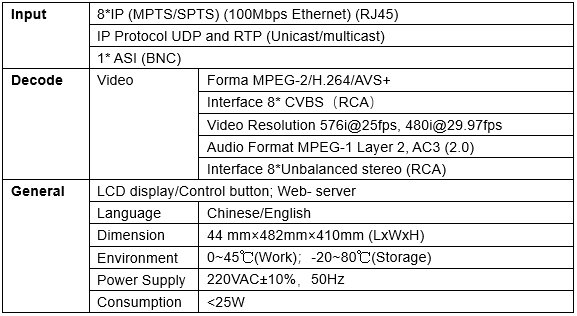

Technical Parameter
