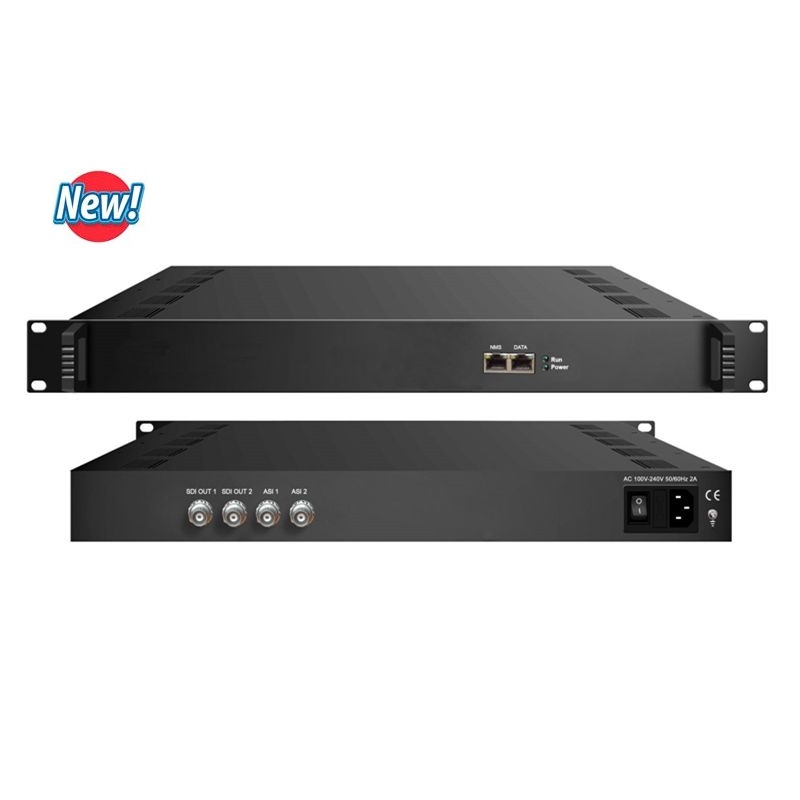

2IP/ASI to 2SDI HD Decoder
2IP/ASI to 2SDI HD Decoder

2IP/ASI to 2SDI HD Decoder

Product ID : ST-5202
Product Attributes :

Input: 2* IP + 2*ASI

Output: 2*HD/SD-SDI decoding out & IP

Decode: MPEG-2, MPEG4 AVC/H.264


Product Description

Outline

ST-5202 is a HD IP decoder with proprietary intellectual property rights. It is a 1-U case supporting both IP and ASI input. After the decoding process, it outputs 2 channels of HD/SD-SDI videos with dual stereo audios embedded in each port. It also supports 1 IP (MPTS) output and featured with dual bi-directional ASI ports for input and output alternatively.

 Features

  • 2 IP input and 1 IP output

  • 2 bi-directional ASI ports with input and output alternatively

  • 2*HD/SD-SDI decoding out with dual stereo audios embedded in each port

  • MPEG-2 and MPEG-4 AVC/H.264 Decoding for video

  • MPEG1 Layer2, LC-AAC, HE-AAC, AC3 (2.0/5.1), AC3 Passthrough for audio

  • Support CC/Subtitle

  • Easy manage with web-server remote control

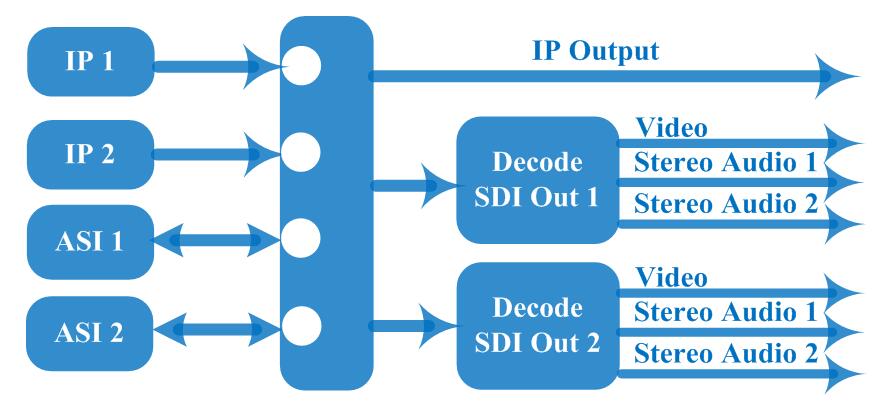

Principle Chart

1.jpgsdi decoder.jpg

Technical Parameter

Input

2 IP (MPTS/SPTS, 100M/1000Mbps Ethernet, RJ45, UDP protocol, Unicast/multicast)

2* ASI bi-direction, BNC 75Ω

Decode

Video Format

MPEG-2, MPEG4 AVC/H.264

Interface

2* SDI HD/SD

Video Resolution

480i, 480p, 576i, 576p, 720p@50/59.94/60, 1080i@50/59.94/60

Audio Format

MPEG1 Layer2, LC-AAC, HE-AAC, AC3 (2.0/5.1), AC3 Passthrough

Audio Channel

dual stereo audios embedded in each port

Output

2*HD/SD-SDI decoding out

0-2 ASI output

1 IP output over UDP protocol

General

Operation

Web-server

Language

Chinese/English

Dimension (LxWxH)

328 mm×482 mm×45mm

Environment

0~45℃(Work);-20~80℃(Storage)

Power Supply

220VAC±10%,50Hz

Consumption

<25W
