Input tuner: 4/8/12/16/20/24
Types of tuner: DVB-T/T2/DVB-S2/DVB-C
Output: 1000M IP output over UDP and RTP protocol(MPTS and SPTS)

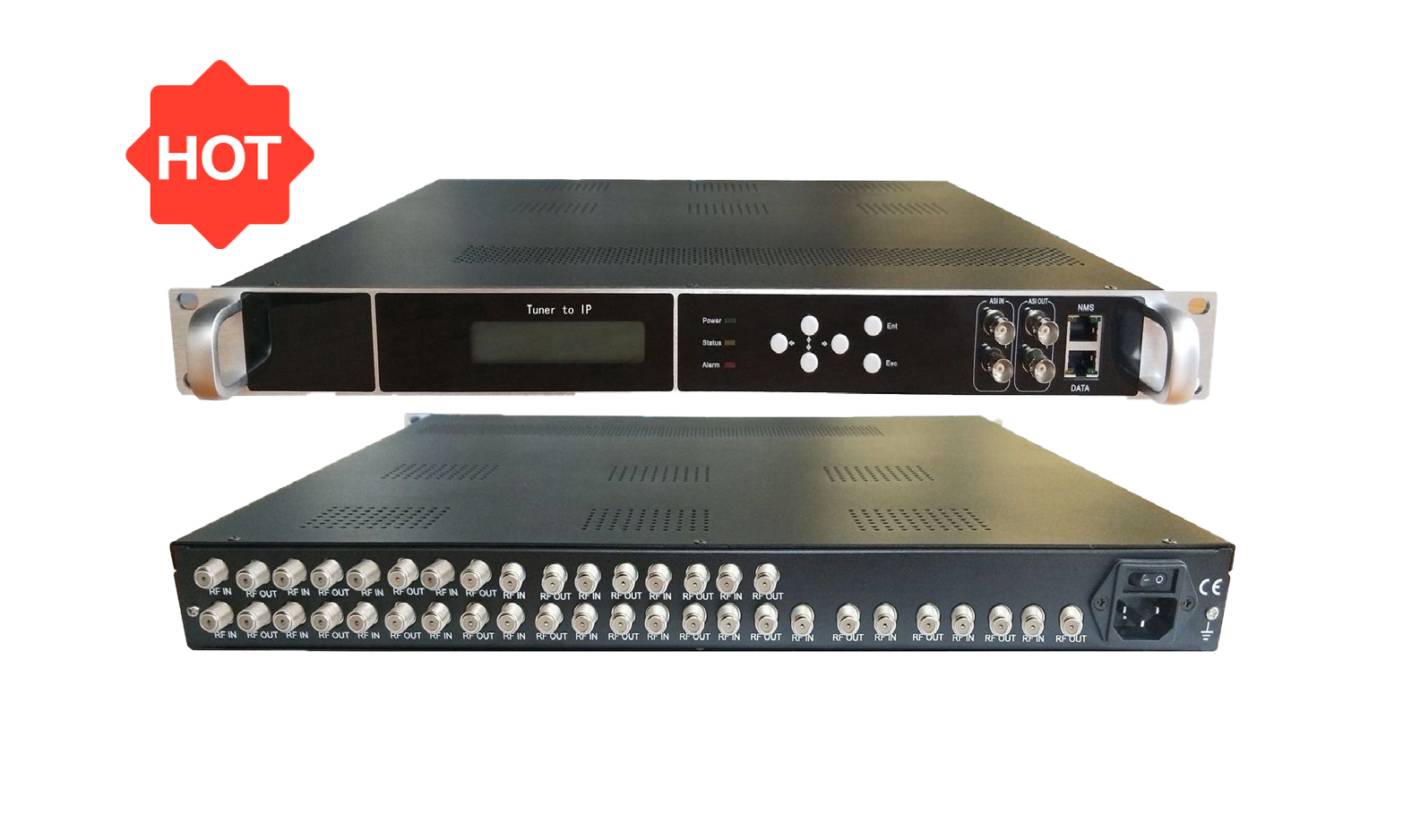

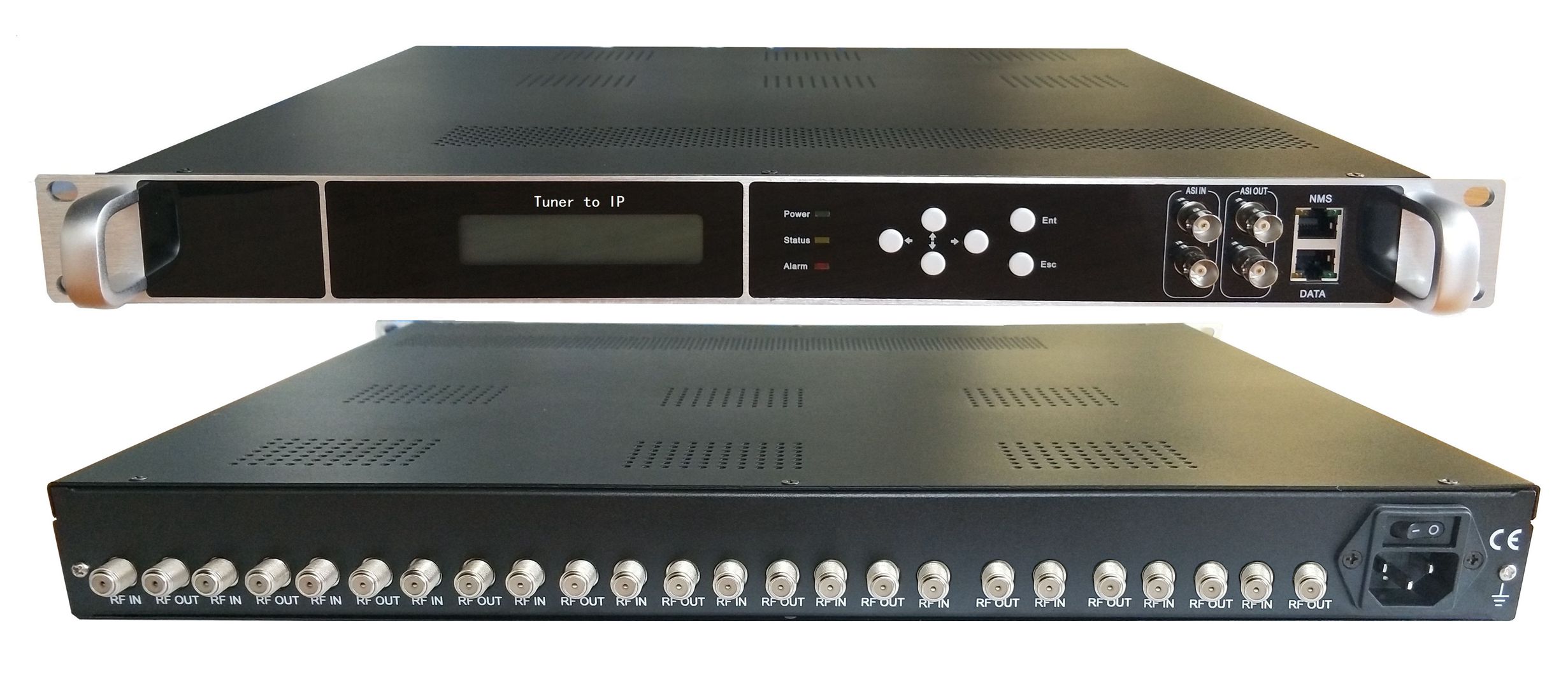

ST3380-A FTA DVB-T2 to IP Gateway is a professional high integration device that includes tuner demodulation, multiplexing, and encoding. It supports 4/8/12/16/20/24 DVB-t2(DVB-t) inputs, 1000M IP output, 1 MPTS output, and 256 SPTS output. In conclusion, its highly integrated and cost-effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting, etc.
1. 4/8/12/16/20/24 dvb-t2 (dvb-t) as inputs
2. supports 1000M IP output over UDP and RTP protocol(MPTS and SPTS)
3. 2 ASI inputs
4. 2 ASI Independent output (optional) as copy of 1MPTS
5. Support “Null PKT Filter” function
6. Support PID Remapping/ PCR accurate adjusting
7. PID pass
8. LCD, key function, control via web management, and easy updates via web
Principle Chart

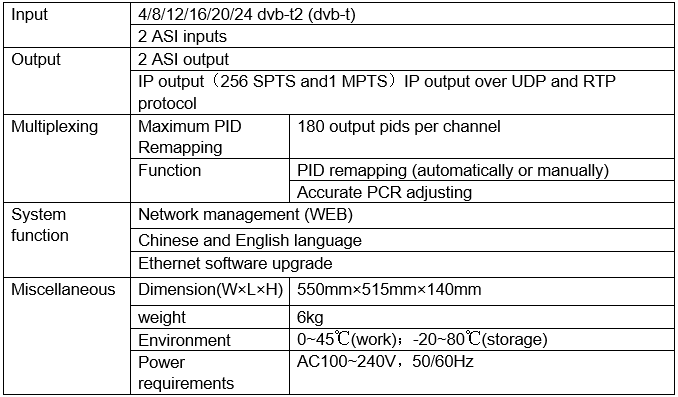

Technical Specification
