Input: 2GE ports (max 64 IP input)
Decoding: HEVC/H.265, H.264/AVC, MPEG2
Output: Up to 32 non-adjacent or adjacent carriers
Output Bandwidth: 400MHz
Outline

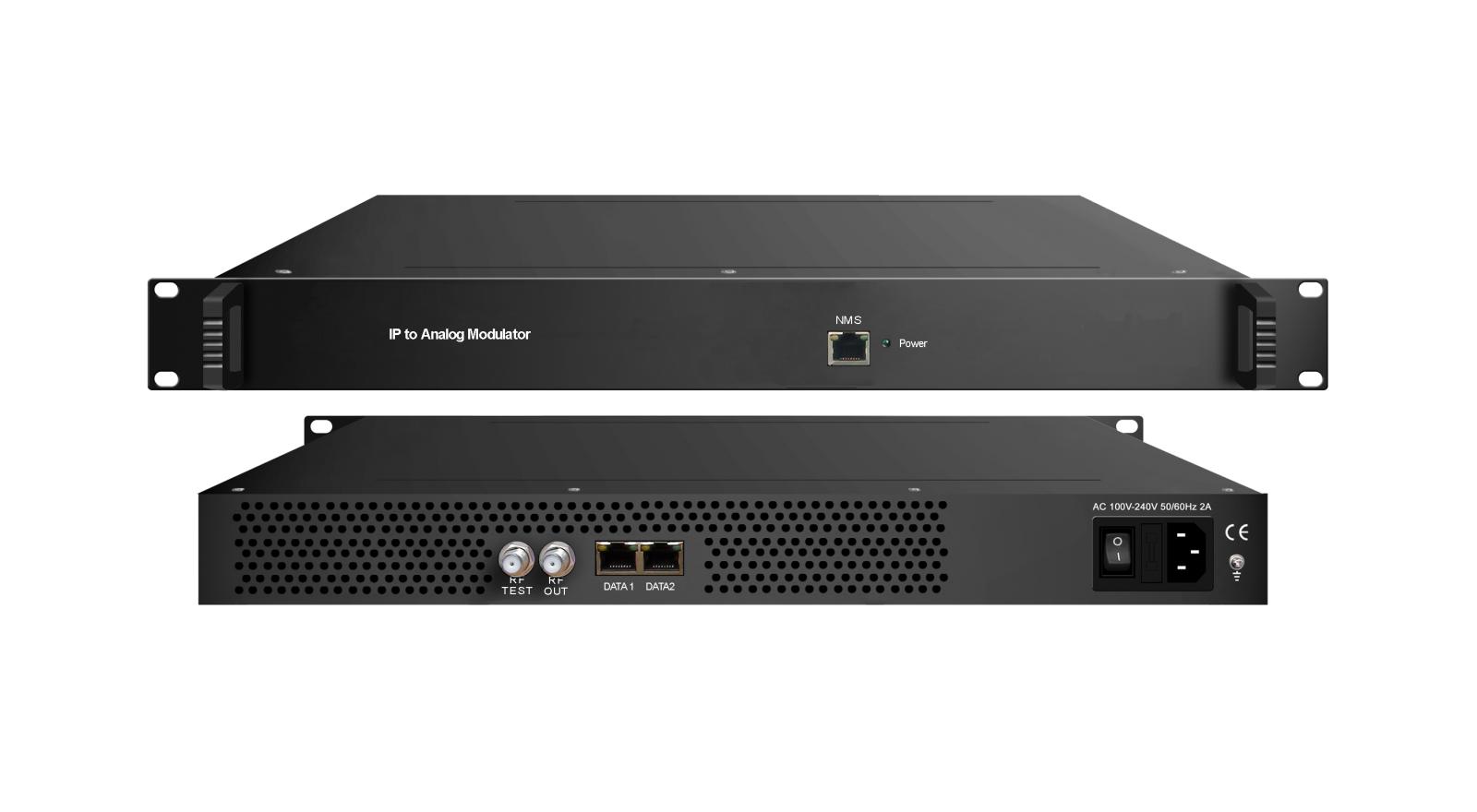

32 in 1 IP to Analog Modulator mainly adopts IP signal source input and transmits on the coaxial line (cable TV line), and the terminal watches through analog TV. It mainly solves the problem that the analog TV of group users such as hotels or hospitals stops broadcasting, the digital cost is expensive and the TV is an analog TV.
Key Features
l 2 GE ports (max 64 IP input over MPTS/SPTS), Max 840Mbps for each GE input
l Support HEVC/H.265, H.264/AVC, MPEG-2 TS Decapsulation
l Processing of up to 32 IP multicast groups of a Gigabit Ethernet MPEG TS into up to 32 standard PAL or NTSC or SECAM TV programs (SECAM is under development)
l 32 non-adjacent or adjacent carriers output within 400MHz
l high density
l Support Web-based Network management

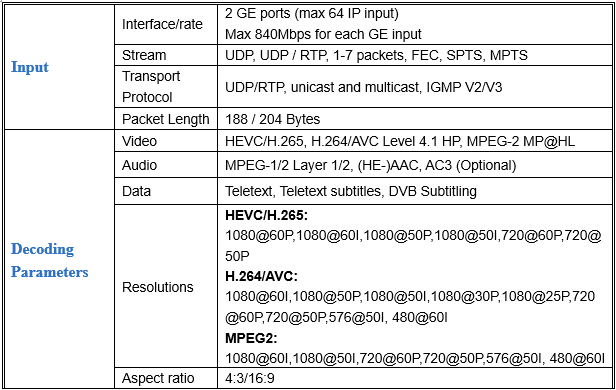

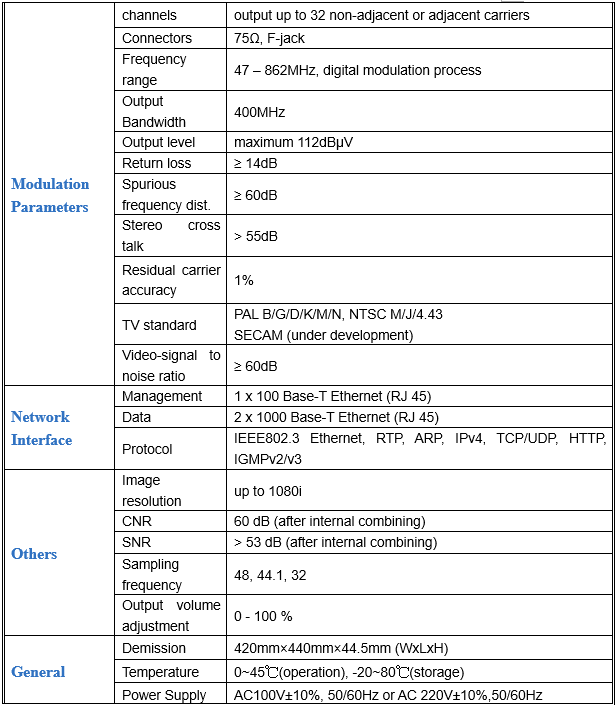

Specifications
Devices-Recommend
If the signal source is just from analog AV: | If you need more input channels, like 64 in1: |
 |  |
