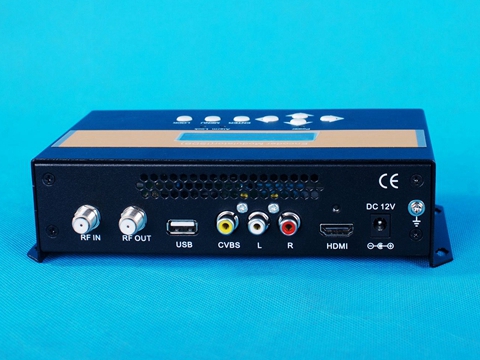

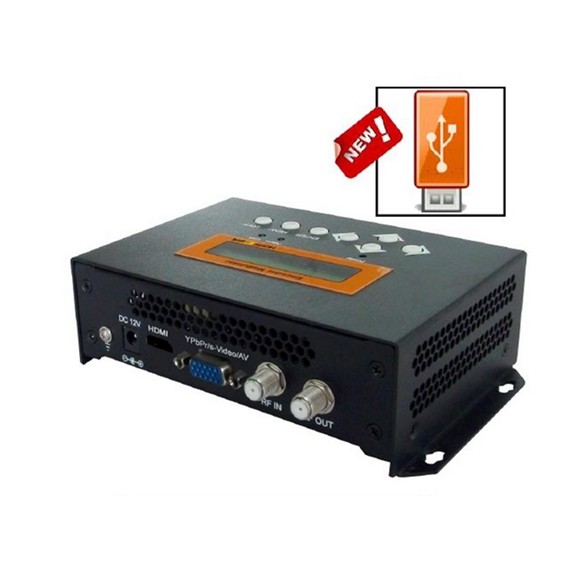

Mini 1*HDMI to RF coaxial converter

Outline

STHM-3380 series mini-HDMI to RF coaxial converter is a device integrated with encoding and modulation functions. The HD modulators are compatible with any audio, or video signal source from av, HDMI cable, YPbPr, and S-Video for perfect full digital video quality & sound, with Live - Real Time distribution. The signals source could be satellite receivers, closed-circuit television cameras, Blu-ray players, antennas, etc.

Created for global customers, It supports kinds of modulation standard output RF, the output signal is to be received by a DVB-T/DVB-C/DTMB/ATSC/ISDB-T standard TV, DVB-T/DVB-CATSC/ISDB-T set-top box, etc. The resolution HD up to perfect full hd1080P/60 and AAC audio with exceptional quality.

The headend units are an ideal product to create your own CATV channels over existing tv coax cables to create your custom cable channels that are easily distributed to all your televisions quickly and efficiently. It can be used for home entertainment, surveillance control, hotel Digital Signage, shops, etc.

Features

• Converts one video source into 1 HDTV Channel you can distribute and watch through the existing TV distribution box on All TVs.

• HDMI Input up to 1.5A @1080p60, compatible HDCP

• Play any recorded TS file from USB Drive, record Live HD Video Input to USB TS File

• Loop content from USB drive continuously, record Live HD Video Input to USB TS File

• USB storage feature for recording input and playing TS files from any source

• AC3 Audio Encoding Available (model number specific)

• Adjustable output power eliminates the need for an RF amplifier, > +40 dBm

• Simple One-Click setup installs in a few minutes anywhere via WEB Remote Control

• Plug 'n Play HDMI Video Distribution system, drives directly unlimited TVs with perfect quality at any distance, no other parts need

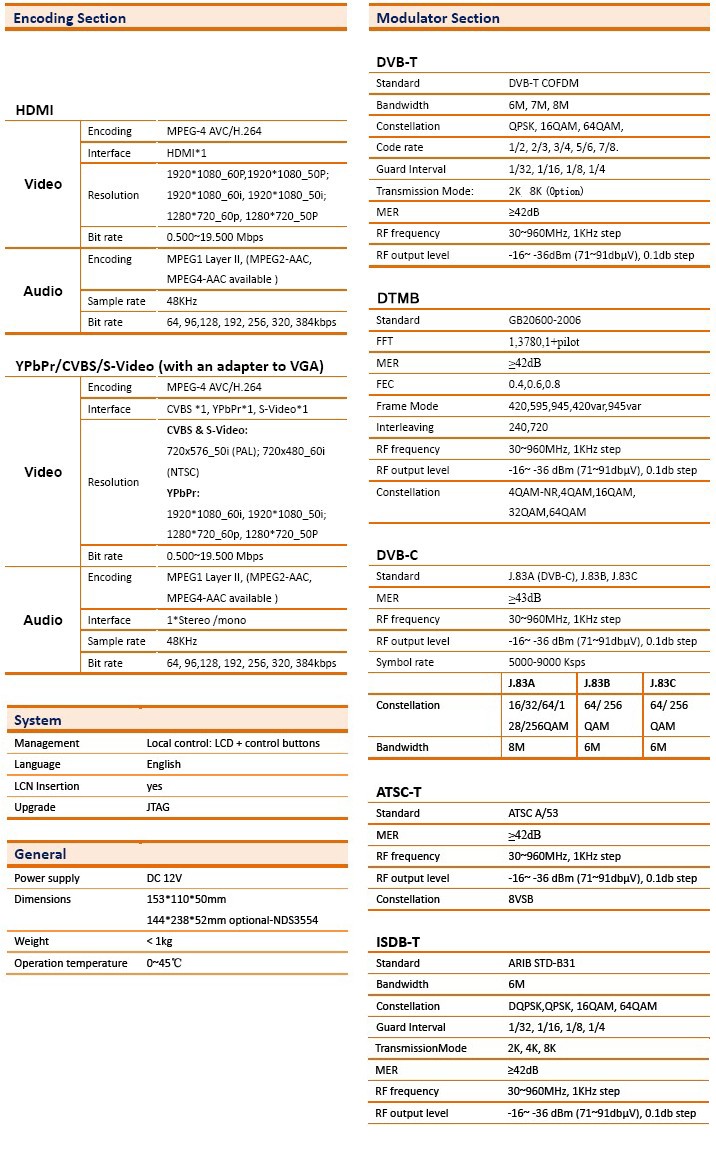

Technical Parameter

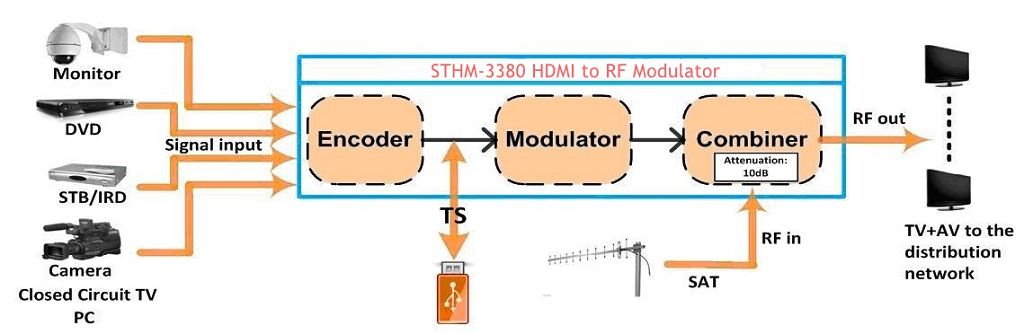

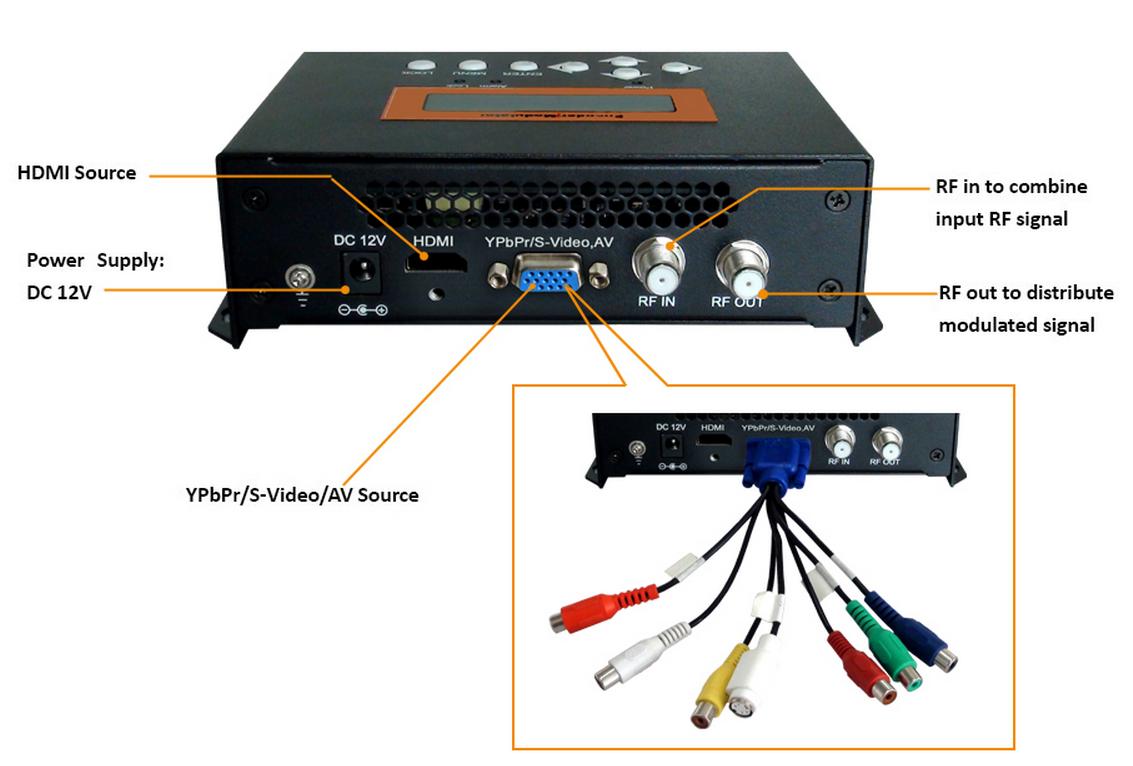

How to connect the STHM-3380 Encoder Modulator?

Applications

Use STHM-3380 HDMI to RF coaxial converter to create your own advertising and information

Order Guide

Please specify both Input options and Modulation standards when you place an order:

Inputs:

1*HDMI H.264

1*HDMI/AV H.264

1*HDMI H.264 and MPEG-2 HD

Modulation Standard:

DVB-T

DVB-C

ATSC-T

ISDB-T

DVB-T/C, ATSC-T/ISDB-T in one for switching

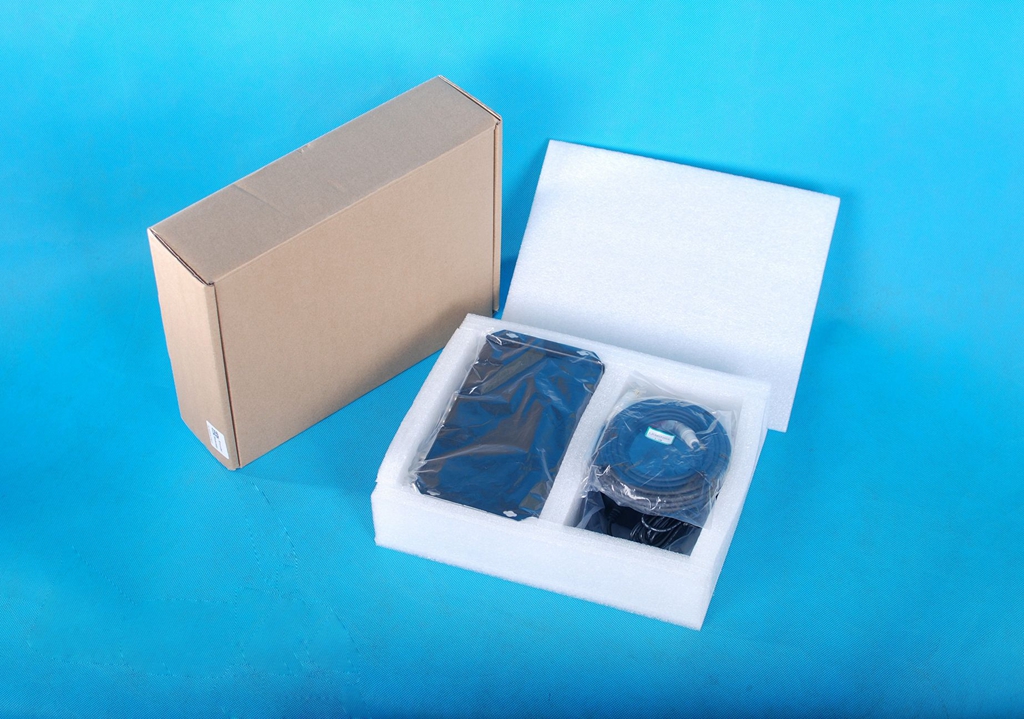

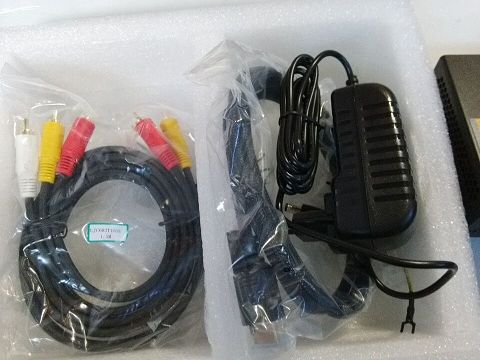

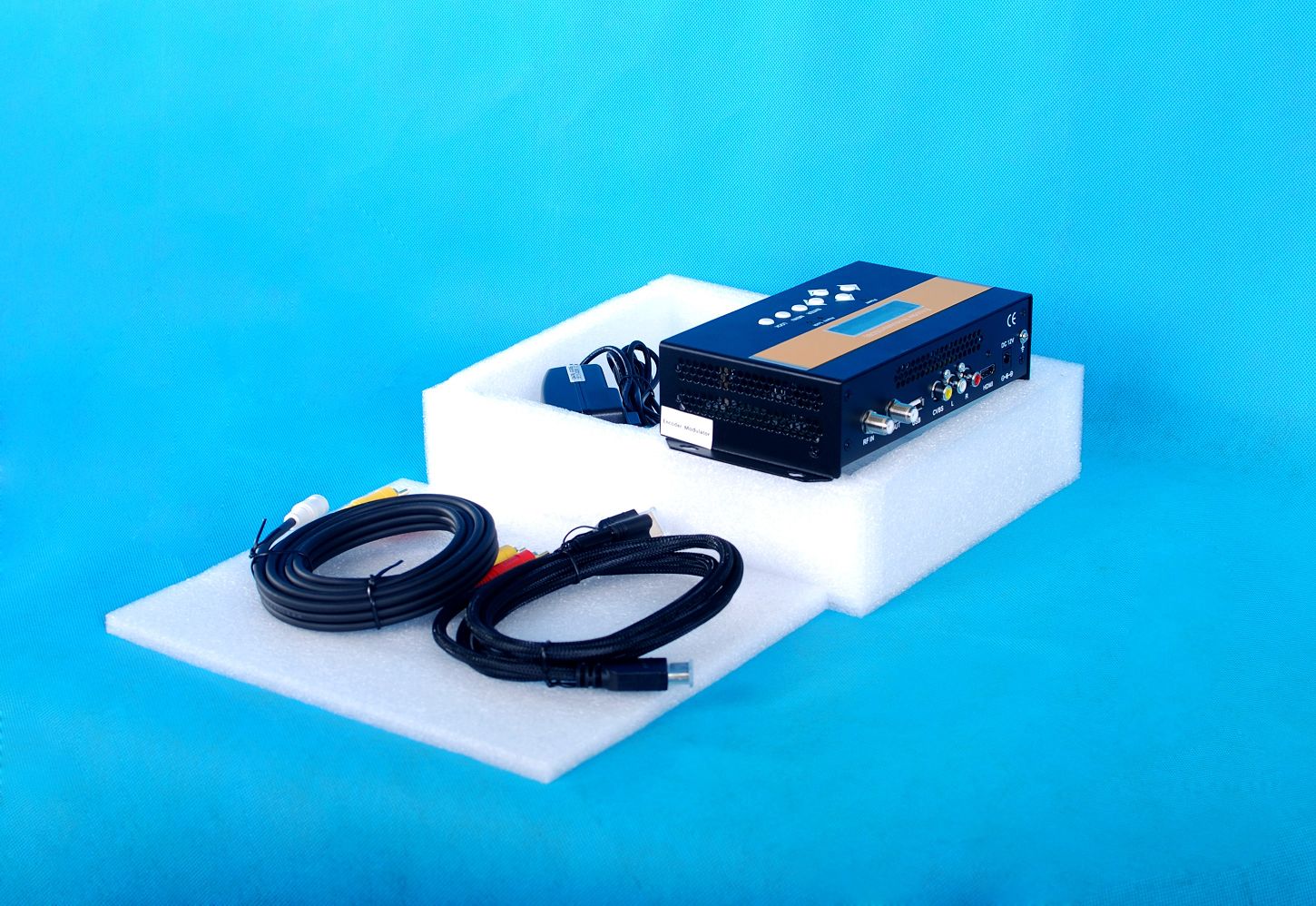

Package Info

Size: 21cmx19cmx15cm for one set

Gross Weight: 1.4KG for one set

Devices-Recommend

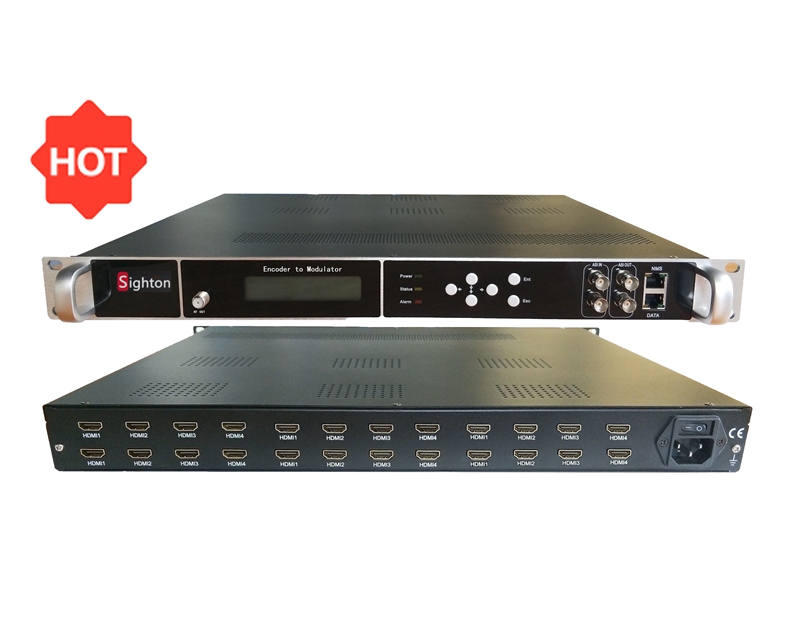

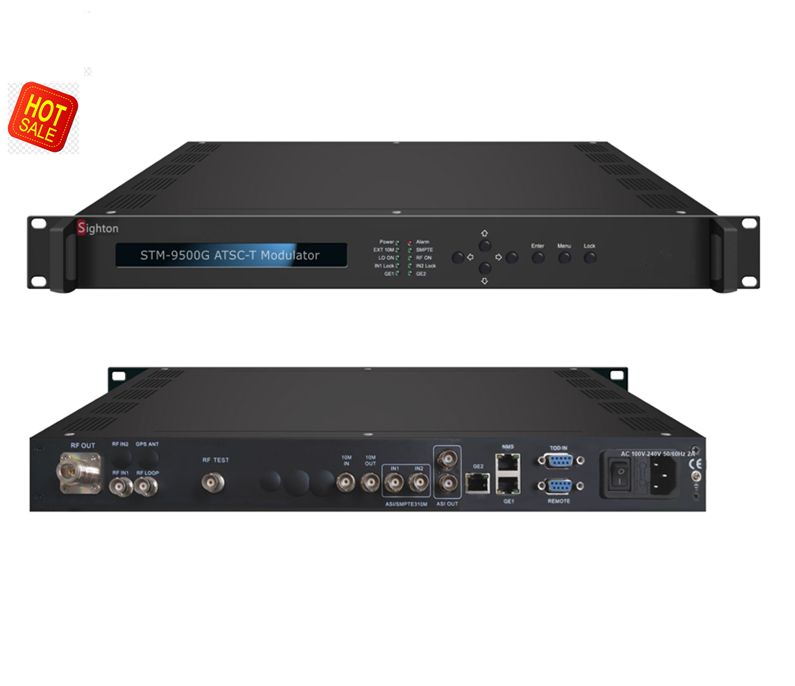

More HDMI Video Source Inputs (4/8/24):	Only need IP/ASI Input to ATSC
