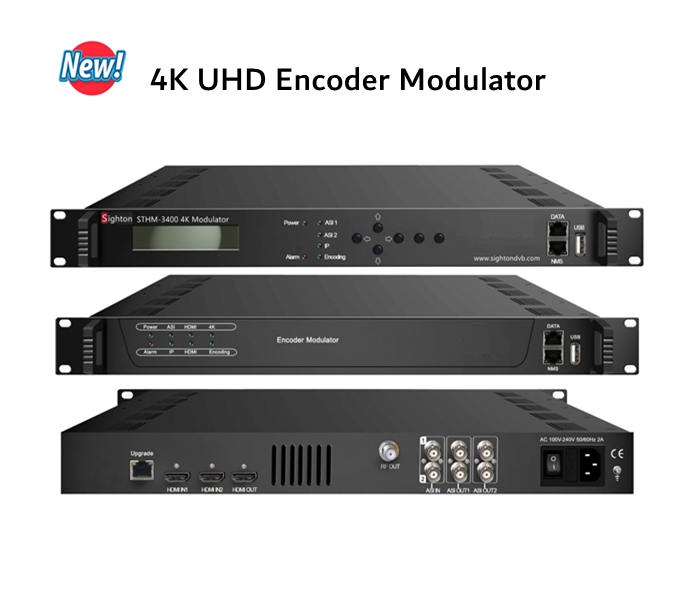

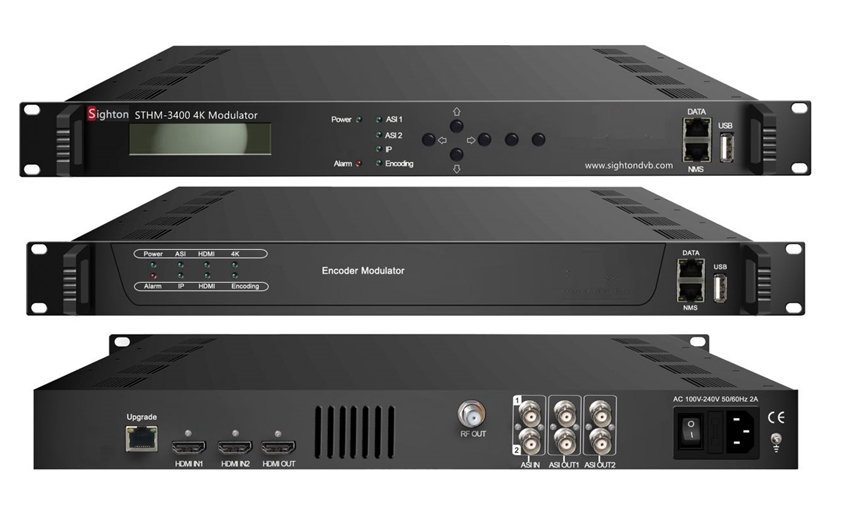

UDH HDMI 4k modulator with 1U case
UDH HDMI 4k modulator with 1U case

UDH HDMI 4k modulator with 1U case

Product ID : STHM-3400
Product Attributes :

Input: HDMI*2, CC(closed captioning)

Encoding: H265/H.264

Output: ATSC, ISDBT, QAM, and DVB-T RF out


Product Description

Product Outline

STHM-3400 is a high-performance HDMI 4K modulator with advanced encoding technology. It is processing uncompressed 4K video signals at eight times the bit rate of current HD sources, and it offers incredible compression efficiency.

The HDMI modulators not only integrate encoding (H.265/HEVC and H.264/AVC) but also has multiplexing and modulating functions in one standard 1U rackmount chassis with better heat dissipation. It supports two HDMI (2.0) channel UHD signal inputs (hot redundancy) for encoding, and 2 ASI & 32 IP inputs for remux.

To enhance the transport capacity, the encoder modulator combines 1 QAM DVB-C or 1 DVB-T RF carrier output with one RF output port. It is also equipped with 4 ASI ports to mirror our RF carrier and an IP port to output TS in 1* MPTS. The HDMI to RF modulator is making live UHD delivery available for satellite, cable, terrestrial, and fiber networks.

best hdmi 4k modulatorjpg

Product Features

modulator hdmi 4k

4k over coax modulator


  • Support 2 HDMI 2.0 (Mux) input and 1 HDMI 2.0 (Loop out) output

  • Support HDCP 2.2 and HDCP 1.4

  • Support up to 2160P 60Hz RGB/YCbCr 4:4:4 input

  • 4K UHD over IP

  • 4K/UHD over CATV RF COAX - QAM or ATSC or European DVB-T

  • 4K/UHD over ASI

  • 4K IP stream to QAM or ATSC or DVB-T  (RF Channels will pass 4K resolution)

  • 4K ASI  stream to QAM  (RF Channels will pass 4K resolution)

  • Support video resolution upscale transform (1080P and 4K convert to each other)

  • Support H.265/HEVC and H.264/AVC video encoding

  • Support MPEG1 Layer 2, LC-AAC audio encoding

  • Support CBR video bitrate mode

  • Support PID remapping / accurate PCR adjusting / PSI/SI editing and inserting

  • Support IP (1000M/100M) Output 1 MPTS over UDP and RTP; IP null packet filter

  • 1*DVB-C/T RF output

  • Real-time output bit-rate monitoring

  • Update the device through web-based NMS port

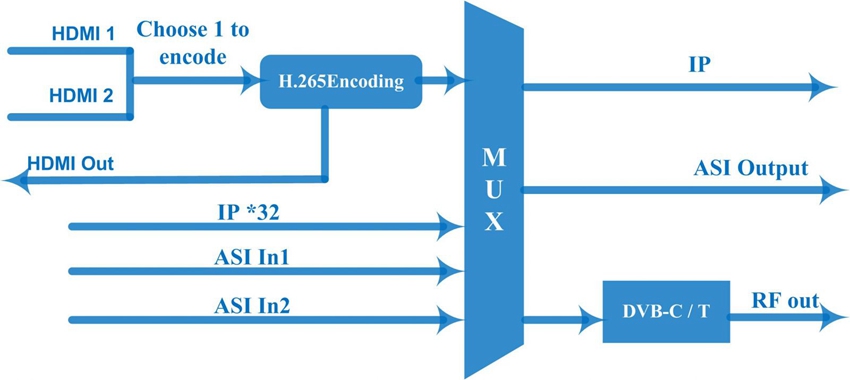

Connection

4k hdmi modulator connection.jpg

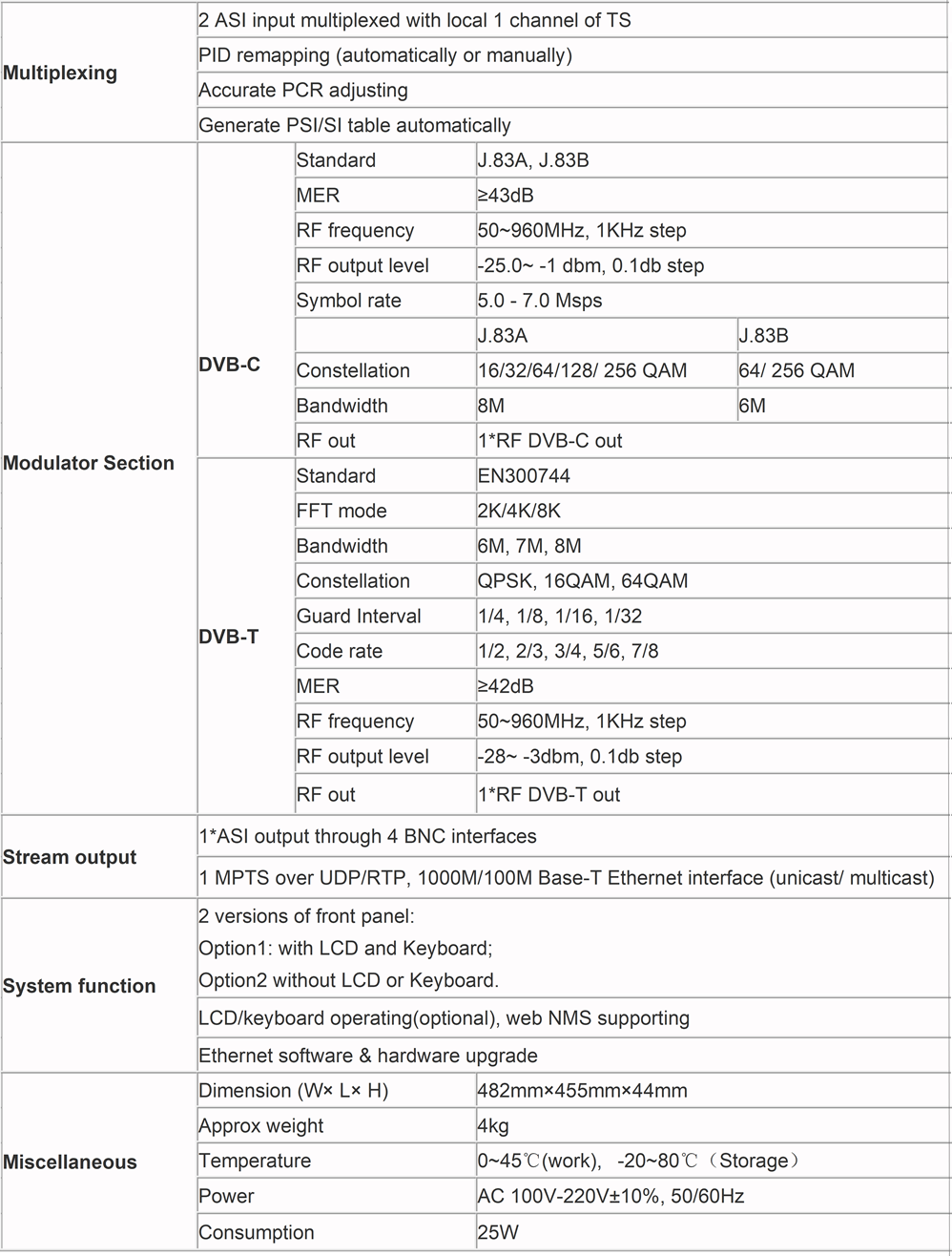

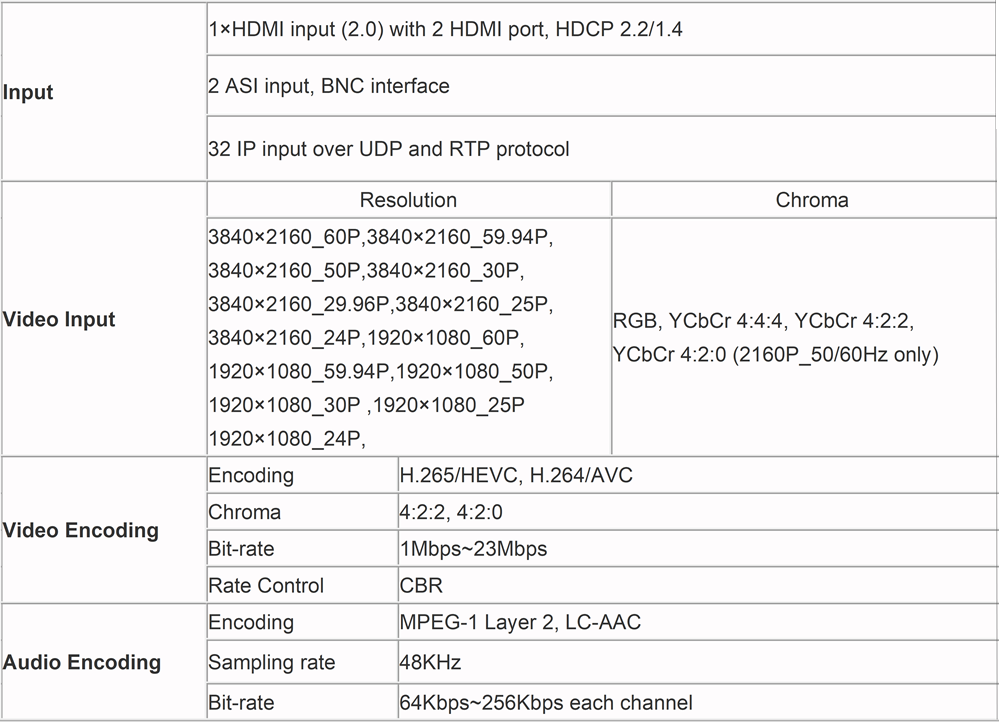

Specification

data sheet for 4k over coax modulator


data sheet for best hdmi 4k modulator

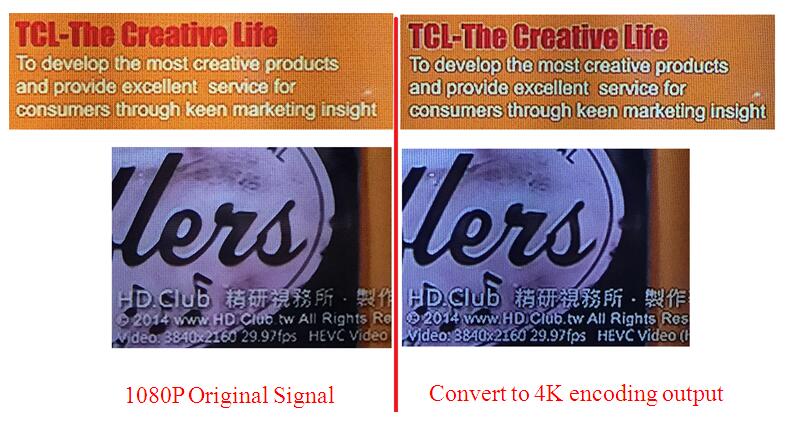

Resolution Upscale

compare 4k hdmi modulator with 1080P modulator

Devices-Recommend

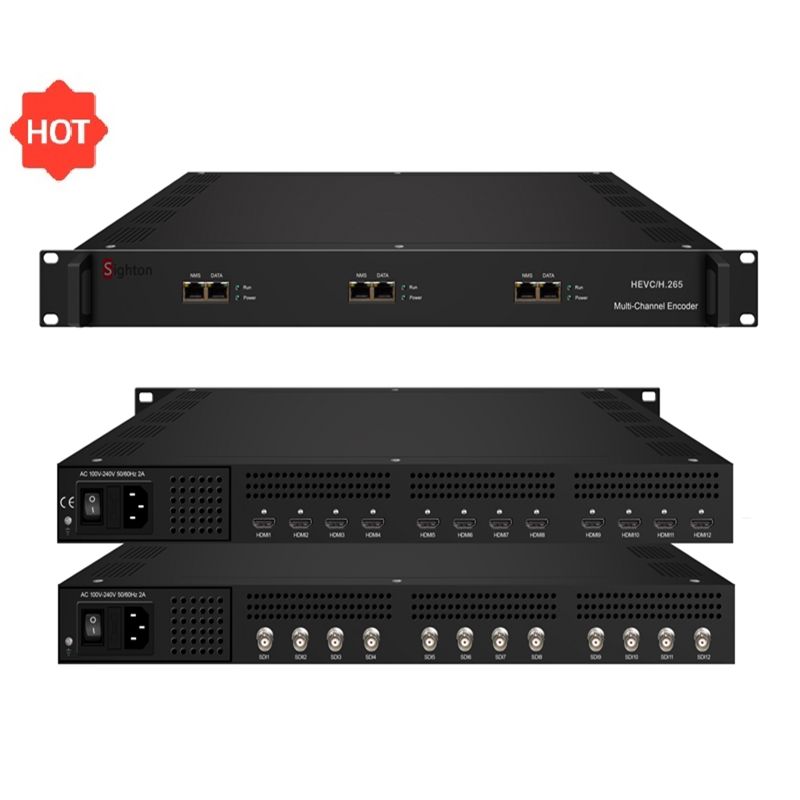

If you just need a 4K Encoder without Modulation:

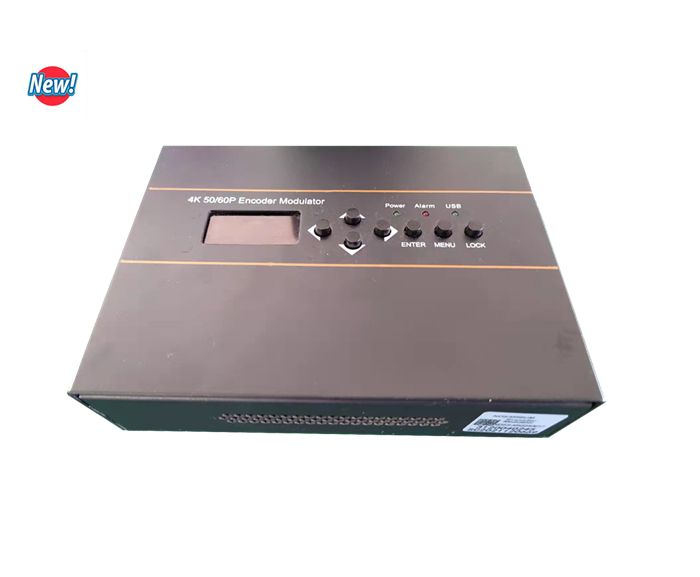

Compare with 1*HDMI 4k modulator portable version:
4k encoder.jpg


picture for modulator hdmi 4k.jpg
