Input: HDMI/SDI//YPbPr/CVBS/ASI
Encoding: MPEG-2 HD/SD or H.264 HD/SD
Output: DVB-S/S2 RF and ASI
Output Frequency: 950-2150MHz (IF: 50-200MHz fo S5201-EMA)
Outline

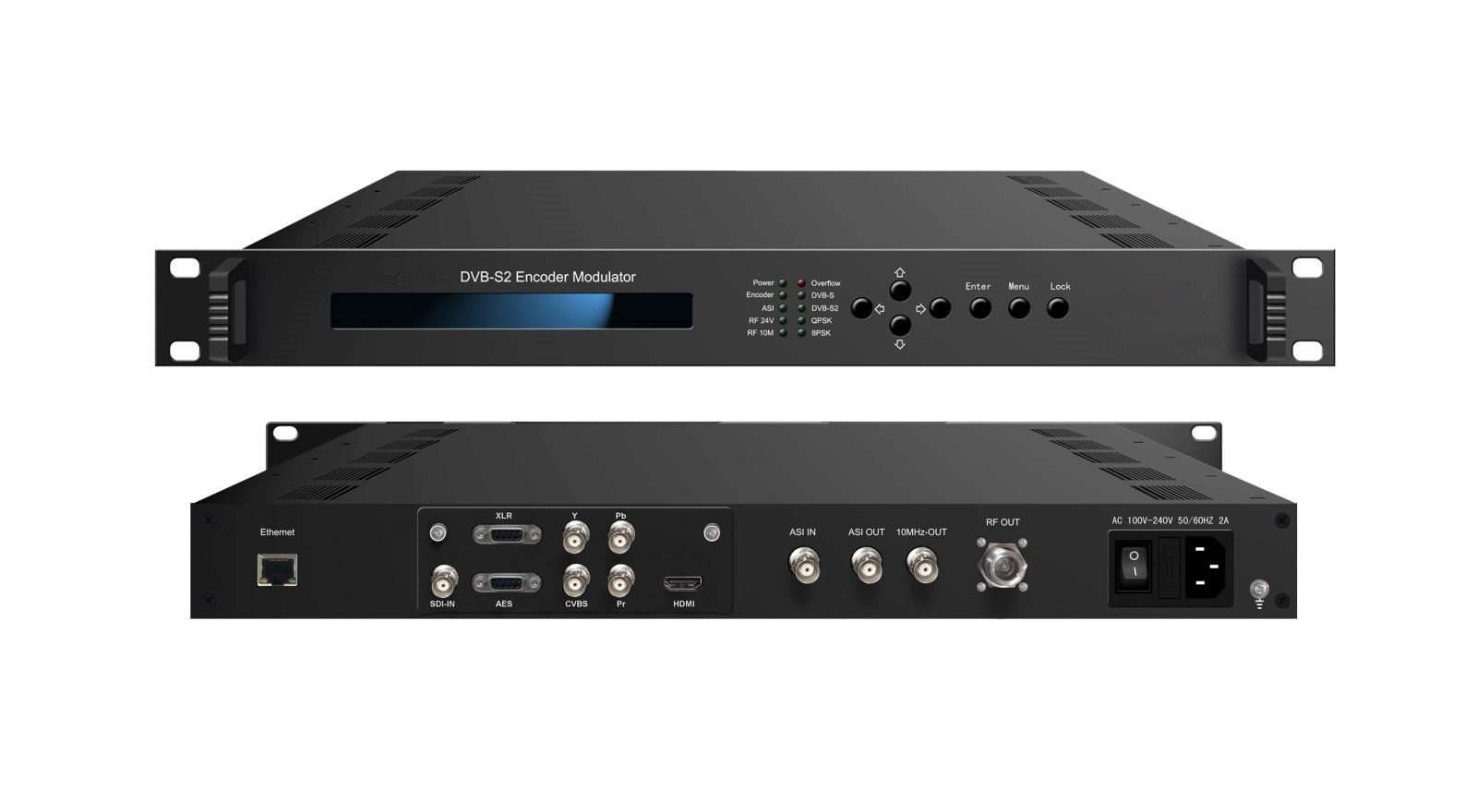

S5201-EM DVB-S/S2/S2X digital HD modulator is an integrated device with encoding and modulation multifunction. Its pluggable design makes it easy convenient to change encoding any modules , like SDI/HDMI/YPbPr/CVBS input interface as needed. It is also 1 channel ASI input for external TS pass or multiplexing.
The signal source could be CCTV cameras, Blu-ray players and etc. It adopts a user-friendly web-based operation interface to effectively manage the device and carefully protect your content with its BISS function. Featured with its high performance and low cost. S5201-EM is especially adequate for the TV station or DSNG system to encode SD/HD programs and output to uplink.
Our tech team supplies free support before the sale and after the sale, giving your implementation, support, and assistance. Free to upgrade software and install middleware by our technical guys via remote operation.
Effective and executable TV system solutions, like DVB-T T2 wireless system, DVB-S2 system, Cable system, and IPTV System, are designed by our professional engineers for you. Contact a Sighton sales representative today to fetch any support.

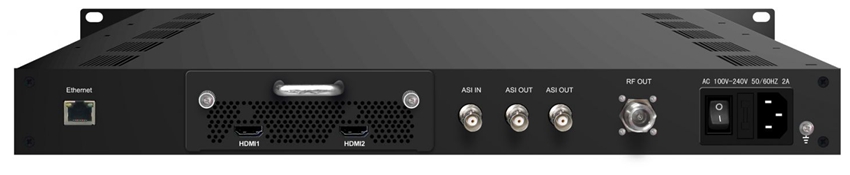

HDMI Interface

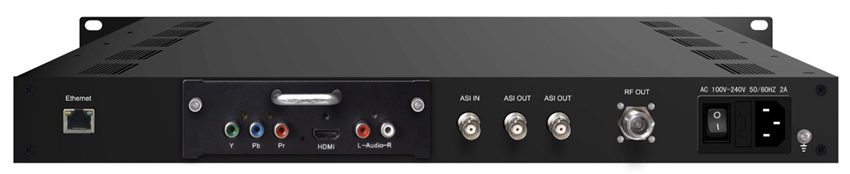

HDMI+Ypbpr Interface

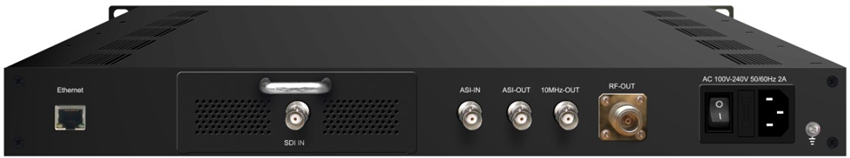

SDI Interface
CVBS Interface

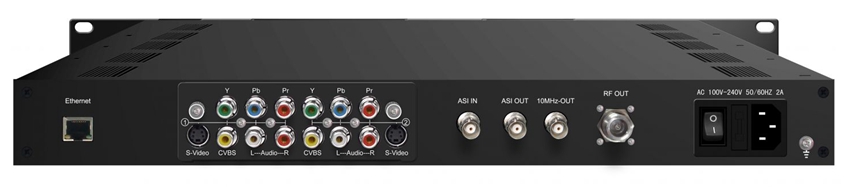

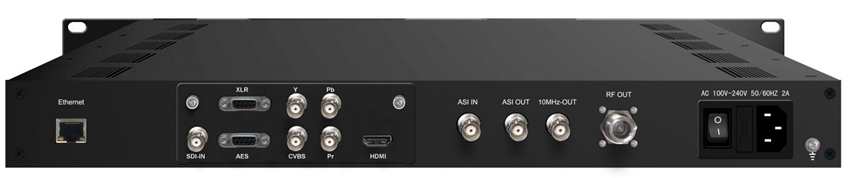

HDMI/SDI/CVBS/Ypbpr Interface

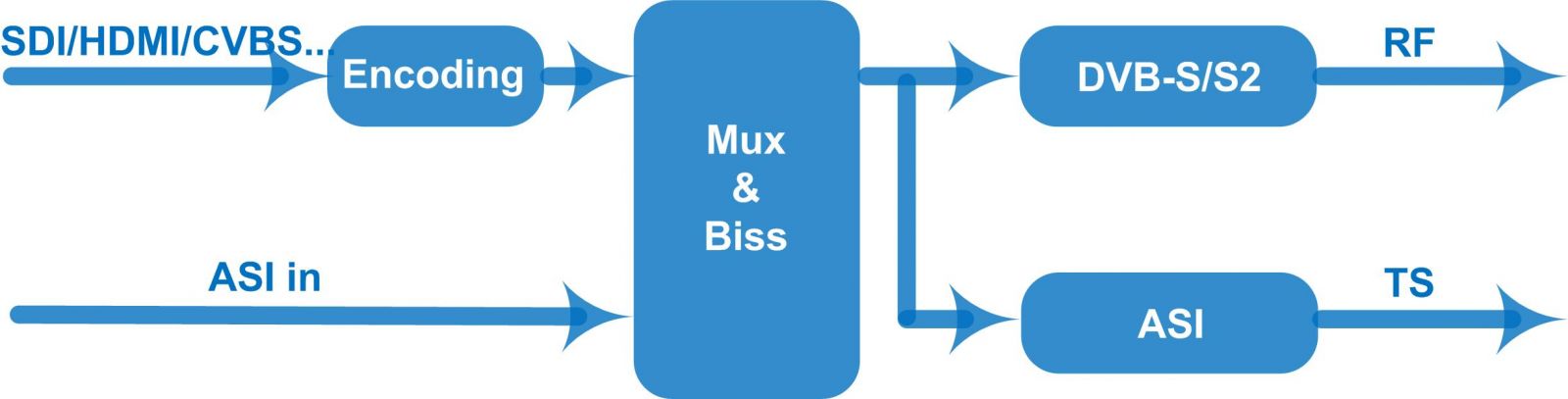

Principle Chart
Features
* MPEG2 SD/HD and MPEG4 SD/HD Encoding Module optional
* CVBS/SDI/HDMI/YPbPr…signals in & 1*ASI in
* Support DVB-S/S2 RF output and ASI output
* Output Frequency: 950-2150MHz (IF: 50-200MHz -----S5201-EMA)
* Symbol Rate: 0.05-20Msps
* Support Low latency
* Support BISS function
* Support RF 24V power output
* Support 10MHz reference clock output

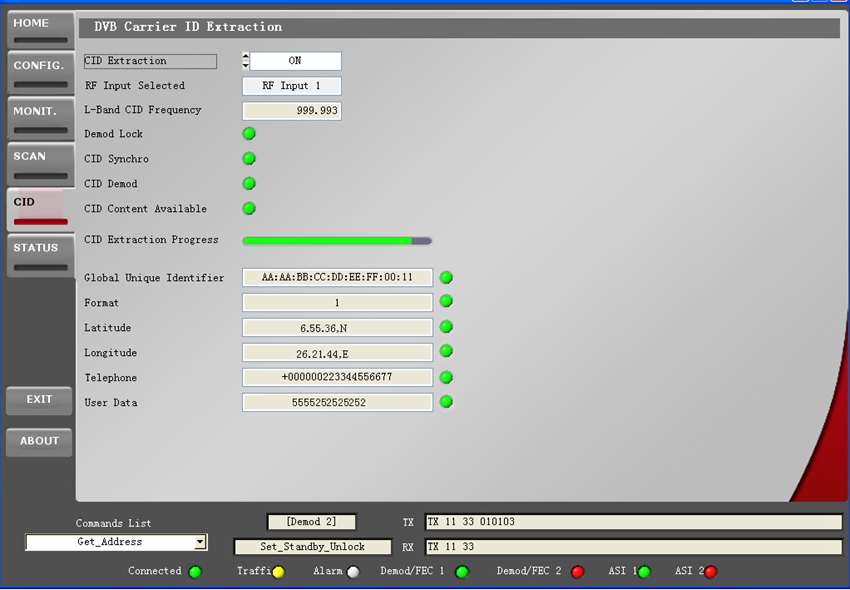

* Support Web NMS and front panel LCD & Keyboard control
* Upgrade device through web NMS

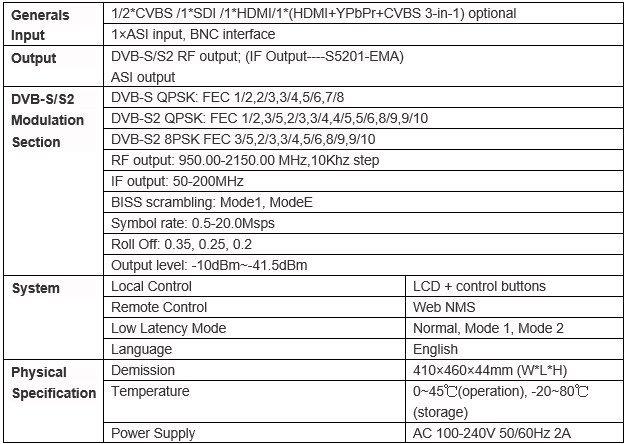

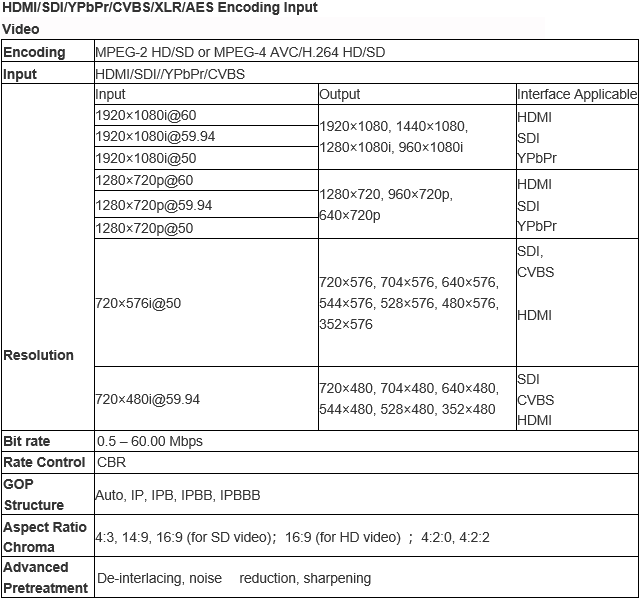

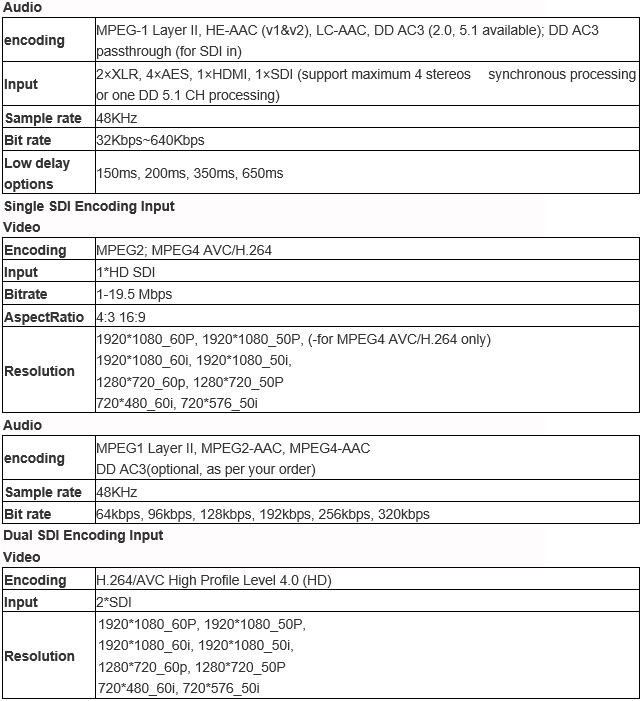

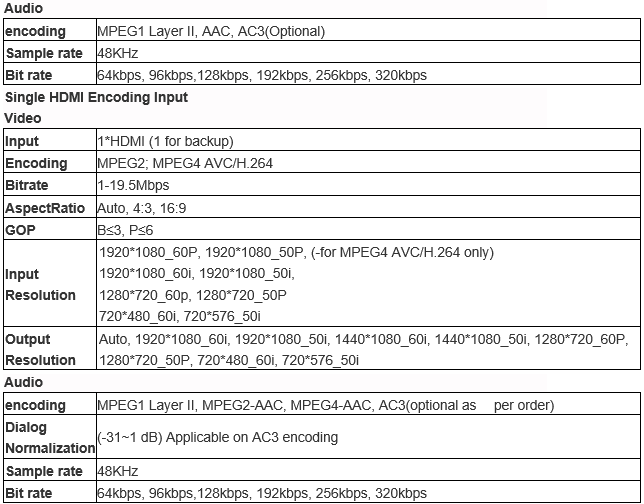

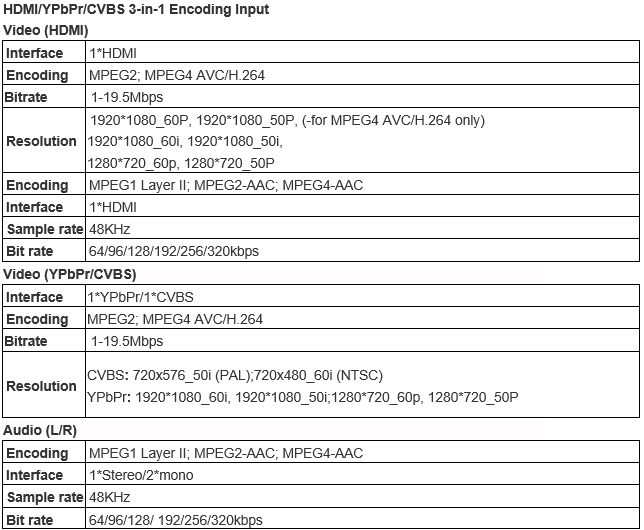

Technical Parameter
