Outline

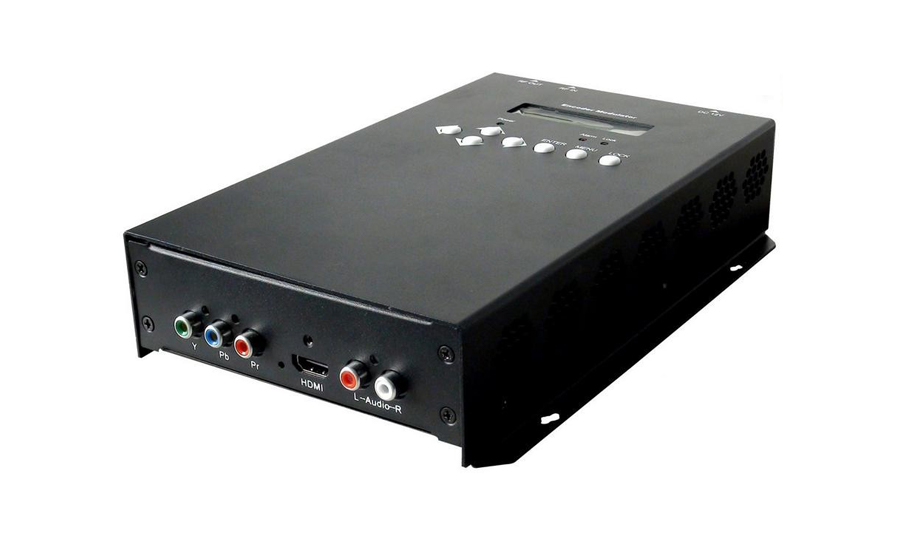

STHM-3350 HD RF modulator is an ideal product for creating your custom CATV channel over existing coaxial cable. Converts one HDMI video source (or 1cvbs, and 1ypbpr as options.) into HDTV channel you can distribute an unlimited number of displays over nearly any distance with its high 45 dBmv RF output. It is an all-in-one device integrating HD MPEG2 or SD MPEG2 with AC3 Dolby audio and MPEG4 AVC H.264 HD/SD encoding and modulating to convert video audio signal to digital RF out in the frequency range of 30~960MHz. The signals source could be from satellite receivers, closed-circuit television cameras, DVB players, an antenna etc.

HDMI to RF modulators support any HD video source with the following video resolutions: 720p, 1080i, and 1080p. It delivers perfect, real-time, video high quality & sound and Dolby audio, ideal for any Live and HDMI distribution applications. The RF modualtor output RF channel is to be received by TVs or set-top boxes etc. It is for TV distribution with applications in home entertainment, hotel Digital Signage, shops, etc.

Key Features

• Support 1 Channel HDMI/YPbPr/CVBS input

• Support 1 DVB-T/DVB-C and ATSC RF out

• MPEG2 and MPEG4 HD/SD video encoding

• Dolby Digital AC3 (2.0) audio encode, AC3 passthrough (for HDMI interface only)

• Record Live HD Video Input to USB TS File

• Loop content from USB drive continuously

• USB storage feature for recording input and playing TS files from any source

• Low Delay

• Easy to install in just a few minutes anywhere, plug-play

• Front panel color display or IP WEB Remote Control

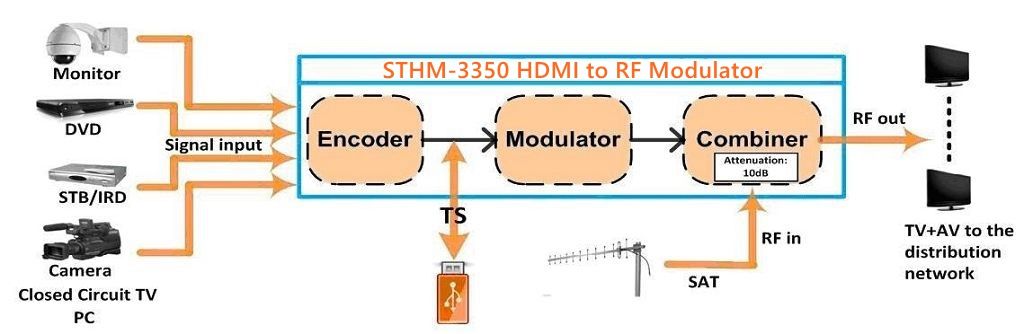

System Connection Chart

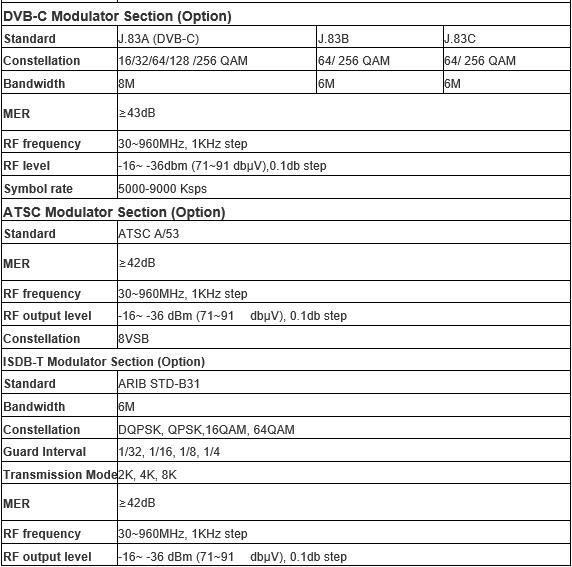

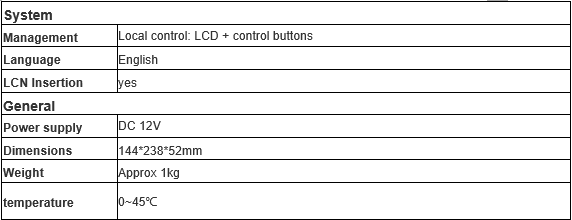

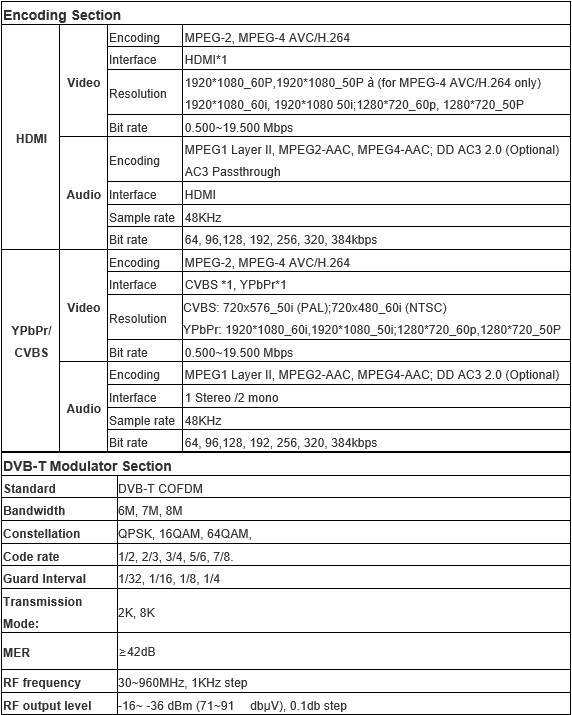

Technical Specifications

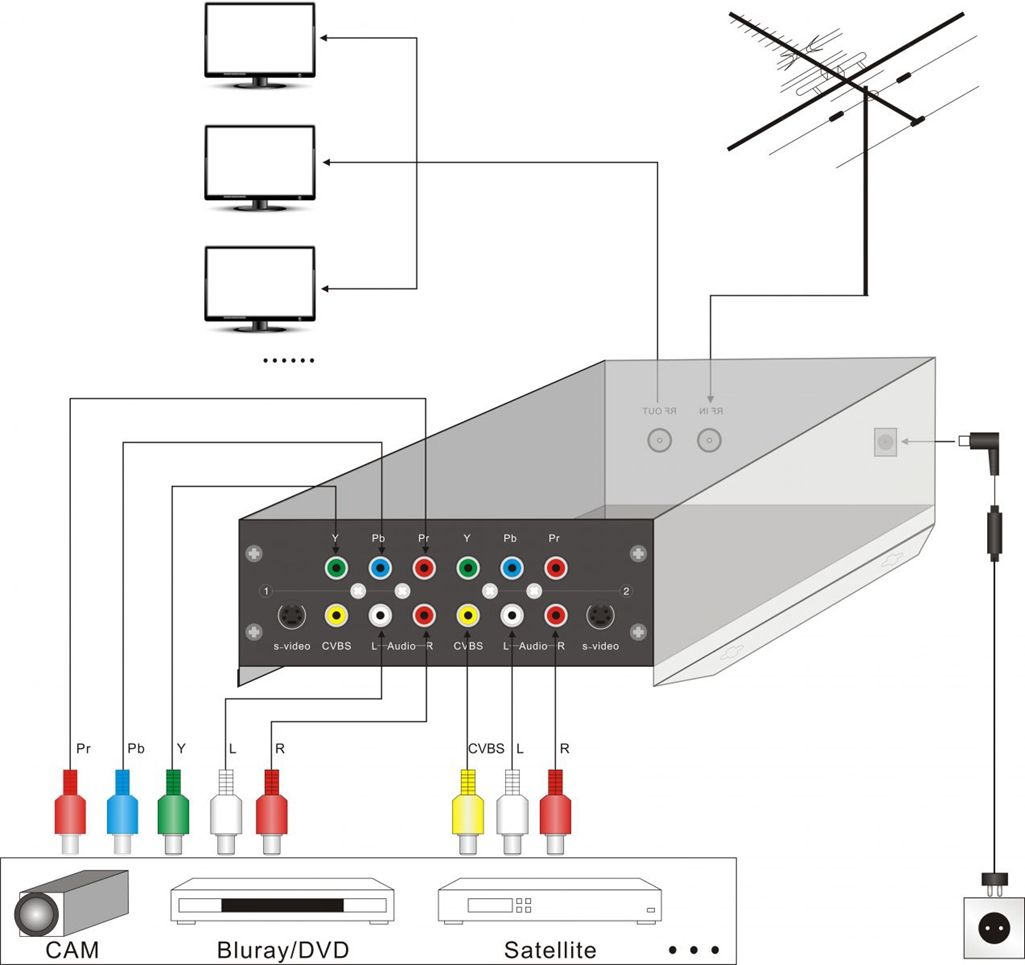

How to install the mini HD modulator?

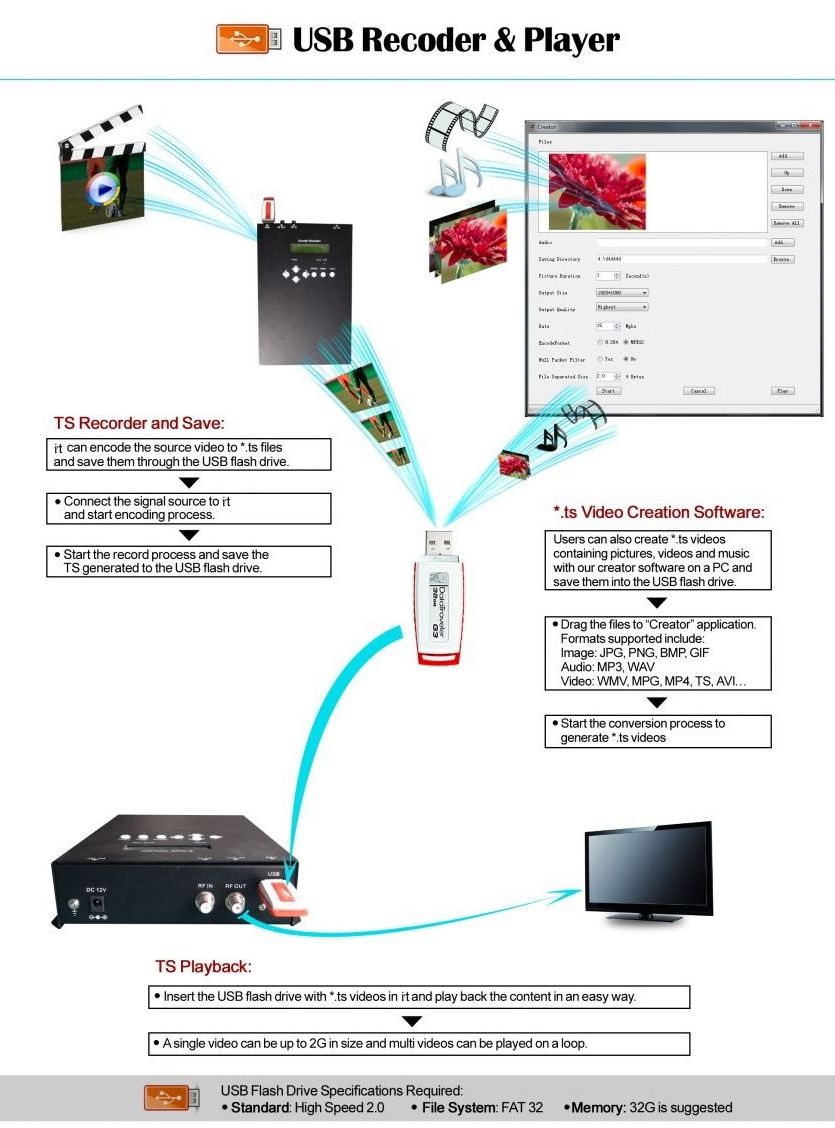

For USB

Devices-Recommend

More Channel HDMI Inputs (4/8/24):	Only need IP/ASI Input to ATSC
