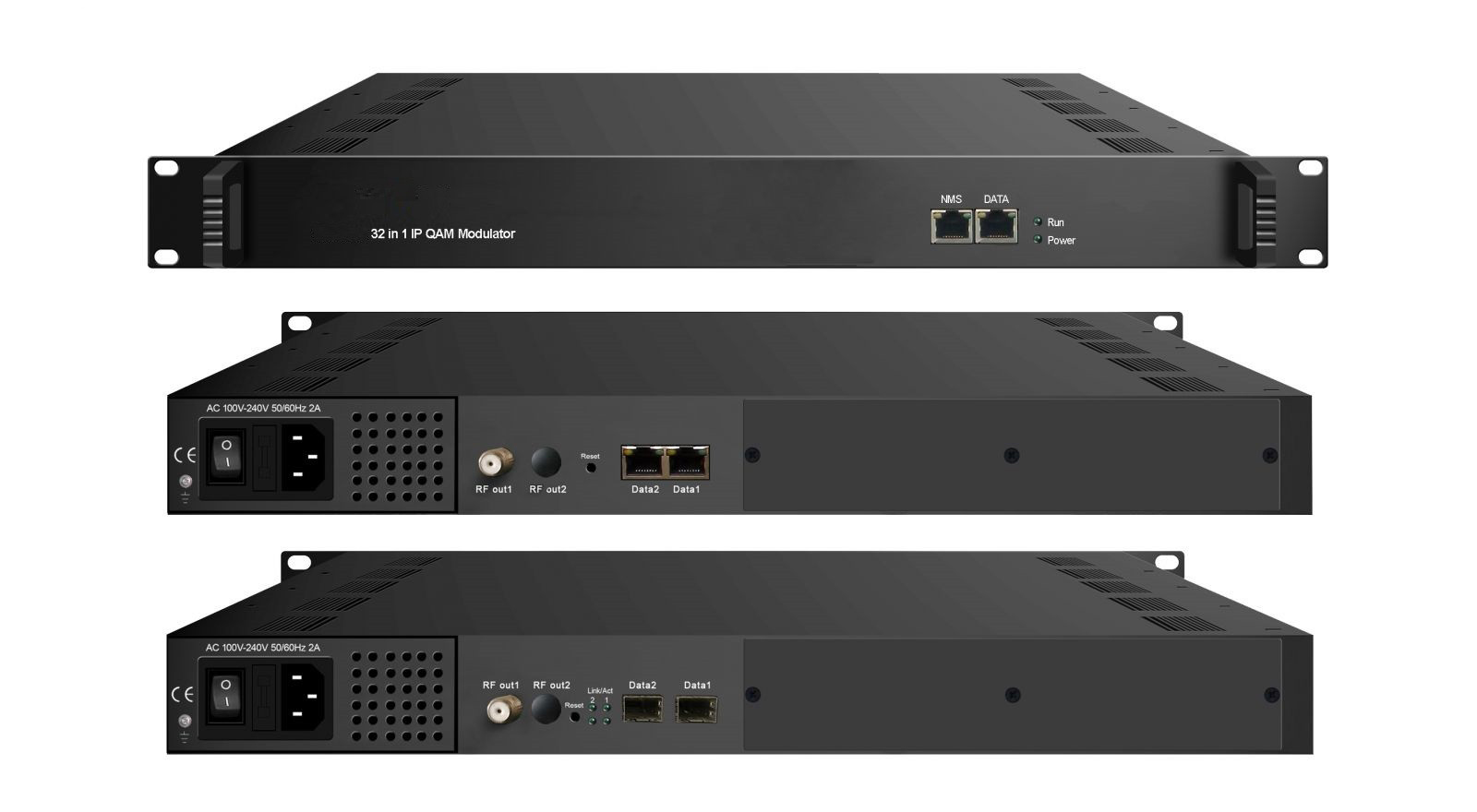

Product ID : STPM-32
Product Attributes :

Input: IP with 3 GE ports (max 1024 IP in)

Output: 32 non-adjacent QAM carriers, 32 IP output

Output Level:50~960MHz, 1kHz stepping

RF Range:50~960MHz

data sheet of qam moduatorDownload Specification of STPM-32

user manual of qam moduatorDownload the User Manual of STPM-32



Product Description

Outline

STPM-32 IP QAM modulator is a cost-effective device that supports 256 IP input through the GE port and 32 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. The QAM modulator is also characterized by a high integrated level, high performance, and low cost. This is very adaptable to the new generation DTV broadcasting system.

Features

*  3 GE ports (max 1024 IP in):

    Data1 & Data2 bi-directional ports, max 512 IP in, 32 IP out

    Data port (located on front panel), max 128 IP in

*  Max 840Mbps for each GE input

*  Supports accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing

*  Supports up to 256 PIDS remapping per channel

*  Support 32 IP output through Data1 & Data2 over UDP/RTP/RTSP

*  32 non-adjacent QAM carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B

*  Supports RS (204,188) encoding

*  Support Web-based Network management

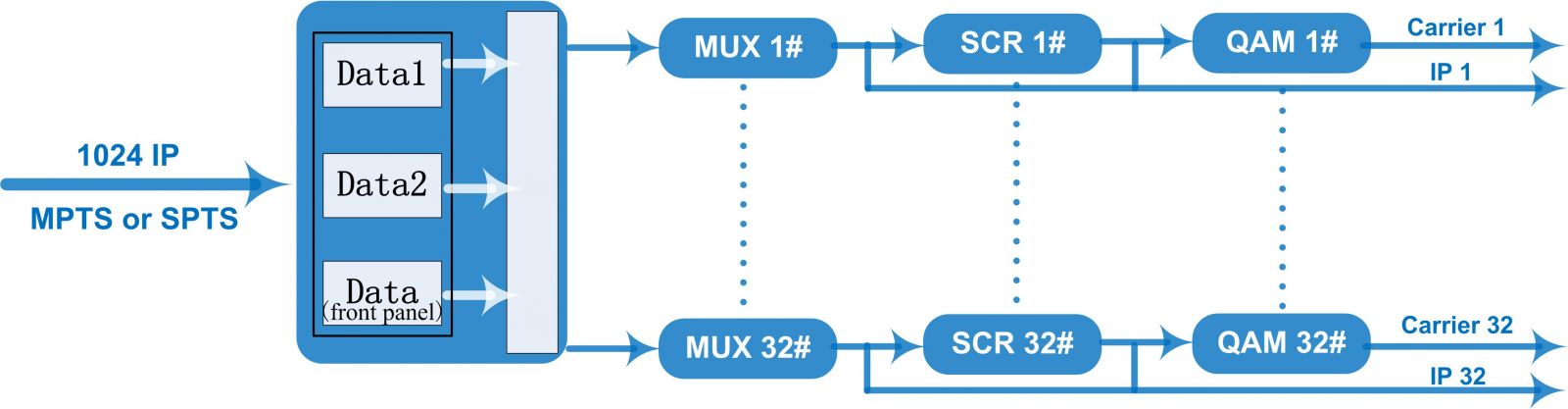

Principle Chart

Principle Chart for best qam moduattor

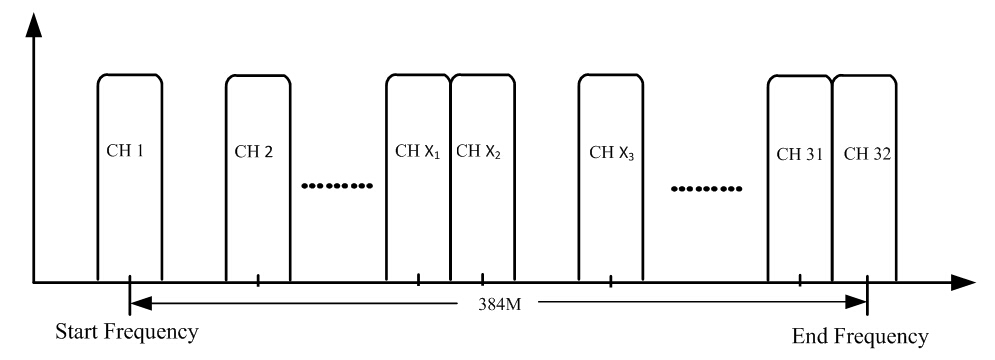

Carrier Setting Illustration

Carrier Setting Illustration for qam modualtor

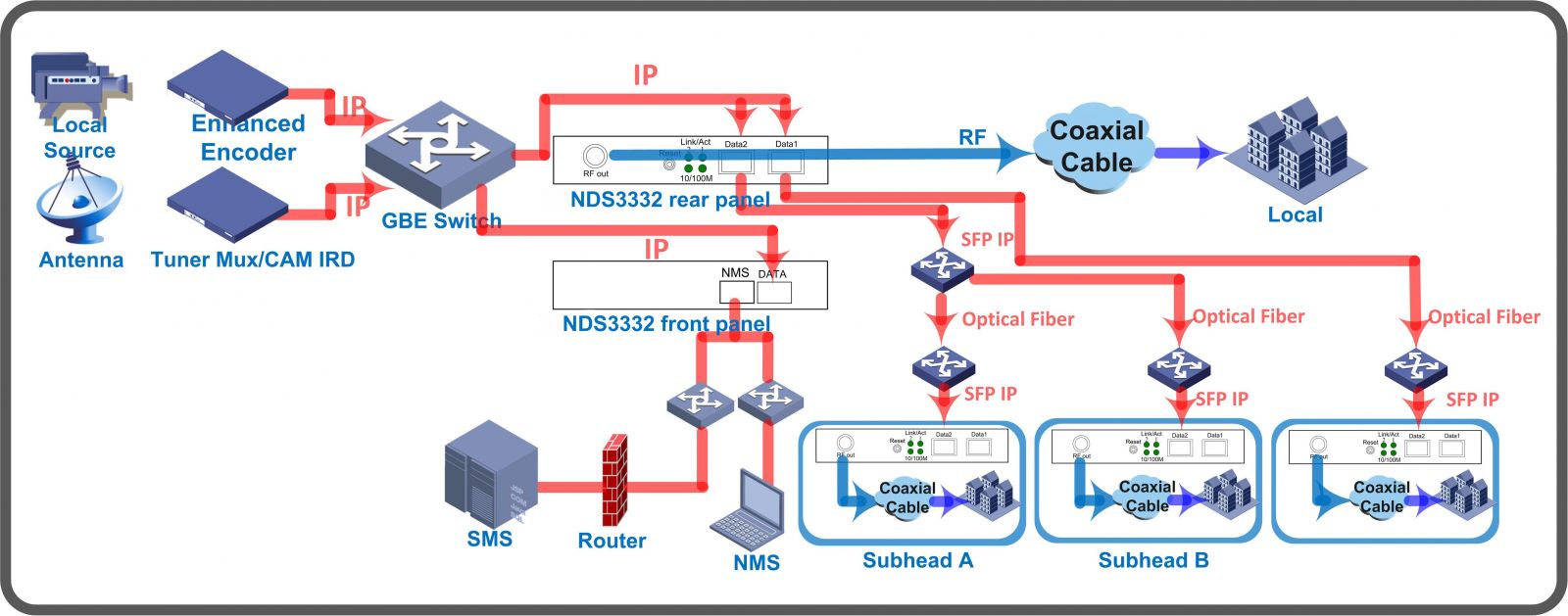

*System Connection Sample (IP Based)

qam moduator connection

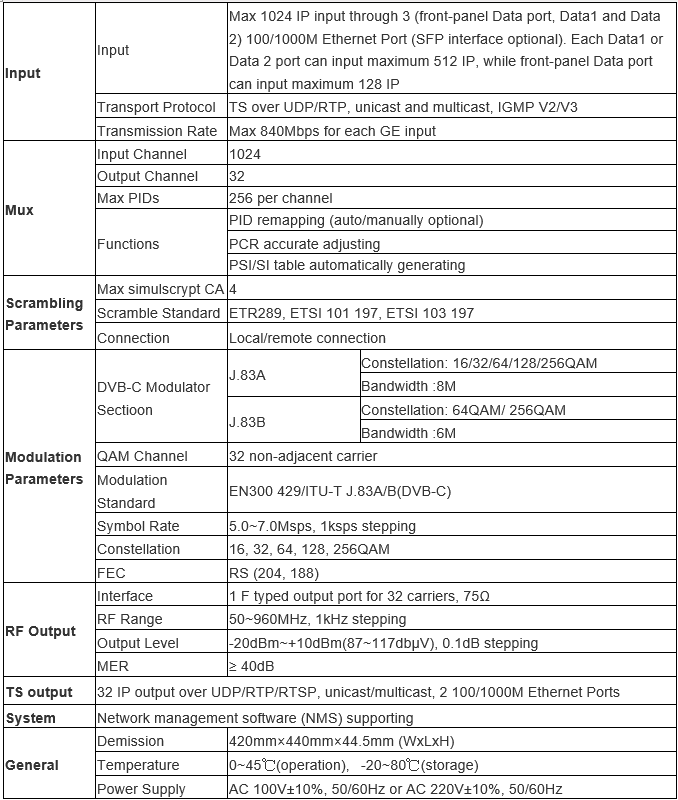

Technical Parameter

 best qam modullador specification

How to select the output bandwidth of one modulator?

Take a client's TV listings as an example:

John told us “RF carrier output needs to be configurable between DVB-C Frequency Range, preferred Frequency Range is 194 ~ 650 MHz.”, and give us his programs table:

frequency programs table

1. From the table, we know we need a frequency range is:586-194=392MHz

2. We know the QAM RF output range is: 50~960MHz, while for one common modulator the max output is 192MHz

qam moduator output range

STPM-32 RF*2 output model is suitable.
