Outline

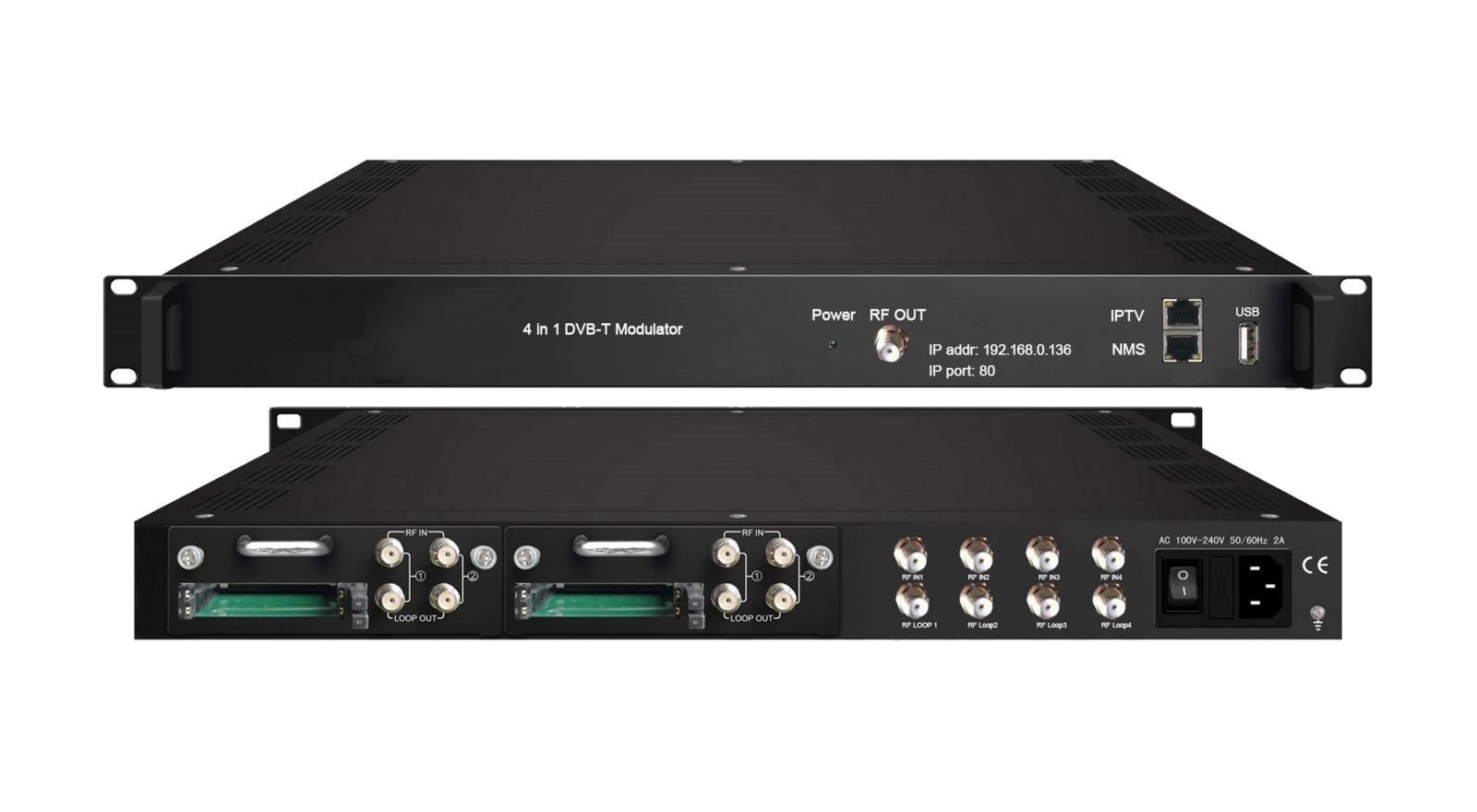

STMQ-8004T 4-in-1 channel RF modulator with CAM is a high-performance and cost-effective DVB-T modulator. This digital rf modullator has 8 tuner inputs. After multiplexing and modulating process, it gives 4 DVB-T non-adjacent carriers output through one RF port. To meet customers’ various requirements, this digital modullator is also equipped with a data port for IP input and output over UDP and RTP. Its pluggable structure design greatly facilitates the change of modules as needed. Moreover, the four CAMs/CIs accompanied and BISS modules can descramble the input programs from 8 Tuners and IP.

It can be upgraded and controlled through a network system, which allows it widely used in digital broadcasting networks and provide good signals for scientific laboratory and DVB-T STB.

Features

 * 4 Tuner (DVB-C/(T)/S/S2 optional) + 4 Tuner with CAM(DVB-C/(T)/S/S2/ATSC optional) input

 *  Demodulation Module (4*RF/Loop out + 4*CAM + 4*Smartcard)

 *  One CAM can decrypt multiple programs from Tuners and IP

 *  Maximum 128 IP input (MPTS/SPTS) over UDP and RTP protocol

 *  4 groups multiplexing +4 groups DVB-T modulating

 *  4 IP (MPTS) output over UDP and RTP protocol

 *  Support BISS descrambling

 *  Support accurate PCR adjusting, PID Remapping, PSI/SI rebuilding and editing, A/V PID filtering

 *  Web-based NMS management

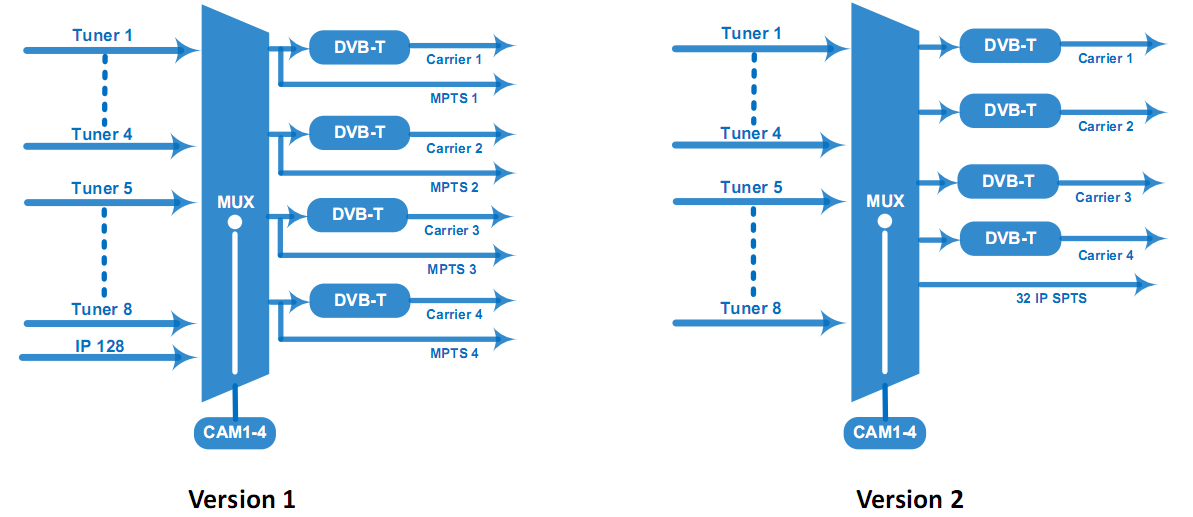

Principle Chart

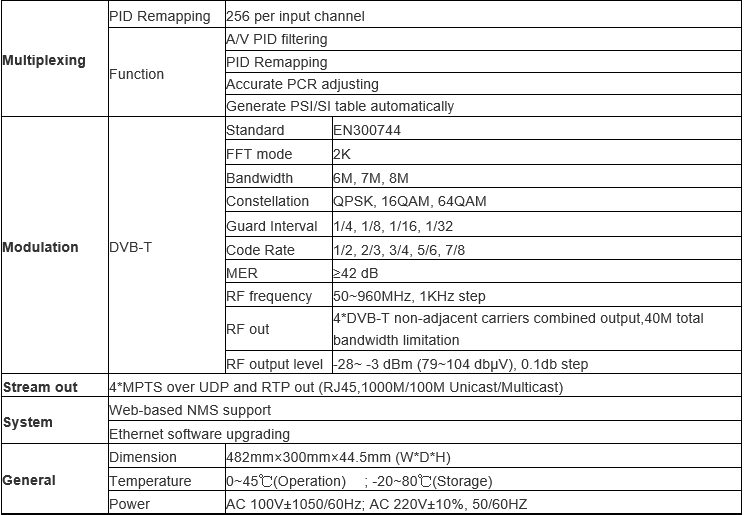

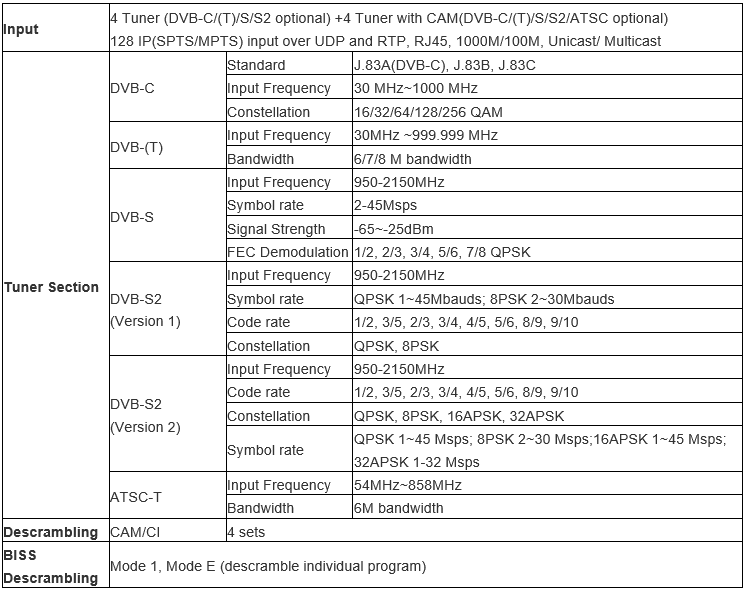

Technical Parameter

Order Guide

Devices-Recommend

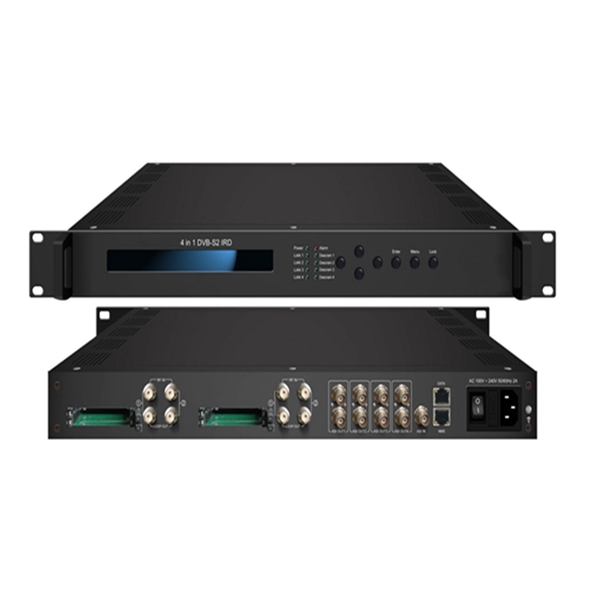

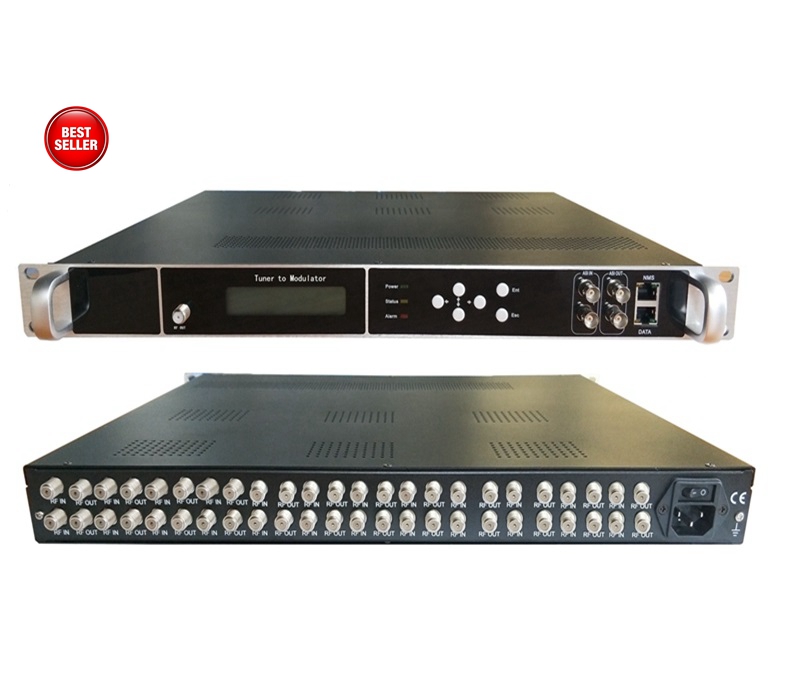

FTA Tuner to Modulator:	Receive Encrypted Satellite Receiver( in stock):
