multi HEVC iptv encoder for streaming
multi HEVC iptv encoder for streaming

multi HEVC iptv encoder for streaming

Product ID : STR-525
Product Attributes :

Input: 4/16/24/32 Channel HDMI input, 4/16/24/32 Channel audio input

Output: 1channel IP output,1network management port,4 streams output

Encoding: H.264/H.265

Support: HTTP,RTSP,RTMP,ONVIF,UDP,HLSmulticast,unicast

Product Description

Product Description:

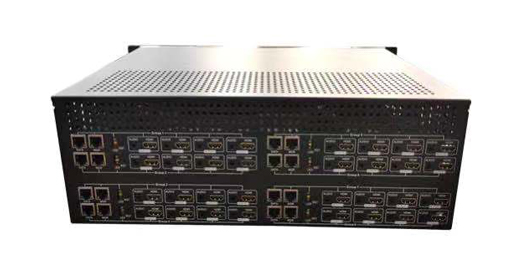

STR-525 HEVC multi stream encoder for streaming can receive 4/16/24/32-channel HD HDMI audio and video source input, 4/16/24/32-channel audio input. The HDMI HEVC encoder is using 3U rack-mountable, It supports up to a max of 32 HDMI as input. The h 265 streaming encoder has dual streams output H.265/H.264 encoding video AVC format, Audio: MP2, MP3, AAC, G.711 format and output high quality IP streaming with HTTP//TCP/RTP/RTSP/RTMP/UDP/ONVIF/HLS transport protocols for optional. The Configuration of the HEVC IPTV encoder could be freely adjusted according to the need. It has dual ethernet port: Management: WAN, Transmission: LAN. Compared with software encoders, the multi stream encoder hardware is more steady and the output stream video is higher quality and real time. It can be sent to live video platforms or social media like Facebook, twitch, Wowza, Vmix, and OBS…through internet connection, LAN

Features:

1.Resolution:1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i (Customizable)

2. Support RTSP/TCP/RTMP/HTTP/ONVIF/UDPunicastandmulticastprotocol

3. Support the Main TS stream and the sub-TS stream using indifferent network protocols for transmission

4.Encoding level:1,2,3,4and5(higher the level,larger of the code flow fluctuation ratio)

5. Coding Standard: Baseline profile/main profile/high profile, H.265main profile.

6. Audio: MP2, MP3, AAC, G.711, sampling rate:32000,44100,48000etc, encoded audio bit rate:48K,64K,96K,128K,160K,192K,256K

7. Video bit rate Control: CBR/VBR16KBIT/S~12MBIT/S

8. Video packaging: FFMPEG

9. Transmission: TCP, UDP,100M for configuration/1000M for transmission

10.(RJ45 Duplex network port)

11. Support WEB access in Chinese/English, passwords change, WAN remote

management(WEB)

12. Support Text/image OSD, and image superimposing.

13. Supports automatically obtaining IP(DHCP), supports One-key recovery, upgrades, and remote maintenance.

14. Support build-in or external audio input, support left and right sound channels,

Support audio gain, and turn the volume individually.

15. Support encoding without video signal;

16. Take effect immediately when applied the settings, don't need to restart.

17. Support one-key recovery to default setting.

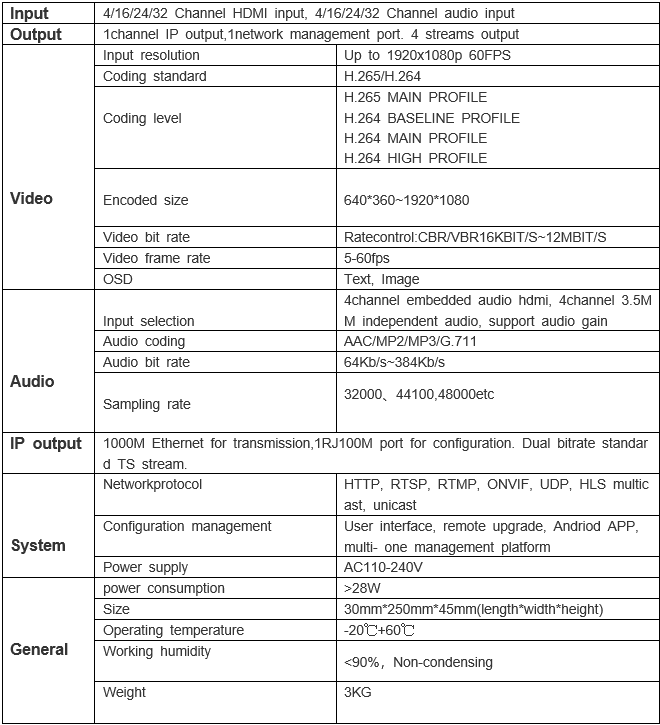

Technical Parameter

data sheet for encoder for streaming
