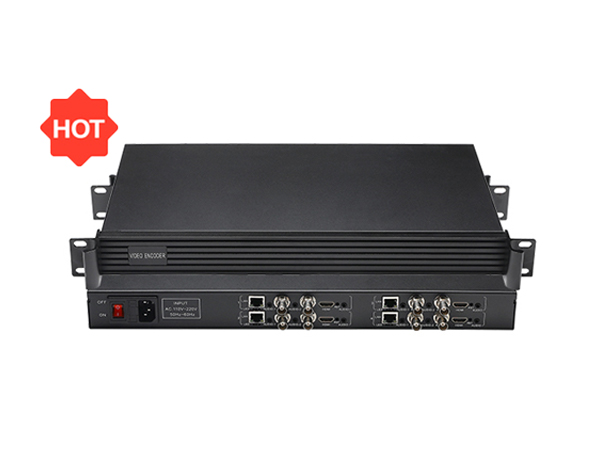

4HDMI+8CVBS IP Streaming Encoder
4HDMI+8CVBS IP Streaming Encoder

4HDMI+8CVBS IP Streaming Encoder

Product ID : STR-2048
Product Attributes :

Input: 4HDMI, 8CVBS& Audio
Output: 4 IP Support RTSP / RTMP / HTTP / UDP unicast, multicast and other protocols

Encoding: H.264

Product Description


STR-2048 4 channels HDMI + 8 channels SD CVBS IP streaming encoder is a professional HD audio and video encoding hardware. This h264 streaming encoder supports full HD 4 channels HDMI audio and video input, 8 channels SD CVBS video, 12 3.5MM independent audio interface acquisition function, encoding output dual streams H.264 format, and audio MP3 / AAC format.

The h.264 encoding bit rate is adjustable and the picture quality can be controlled. The output IPTV streaming supports RTMP HTTP, UDP RTP, RTSP / RTMP, and other protocol transmissions. It is easy to use, there are no hardware compatibility issues. In conclusion, the video encoder is highly integrated and cost-effective in design making the device widely used in varieties of scenarios such as IPTV systems, live streaming platforms, like Youtube, Wowza, Vmix, and OBS; social media, like Facebook,  twitch...

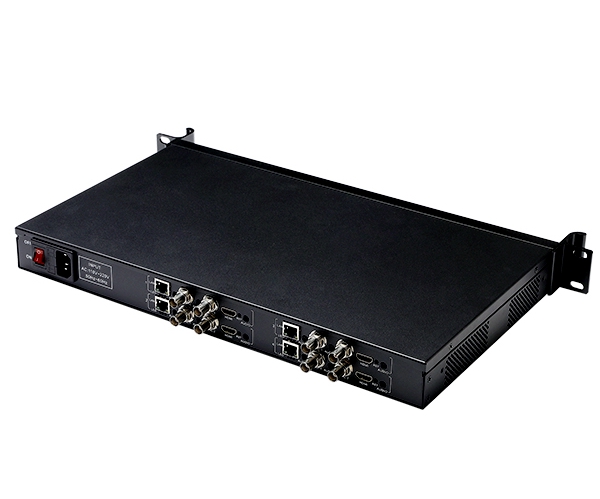

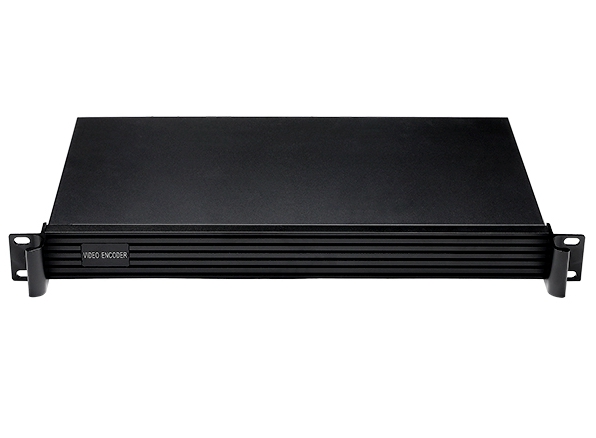

ip streaming encoder .jpghd iptv encoder .jpg

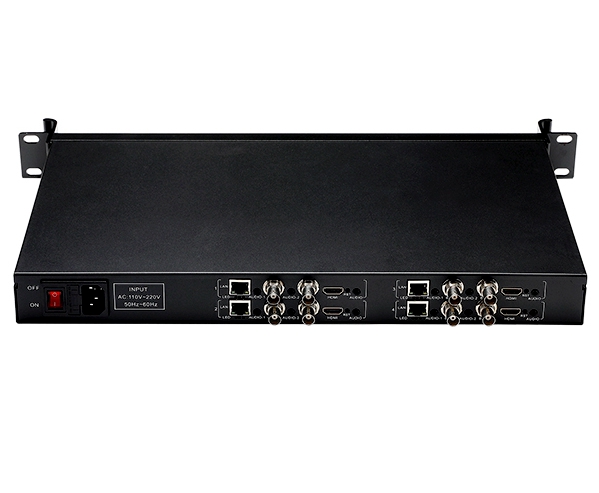

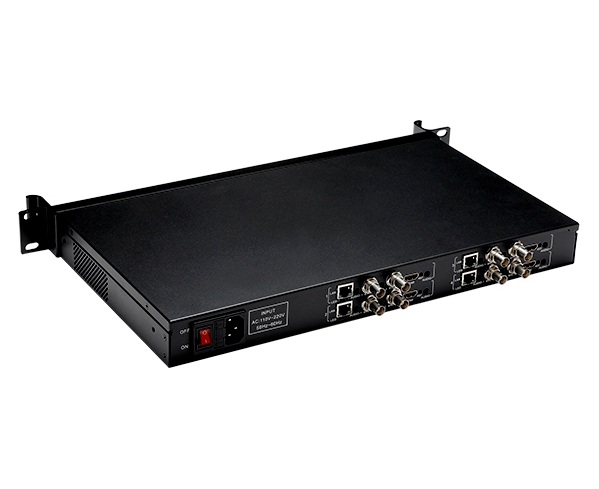

h264 streaming encoder picture.jpghd iptv encoder picture.jpg


◆Embedded hardware coding
◆The resolution supports 1920x1080p / 1920x1080i / 1280x720p / 720 * 576i / 720 * 576p / 640 * 480i and other conventional resolutions (can be customized)
◆Support for multiple displays on one computer at the same time
◆ Supports direct network connection without using HD capture card
◆ Network interface adopts 1000M full duplex mode
◆ 4-channel HDMI input, 8-channel cvbs input, 12-channel 3.5MM independent audio interface input, support SDI / VGA / CVBS to HDMI input, support audio gain
◆ Support high-definition video input up to 720P, 1080P
◆ Support RTSP / RTMP / HTTP / UDP unicast, multicast and other protocols (RTMP supports adding users and passwords), DHCP protocol, ONVIF protocol, and Blu-ray HD
◆ Compatible with streaming media servers such as Wowza / FMS / RED5, and cooperate with streaming media server to push DC to achieve live video
◆ Supports multi-protocol and multi-stream functions such as primary and secondary. The primary and secondary streams can be transmitted using different network protocols.
◆ Bit rate control CBR / VBR 16KBIT / S ~ 12MBIT / S
◆ Video packing method: FFMPEG / VLC
◆ Support stream resolution custom output settings
◆ Transmission method: TCP, UDP, 1000M (RJ45 duplex network port)
◆ Support code stream to add watermark function (OSD), XY axis, font can be set
◆ Support WEB Chinese and English webpage access, change password, support WAN remote management (WEB)
◆ Support DHCP to obtain IP automatically, support one-click restore, version upgrade and remote maintenance.
◆ Support both built-in and external ways, support left and right channels.
◆ Support one-click to restore default configuration
◆ Low power consumption design, support set-top box decoding

Technical Parameter

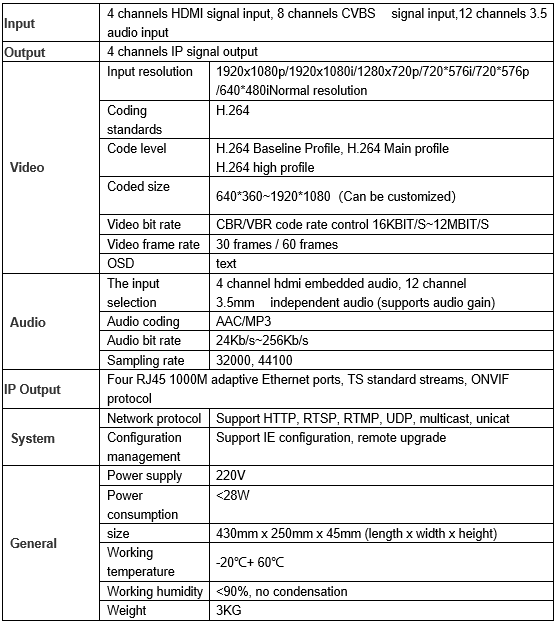

data sheet for ip streaming encoder

Or If you need More HDMI inputs or Higher Resolution:

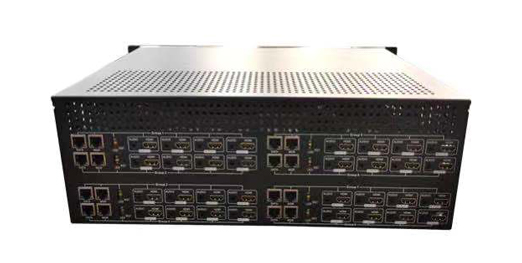

16/24/32 HDMI Inputs:Compare with 4k-60p encoder:
