Product ID : STR-538
Product Attributes :

Input: 8HDMI & 8 audio input

Dual Output: 2channel IP output, 2 network management ports. 8 streams out

Encoding: H.264

Product Description

Product Overview

STR-538 HDMI encoder IPTV is a professional high-definition audio and video encoding product. It supports  8-channel HD HDMI input, 8-channel audio input, and output dual streams with H.264 AVC format, Audio: MP3, AAC, G.711 format.

The IPTV encoder also has dual ethernet ports: a data port- WAN, and a network management port- LAN. The encoding bit rate of HDMI video encoders is adjustable, and the picture quality from HDMI signal video sources can be controlled.

The hardware encoder streaming protocols include HTTP / RTSP / RTP / RTMP / UDP and other protocol transmissions. we can get video streaming from it, like live streaming& RTMP streaming, and widely used in IP networks and the internet.

The HDMI over IP encoder is easy to use, there are no hardware compatibility issues.

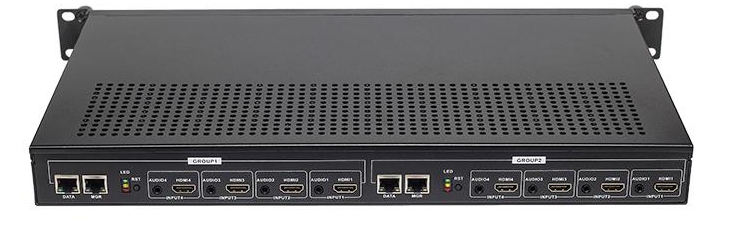

hdmi encoder iptv photo.jpg

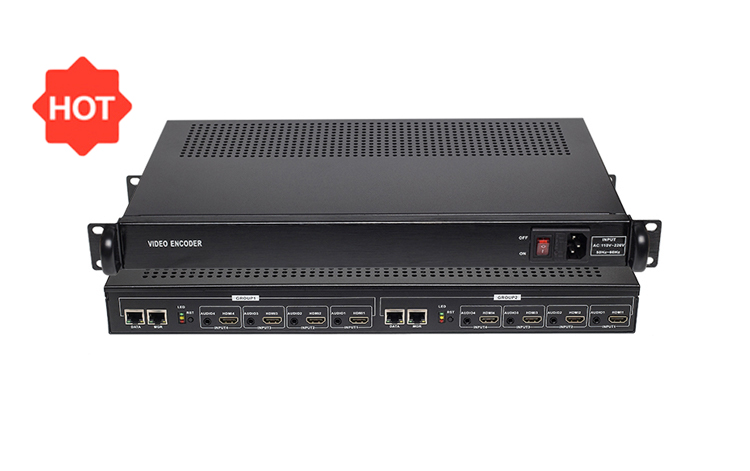

rtmp encoder photo.jpg

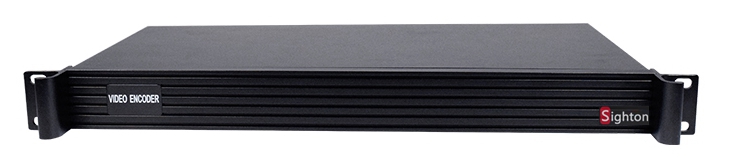

rtsp encoder photo.jpg

Key Features

1. Resolution:1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i (customization available)

2. Support RTSP/ TCP/ RTMP/ HTTP/ ONVIF/ UDP/HLS unicast and multicast protocol

3. Support the Main TS stream and the sub-TS stream  use in different network protocols for transmission

4. Encoding level: 1, 2, 3, 4, and 5 (the higher the level, the larger of the code flow fluctuation ratio )

5. Coding Standard: Baseline profile/ main profile/high profile,.Audio: MP3, AAC, G.711, sampling rate: 32000,44100,48000 etc, encoded audio bit rate: 48K,64K, 96K, 128K, 160K, 192K, 256K

6. Video bitrate Control: CBR / VBR 16KBIT / S ~ 12MBIT / S

7. Video packaging: FFMPEG

8. Transmission: TCP, UDP, 100M for configuration/ 1000M for transmission(RJ45 Duplex network port)

9. Support WEB access in Chinese/ English, passwords change, WAN remote management (WEB)

10. Support Text/ image OSD, and image superimposing.

11. Supports automatically obtaining IP (DHCP), supports One-key recovery, upgrade, and remote maintenance.

12. Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.

13. Support encoding without video signal;

14. Take effect immediately when applied the settings, don’t need to restart.

15. Support one-key recovery to default setting.

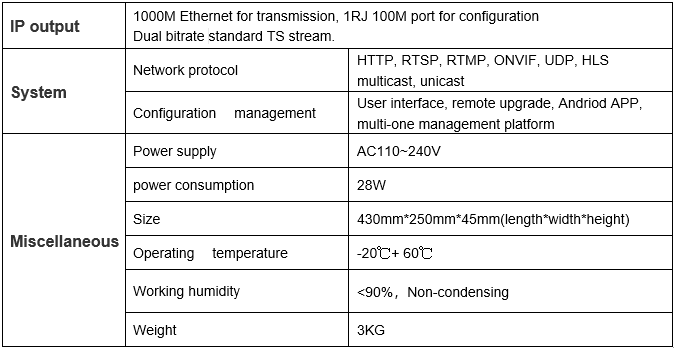

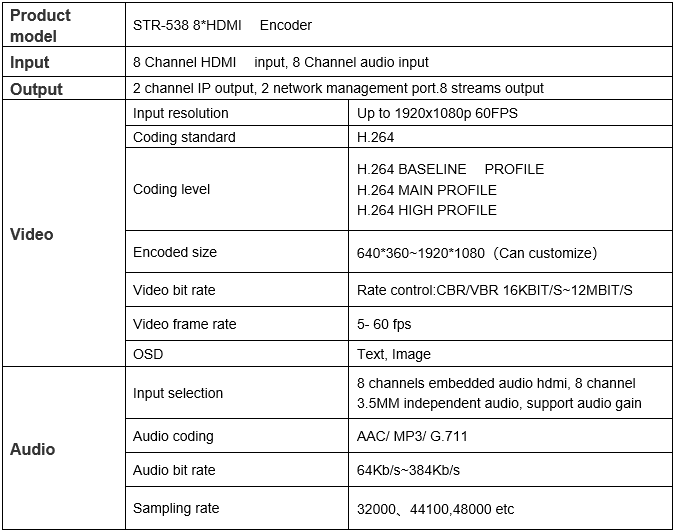

Technical Parameter of Rtmp encoder

 system function of hdmi encoder iptv


If you need ASI as output:Higher Resolution 4k-60p encoder:

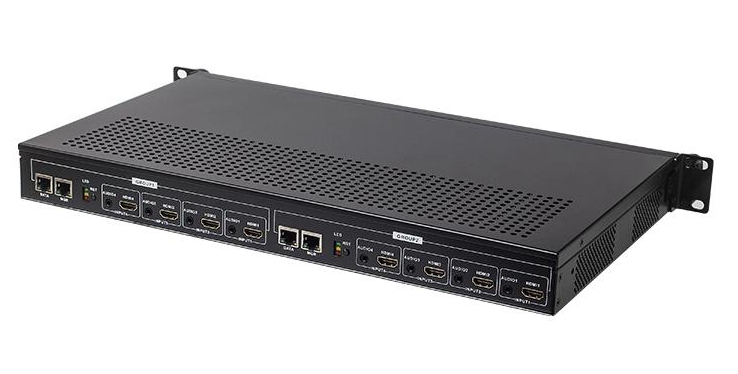

Hdmi over ip encoder.jpg
