IP input: CH 1-7(1000M) over HTTP, UDP(SPTS), RTP(SPTS), RTSP and HLS
IP out: CH 1-7(1000M) over HTTP/ HLS/RTMP (Unicast)
Download the User Manual of the 7100F IP TVServer

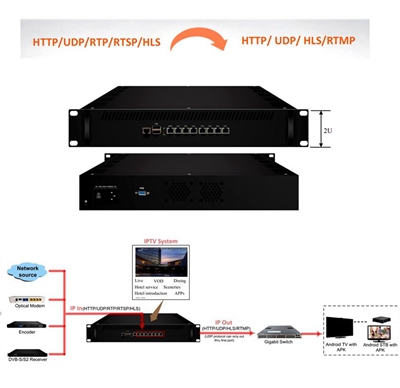

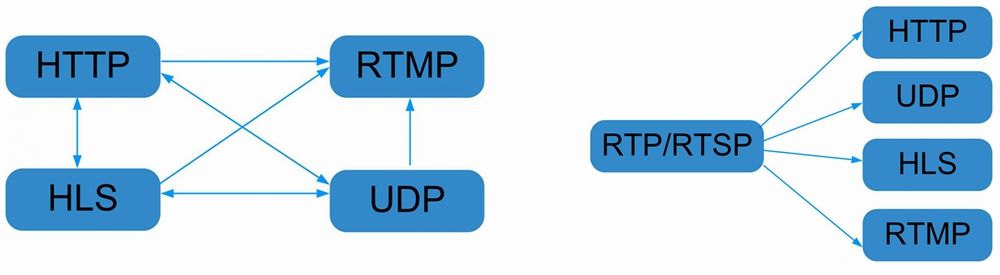

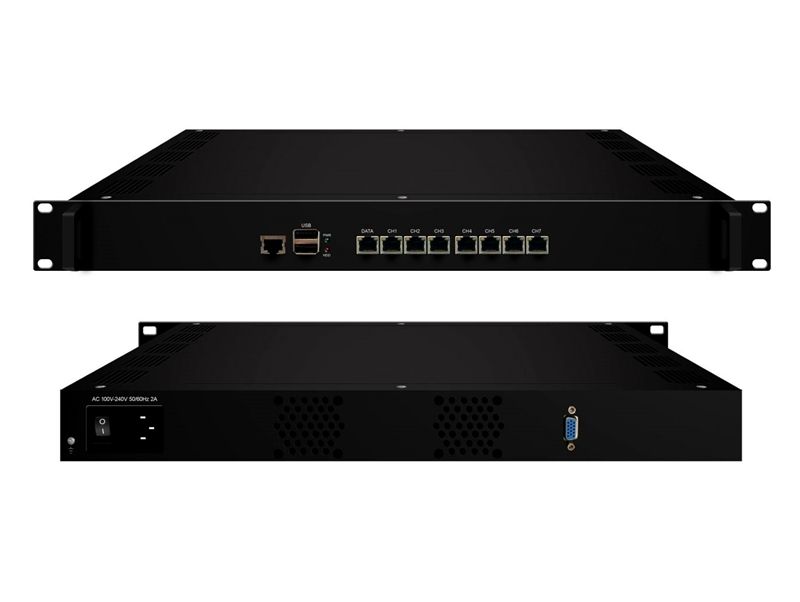

STGI-7100F live streaming server (for simple IPTV projects) is a device that is used for protocol conversion scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over HTTP, UDP, RTP, RTSP and HLS and TS file into HTTP, UDP, HLS, and RTMP protocols. The system can achieve integration by receiving a variety of commercial streaming media services. Also, the system can provide streaming media services directly.
8 Data ports:
First Data port: IP out over HTTP, UDP (SPTS), HLS, and RTMP
Data CH1-7 ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS
IP out over HTTP, HLS, and RTMP (Unicast)
Support TS files uploading through Web management
Support IP anti- jitter function
Support adding scrolling caption, welcome words, boot image, and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed IPTV APK)
Support downloading IPTV APK directly from this device
Support about 80 HD/SD programs (Bitrate: 2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), the actual application shall prevail, and suggest maximum 80% CPU utilization
Support program playing with APK downloaded android STB and TV, maximum 150 terminals
Control via web-based NMS management through DATA port

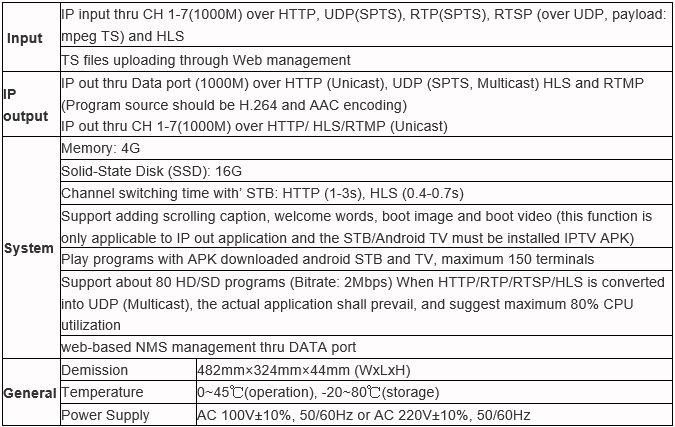

Technical Specifications

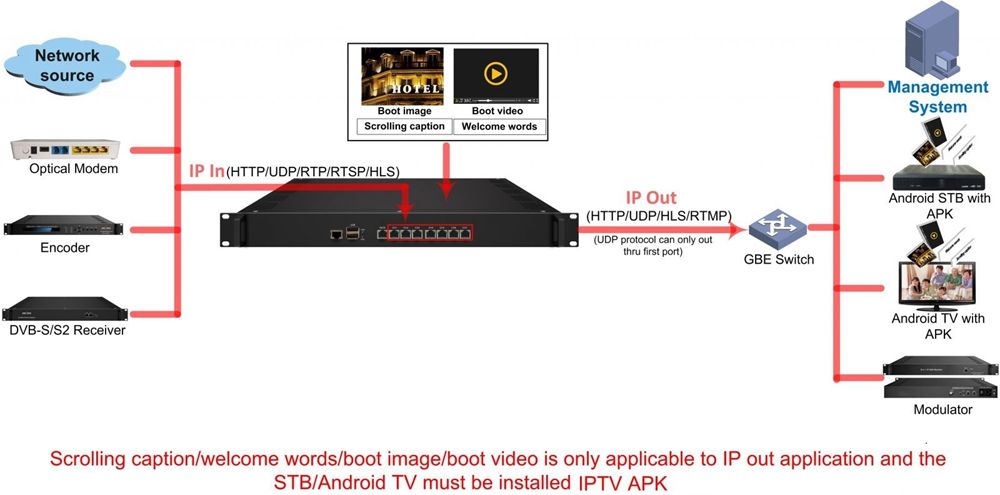

Application
IPTV Servers-Recommend
Terminals more than 500pcs, for example 10 000STB project | For an IPTV project of more than 100pcs Terminal |
