H265 4K Encoder(Max to 2160_60P)
H265 4K Encoder(Max to 2160_60P)

H265 4K Encoder(Max to 2160_60P)

Product ID : STHD-4515C
Product Attributes :

Input: 2× HDMI

Output: SPTS and 1 MPTS output

Max Resolution: 3840×2160_60P 4K

HEVC/H.265, MPEG4 AVC/H.264 video encoding format

data sheet for h265 encoder.jpgDownload Specification of STHD-4515C

Product Description

Outline

STHD-4515C is the newest professional 4K Encoder. It is equipped with two HDMI (2.0) channel UHD signal input (hot redundancy) supporting H.265/HEVC and H.264/AVC video encoding format and MPEG1 Layer 2, LC-AAC audio encoding and DD AC3 passthrough audio encoding. It can output 1 encoded TS through 4 ASI output ports and 4 MPTS output through the GE output port.

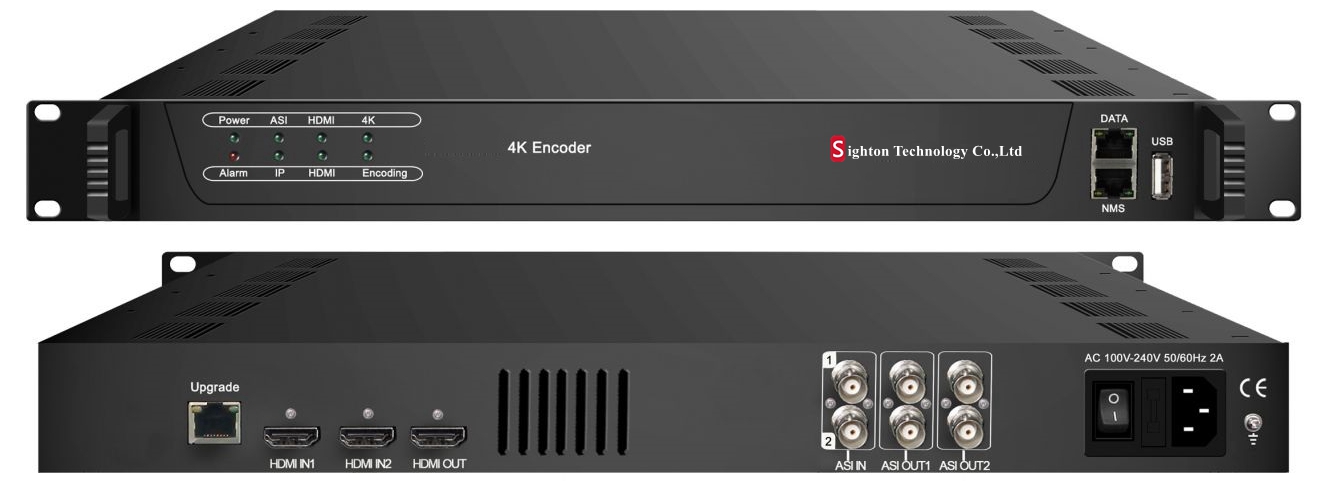

4k h265 video encoder photo.jpg

Features

  • Support 2 HDMI 2.0 input (hot redundancy) and 1 HDMI 2.0 (Loop out) output

    (1080P and 4K convert to each other)

  • Support H.265/HEVC and H.264/AVC video encoding

  • Support Logo, Caption, QR code insertion

  • Support CBR video bitrate mode

  • Support MPEG1 Layer 2, LC-AAC audio encoding

  • Support IP (1000M/100M) Output 1 MPTS over UDP and RTP; IP null packet filter

  • Support 1 TS output through 4 ASI output ports

  • Real-time output bit-rate monitoring

  • Update the device through web web-based NMS port

  • Support LCD / keyboard operating(optional), and network management (web)

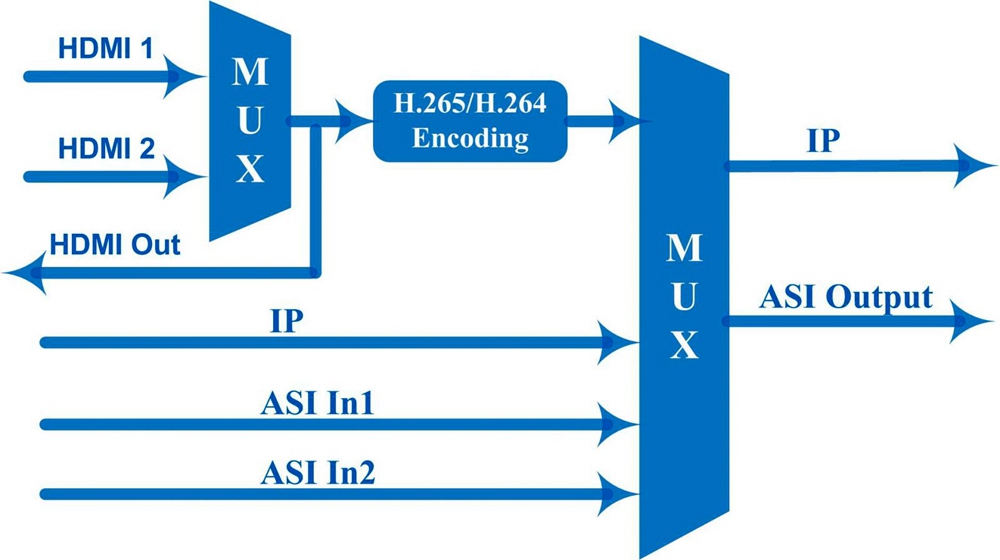

principle chart of video encoder h265 .jpg

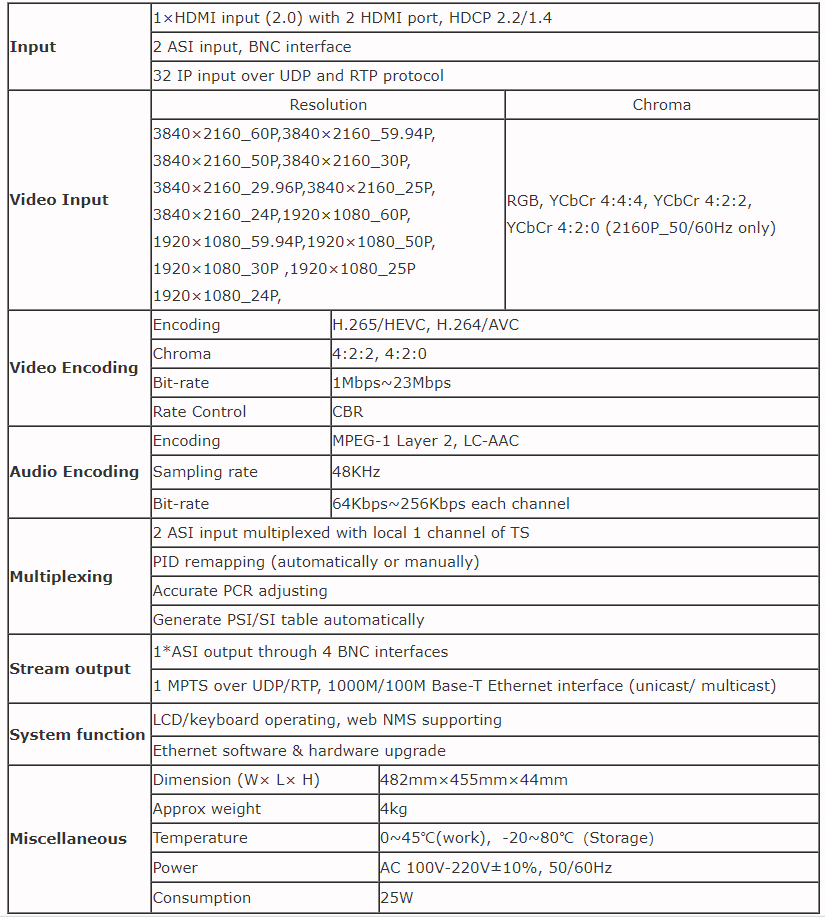

Technical Parameter

Data sheet of h265 encoder.png

Devices-Recommend

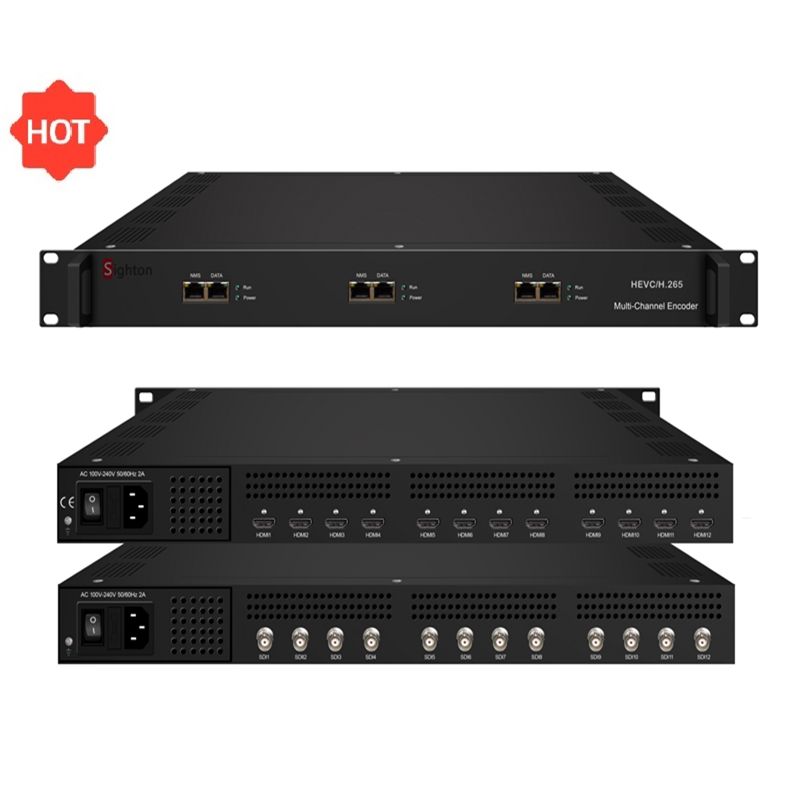

H.264 only with more cost-effective:4/8/12*HDMI or SDI 4K H265 Encoder:


h264 encoder.jpg

multi sdi hevc encoder.jpg


If you want to know more, click here to read blog:

"H.264 Encoder Vs H.265 Encoder"

What is video encoding h.264? & how does h264 encoding work?

What is video encoding h.265? & what are the best quality settings for H.265 Encoder?
